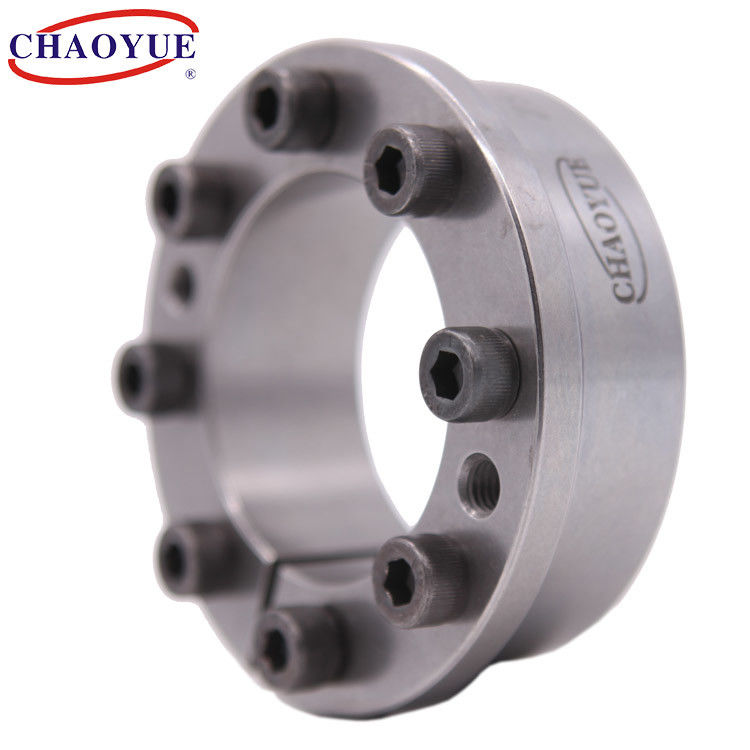

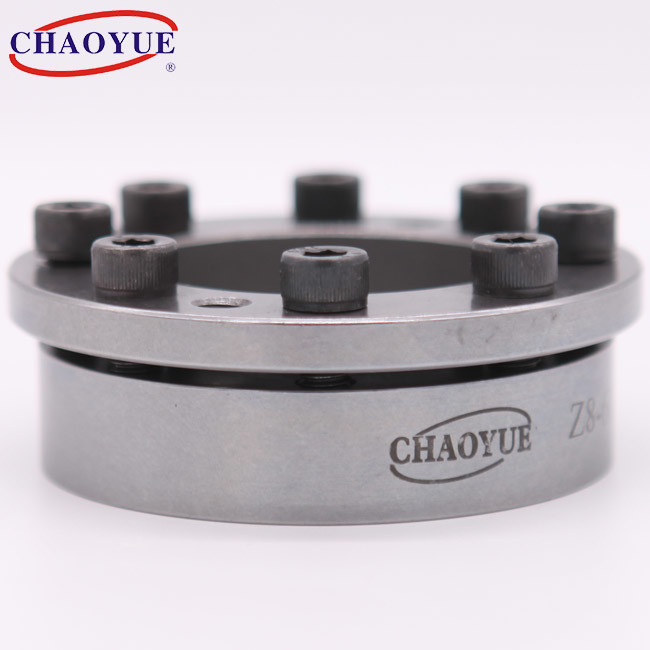

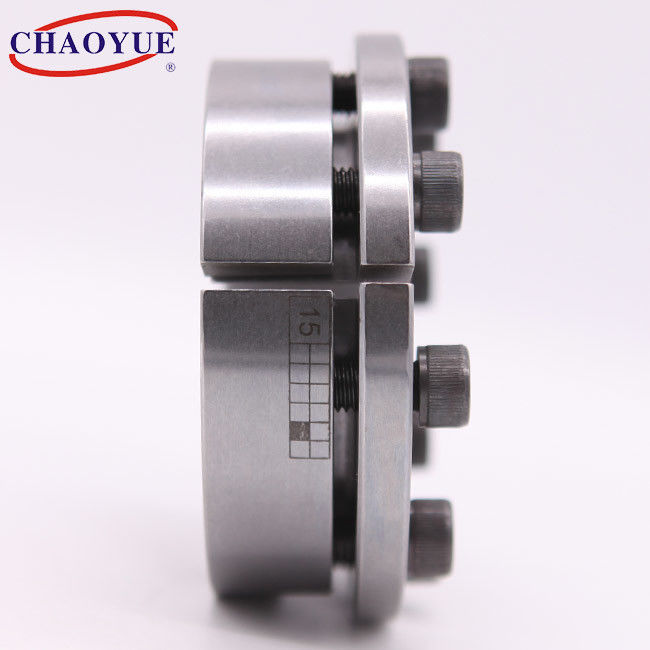

Z8 Shaft Clamping Element Rigid Shrink Discs Power Lock For Machinery



Rigid Shrink Thickness 34mm M6 Bolt Shaft Locking Devices For Machinery 0





Mounting Example



Rigid Shrink Thickness 34mm M6 Bolt Shaft Locking Devices For Machinery 1



Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
N/mm2		 Pressure on Hub
N/mm2		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 L3 d1 n Axial Force
[kN]		 Toruqe
[kN.m]
20 47 34 28 22 17 M6 5 30 0.29 220 95 17 0.28
22 47 34 28 22 17 M6 5 30 0.32 200 95 17 0.28
24 50 34 28 22 17 M6 5 30 0.37 200 95 17 0.3
25 50 34 28 22 17 M6 6 36 0.45 215 110 17 0.3
28 55 34 28 22 17 M6 6 36 0.5 200 100 17 0.35
30 55 34 28 22 17 M6 6 36 0.54 190 100 17 0.35
32 60 34 28 22 17 M6 8 48 0.77 215 115 17 0.4
35 60 34 28 22 17 M6 8 48 0.84 190 110 17 0.39
38 65 34 28 22 17 M6 8 48 0.91 195 115 17 0.43
40 65 34 28 22 17 M6 8 48 0.96 190 105 17 0.45
45 75 41 33 25 20 M8 7 77 1.75 230 135 41 0.7
50 80 41 33 25 20 M8 7 77 1.93 210 130 41 0.8
55 85 41 33 25 20 M8 8 88 2.45 215 135 41 0.85
60 90 41 33 25 20 M8 8 88 2.7 190 125 41 0.9
65 95 41 33 25 20 M8 9 100 3.25 200 135 41 0.96
70 110 50 40 30 24 M10 8 141 5 220 140 83 1.33
75 115 50 40 30 24 M10 8 141 5.25 200 130 83 1.4
80 120 50 40 30 24 M10 8 141 5.6 190 125 83 1.48
85 125 50 40 30 24 M10 9 159 6.75 200 135 83 1.55
90 130 50 40 30 24 M10 9 159 7.1 190 130 83 1.63
95 135 50 40 30 24 M10 10 176 8.35 200 140 83 1.7
100 145 56 44 32 26 M12 8 205 10.3 210 145 145 2.6
110 155 56 44 32 26 M12 8 205 11.25 190 135 145 2.8
120 165 56 44 32 26 M12 9 231 13.9 210 145 145 3
130 180 64 52 40 34 M12 12 308 20 190 140 145 4.6
140 190 68 54 40 34 M14 9 317 22.25 180 130 230 4.9
150 200 68 54 40 34 M14 10 352 26.3 190 140 230 5.2
160 210 68 54 40 34 M14 11 287 31 190 145 230 5.5
170 225 78 64 50 44 M14 12 422 35.9 150 115 230 7.75
180 235 78 64 50 44 M14 12 422 38 145 110 230 8.15
190 250 78 64 50 44 M14 15 528 50.1 170 130 230 9.5
200 260 78 64 50 44 M14 15 528 52.8 160 125 230 9.9
220 285 88 72 56 50 M16 12 587 64.5 145 110 355 13.4
240 305 88 72 56 50 16 15 734 88 165 130 355 14.3
260 325 88 72 56 50 M16 18 880 114 180 145 355 15.5
280 355 105 84 66 60 M18 16 948 132 150 120 485 22.9
300 375 102 84 66 60 M18 18 1059 159 160 125 485 24.4
320 405 121 101 81 74 M20 18 1374 220 150 120 690 36.1
340 425 121 101 81 74 M20 21 1603 272.5 175 135 690 38.4
360 455 138 116 94 86 M22 18 1710 308 140 110 930 46.2
380 475 138 116 94 86 M22 21 1995 379 155 125 930 55
400 495 138 116 94 86 M22 21 1995 399 150 120 930 61
