Home ProductsOne Way Roller ClutchFreewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch

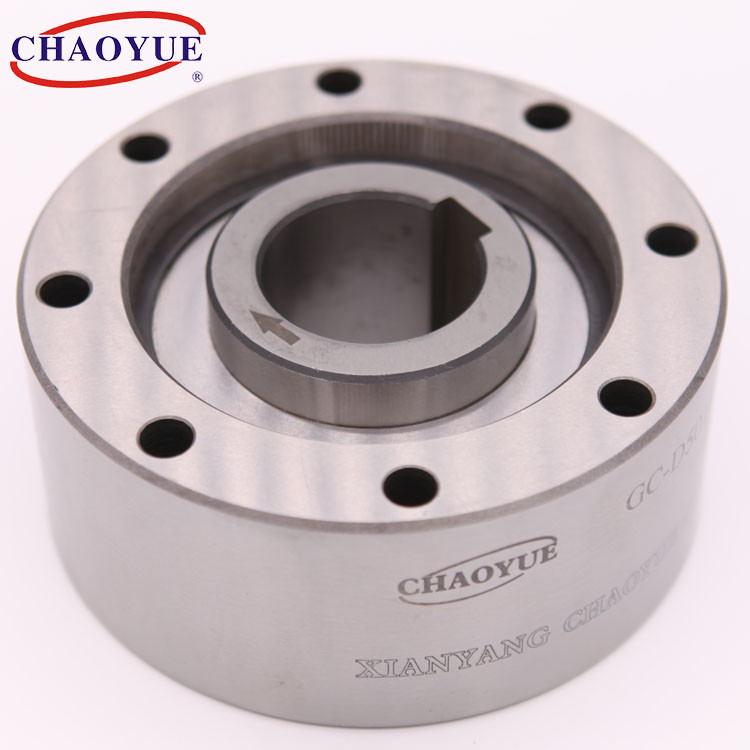

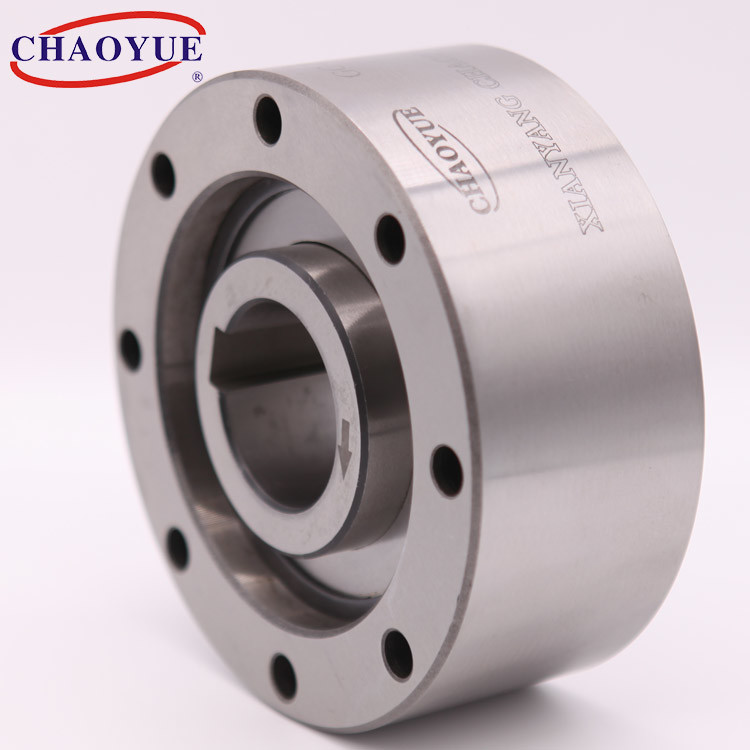

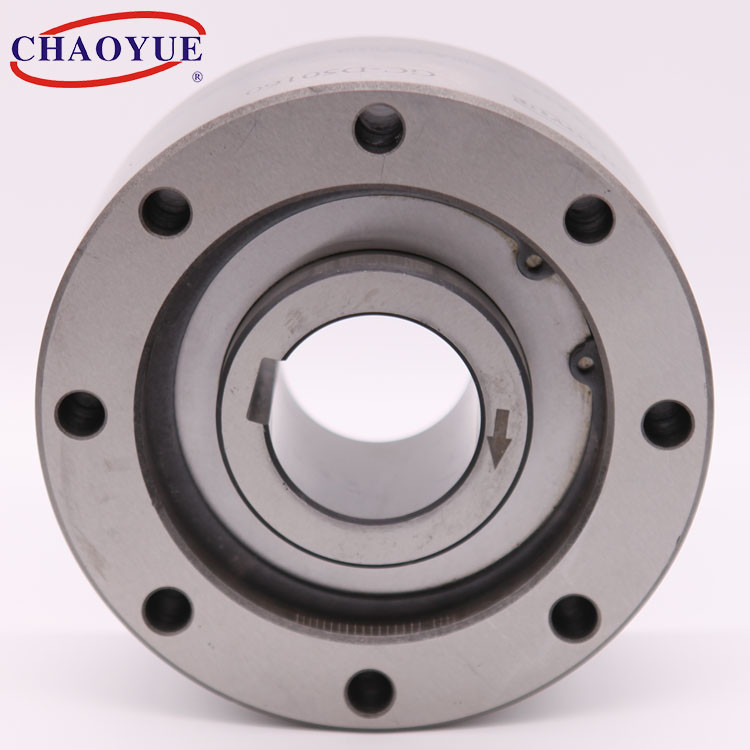

Freewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch
Freewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch Freewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch Freewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch

Freewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: GC-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 30.00 - 140.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Diameter: 12 - 70 Mm Outer Diameter: 47 - 190 Mm
Thickness: 20 - 95 Mm Torque: 12 - 4370 N.m
Weight: 0.21 - 11.8 Kg
Highlight:

Freewheel One Way Roller Clutch

,

Length 30mm One Way Roller Clutch

,

Inner Diameter 15mm one way needle roller clutch bearing

Product Description

GC-D 12 - 70 mm AA One Way Roller Freewheel Clutch One Way Bearing



Roller type one-way clutch by the peripheral rollers, and the inner ring composed of spring, the number of rollers is generally 6-8. Operation, if the one-way clutch outer race relative to the inner ring rotates counterclockwise, then the roller is moved and compresses the spring to the large end of the opening of the groove having a cam profile. At this time, the one-way clutch locking phenomenon does not occur, while allowing rotation of the outer ring, i.e., one-way clutch shown at any time, which allows the outer ring to rotate counterclockwise relative to the inner ring. Stated another way, allowing the inner ring rotates clockwise relative to the outer ring.



Freewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch 0





Mounting Example



Freewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch 1



Freewheel Length 30mm Inner Diameter 15mm One Way Roller Clutch 2

Type Nominal Torque [N.m]

Overrunning Limiting Speed

[r / min]

 　Dimension in Coutour [mm] Weight
[kg]
Inner Race Outer Race d[H7] D[h7] F L n - d1 bn x tn
GC-D1247 12 1550 3000 12 47 38 20 3 - 5.5 4 x 1.8 0.21
GC-D1555 42 1150 2700 15 55 45 30 3 - 5.5 5 x 2.3 0.44
GC-D2068 111 1000 1800 20 68 58 34 4 - 5.5 6 x 2.8 0.7
GC-D2590 215 850 1300 25 90 78 37 6 - 5.5 8 x 3.3 1.3
GC-D30100 380 750 1050 30 100 87 44 6 - 6.6 8 x 3.3 2
GC-D35110 547 650 975 35 110 96 48 6 - 6.6 10 x 3.3 2.6
GC-D40125 760 600 850 40 125 108 56 6 - 9.0 12 x 3.3 3.9
GC-D45130 855 525 750 45 130 112 56 8 - 9.0 14 x 3.8 4
GC-D50150 1634 475 650 50 150 132 63 8 - 9.0 14 x 3.8 6
GC-D55160 1995 425 600 55 160 138 67 8 - 11 16 x 4.3 7.2
GC-D60170 1660 400 550 60 170 150 78 10 - 11 18 x 4.4 9.2
GC-D70190 4370 325 450 70 190 165 95 10 - 11 20 x 4.9 11.8
