China One Way Overrunning Clutch manufacturer

CHAOYUE Centrifugal 1200r/Min One Way Roller Clutch 2.8Kg

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: GC-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 25.00 - 140.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Product Name: GC-A Roller Type Overrunning One Way Clutch 20 - 95 Mm Bore Size: 12 - 70 Mm
Outer Diameter: 37 - 170 Mm Thickness: 20 - 95 Mm
Weight: 0.11 - 12.10 Kg Application: Printing, Packaging, Food, Medical Equipment
High Light:

centrifugal One Way Roller Clutch

,

1200r/min One Way Roller Clutch

,

1200r/min needle roller clutch bearing

Product Description

GC-A Roller Type Overrunning One Way Clutch 20 - 95 Mm



When the roller-type one-way clutch is working, the maximum contact stress occurs at the contact point between the roller and the inner and outer rings. Strictly speaking, because the force on both sides of the roller is equal, and its contact area with the convex surface of the inner ring is smaller than the contact area with the concave surface of the outer ring, the maximum contact stress occurs on the contact surface between the roller and the inner ring. Here, the most prone to occur is surface fatigue wear, and the typical failure form is pitting and spalling. The metal materials used to manufacture the one-way clutch rollers and inner and outer rings are generally the same as the rolling bearing materials.
When the one-way clutch is working, the roller is always subjected to the rotating centrifugal force, so it always tries to deviate from the point of contact with the periphery. Therefore, the roller must be pressed to the small end of the open groove with the help of a spring to prevent this deviation, which is why the spring is required to have a certain pre-tightening force.

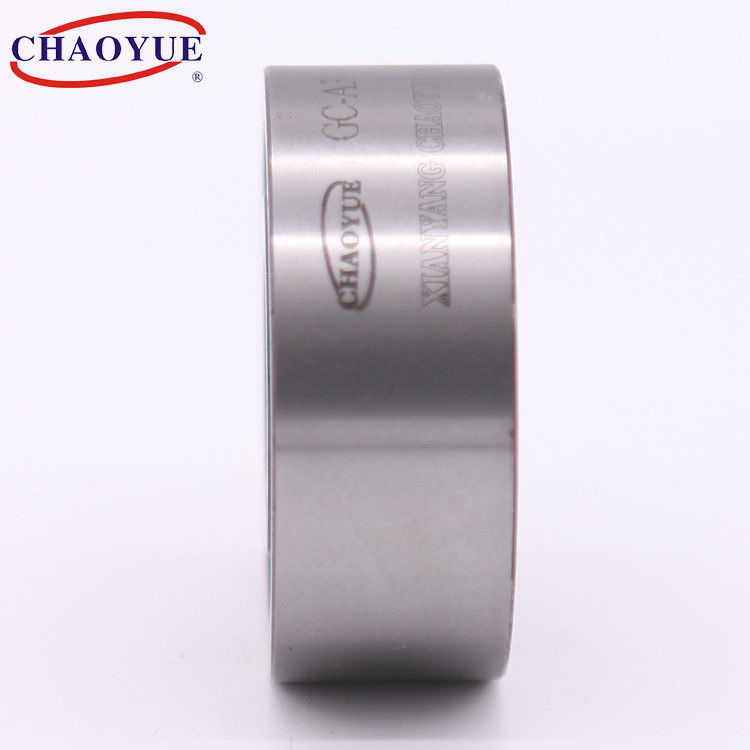

CHAOYUE Centrifugal 1200r/Min One Way Roller Clutch 2.8Kg 0




Mounting Example

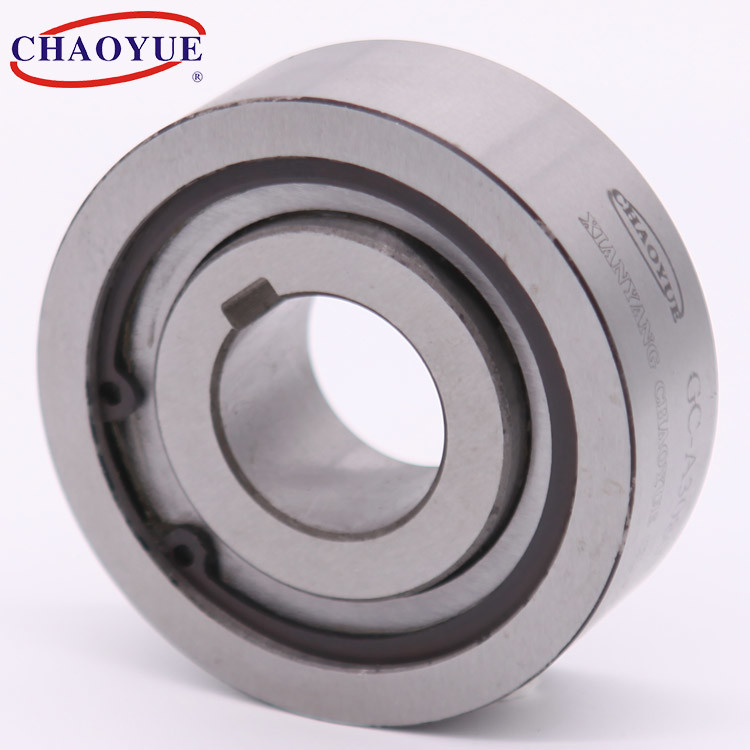

CHAOYUE Centrifugal 1200r/Min One Way Roller Clutch 2.8Kg 1

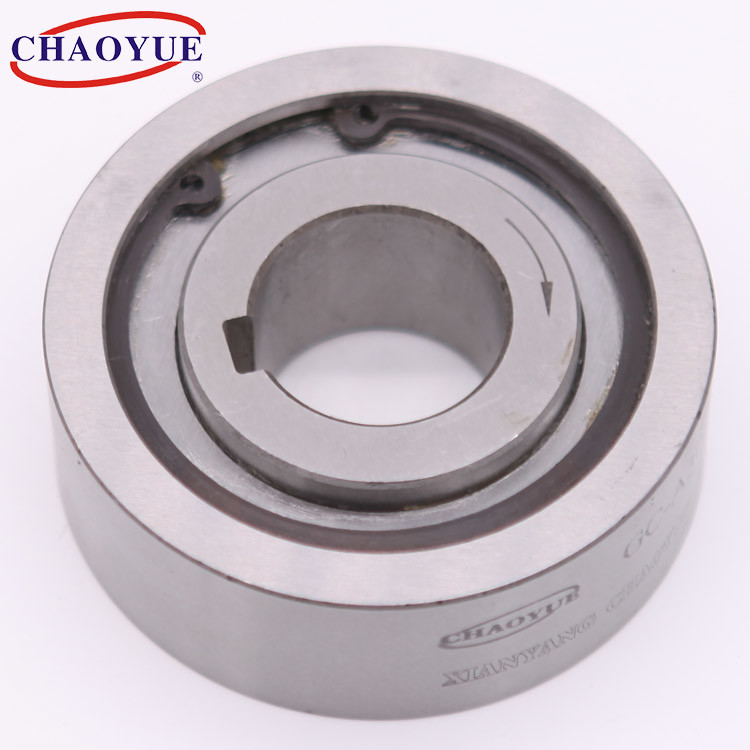

CHAOYUE Centrifugal 1200r/Min One Way Roller Clutch 2.8Kg 2



Type Nominal Torque [N.m] Overrunning Limiting Speed [r / min] Dimension in Coutour [mm] Weight
Inner Race Outer Race D [h7] L bw x tw d [H7] bn x tn
GC-A1237 12 1500 3100 37 20 4 x 2.5 12 4 x 1.8 0.11
GC-A1547 40 1100 2800 47 30 4 x 2.5 15 4 x 1.8 0.3
GC-A2062 105 1000 2400 62 34 5 x 3.0 20 5 x 2.3 0.55
GC-A2580 205 850 2000 80 37 5 x 3.0 25 5 x 2.3 0.98
GC-A2585 260 800 1800 85 28 5 x 3.0 25 8 x 3.0 0.9
GC-A3090 360 750 1700 90 44 6 x 3.5 30 6 x 2.8 1.5
GC-A3580 320 850 2000 80 37 5 x 3.0 35 5 x 2.3 0.9
GC-A35100 513 650 1400 100 48 6 x 3.5 35 6 x 2.8 2
GC-A40110 738 600 1200 110 56 8 x 4.0 40 8 x 3.3 2.8
GC-A45120 810 500 1000 120 56 10 x 5.0 45 10 x 3.3 3.3
GC-A50130 1530 450 850 130 63 10 x 5.0 50 10 x 3.3 4.2
GC-A55140 1890 420 700 140 67 12 x 5.0 55 12 x 3.3 5.2
GC-A60150 2520 400 580 150 78 12 x 5.0 60 12 x 3.3 6.8
GC-A70170 4320 300 450 170 92 14 x 5.5 70 14 x 3.8 12.1
