Thickness 108mm OD 320mm Roller Bearing Clutch GC-B For Packaging Machines

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: GC-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 25.00 - 360.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Product Name: GC-B 0.07 - 42.0 KG ASNU One Way Roller Clutch Bearing For Printing Packaging Machines Outer Diameter: 35 - 320 Mm
Thickness: 13 - 108 Mm Torque: 8.3 - 17040 N.m
Weight: 0.07 - 42.0 KG
High Light:

OD 320mm roller bearing clutch

,

Thickness 108mm roller bearing clutch

,

OD 320mm conveyor roller bearings

Product Description

GC-B 0.07 - 42.0 KG ASNU One Way Roller Clutch Bearing For Printing Packaging Machines



When the roller type one-way clutch operation, the maximum contact stress occurs at the contact roller and the inner and outer rings. Strictly speaking, since the biasing force is equal on both sides of the roller, and the inner ring and its convex surface is smaller than the contact area to the contact area with the concave surface of the outer ring, so that the maximum contact stress occurs on the contact surface of the roller and the inner ring. Here, the most prone to fatigue wear surface, typically in the form of pitting spalling failure. Manufacturing a one-way clutch and the inner roller, the outer ring of a metallic material, typically the same material as the rolling bearing.
Since the one-way clutch operation, the rollers are always subjected to centrifugal force, thereby always trying to offset outward from the periphery of the contact point. Therefore, the rollers must be pressed by a spring to the small end opening groove to stop such an offset, which is why there should be a required spring biasing force reasons.

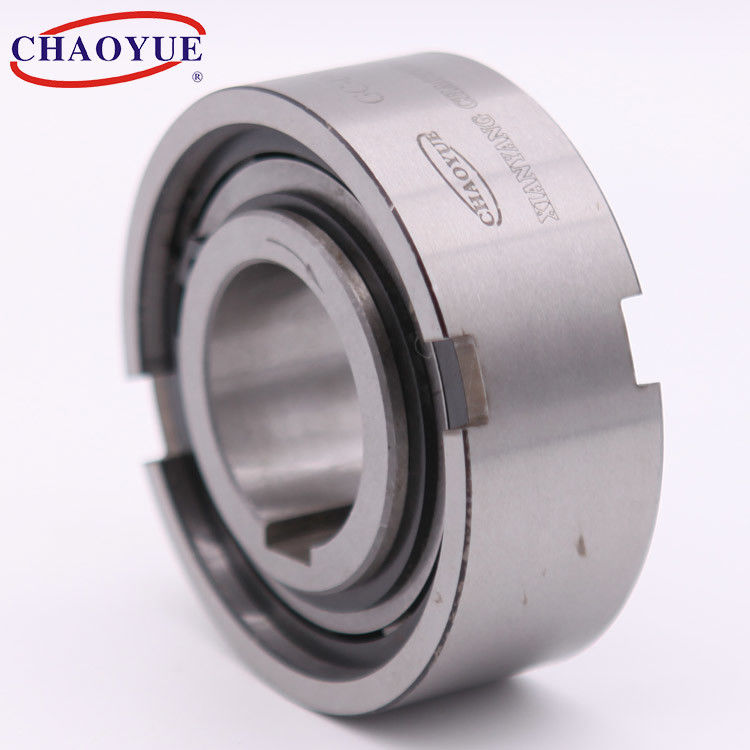

Thickness 108mm OD 320mm Roller Bearing Clutch GC-B For Packaging Machines 0






Mounting Example

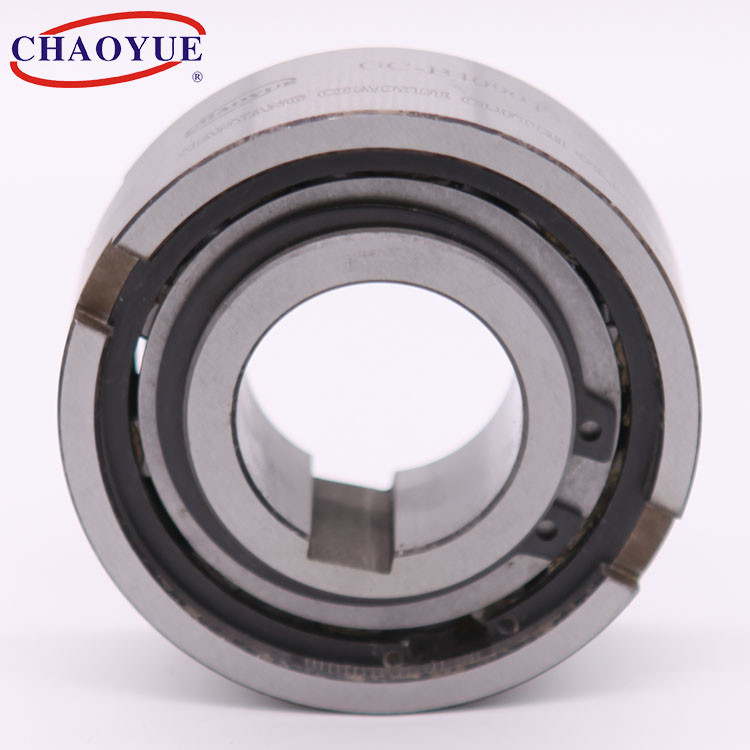

Thickness 108mm OD 320mm Roller Bearing Clutch GC-B For Packaging Machines 1

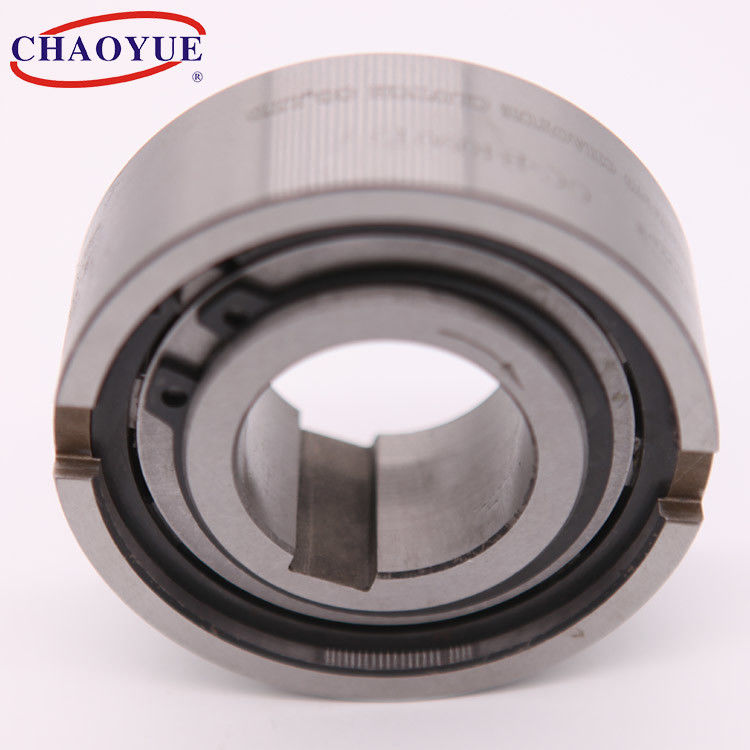

Thickness 108mm OD 320mm Roller Bearing Clutch GC-B For Packaging Machines 2

Type Nominal Torque [N.m] Overrunning Limiting Speed [r / min] Dimension in Coutour [mm] Weight
Inner Race Outer Race d [h7] D [h7] L bw x tw bn x tn
GC-B835 8.3 1650 2500 8 35 13 4 x 1.4 2 x 1.0 0.07
GC-B1235 8.3 1650 2500 12 35 13 4 x 1.4 4 x 1.8 0.06
GC-B1237 8.5 1600 2500 12 37 20 6 x 3.3 4 x 1.8 0.07
GC-B1542 22 1200 1800 15 42 18 5 x 1.8 5 x 2.3 0.11
GC-B1747 35 1150 1700 17 47 19 5 x 2.3 5 x 2.3 0.15
GC-B2052 26 1050 1550 20 52 21 6 x 2.3 6 x 2.8 0.19
GC-B2060 90 850 1300 20 60 20 6 x 2.3 6 x 3.0 0.08
GC-B2062 100 850 1300 20 62 36 8 x 3.5 6 x 2.8 0.59
GC-B2562 90 850 1300 25 62 24 8 x 2.8 8 x 3.3 0.38
GC-B3072 184 700 1100 30 72 27 10 x 2.5 10 x 3.3 0.54
GC-B3580 270 600 950 35 80 31 12 x 3.5 12 x 3.3 0.74
GC-B4090 387 550 850 40 90 33 12 x 4.1 14 x 3.8 0.92
GC-B4393 400 550 850 43 93 36 14 x 4.5 10 x 3.0 1
GC-B45100 558 500 800 45 100 36 14 x 4.6 14 x 3.8 1.31
GC-B50110 720 425 675 50 110 40 14 x 5.6 18 x 4.4 1.74
GC-B60130 1315 375 525 60 130 46 18 x 5.6 20 x 4.9 2.77
GC-B60170 2500 275 425 60 170 90 20 x 7.5 18 x 4.4 6.5
GC-B65170 2500 275 425 65 170 90 20 x 7.5 18 x 4.4 6.3
GC-B70150 1656 300 475 70 150 51 20 x 6.9 20 x 4.9 4.16
GC-B80170 2096 275 425 80 170 58 20 x 7.5 22 x 5.4 7.01
GC-B90190 3468 250 375 90 190 64 20 x 8.0 25 x 5.4 8.2
GC-B100215 5400 225 340 100 215 73 24 x 8.5 28 x 6.4 12.6
GC-B120260 5932 185 275 120 260 86 28 x 10 32 x 7.4 23
GC-B150320 17040 150 230 150 320 108 32 x 12 36 x 8.4 42
