China One Way Overrunning Clutch manufacturer

Lightweight 1750r/Min 9mm Length Roller Clutch Bearing , Roller Ramp Clutch

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: GC-C
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 25.00 - 65.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month

Detail Information

Product Name: GC-C AS One Way Roller Clutch 30 - 140 Mm Outer Diameter: 30 - 140 Mm
Inner Diameter: 10 -12 Mm Thickness: 9 - 26 Mm
Torque: 4.6 - 722 N.m Weight: 0.03 - 1.41 KG
High Light:

1750r/min roller clutch bearing

,

9mm length roller clutch bearing

,

1750r/min roller ramp clutch

Product Description

GC-C AS One Way Roller Clutch 30 - 140 Mm



When the roller type one-way clutch operation, the maximum contact stress occurs at the contact roller and the inner and outer rings. Strictly speaking, because the force on both sides of the roller is equal, and its contact area with the convex surface of the inner ring is smaller than the contact area with the concave surface of the outer ring, the maximum contact stress occurs on the contact surface between the roller and the inner ring. Here, the most prone to fatigue wear surface, typically in the form of pitting spalling failure. The metal materials used to manufacture the one-way clutch rollers and inner and outer rings are generally the same as the rolling bearing materials.

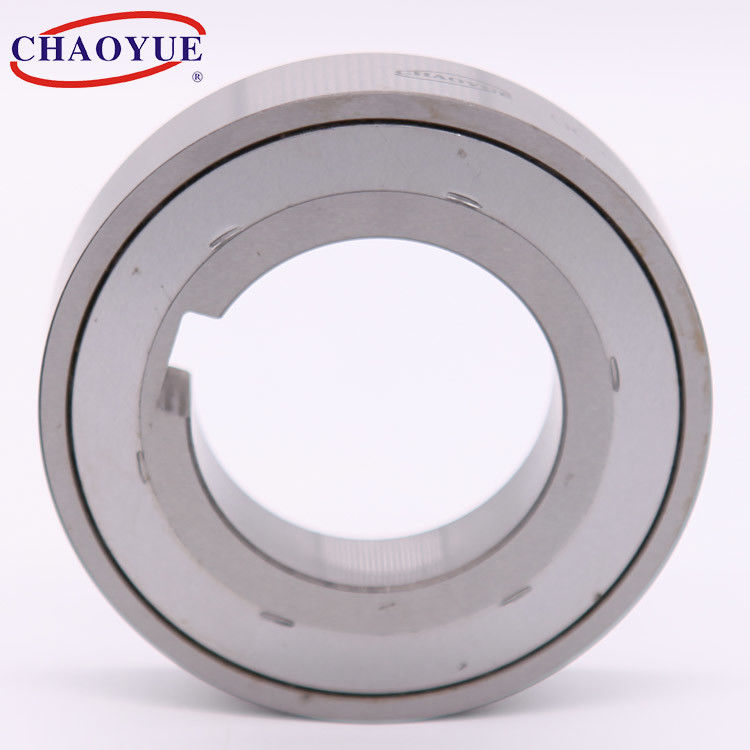

Lightweight 1750r/Min 9mm Length Roller Clutch Bearing , Roller Ramp Clutch 0






Mounting Example

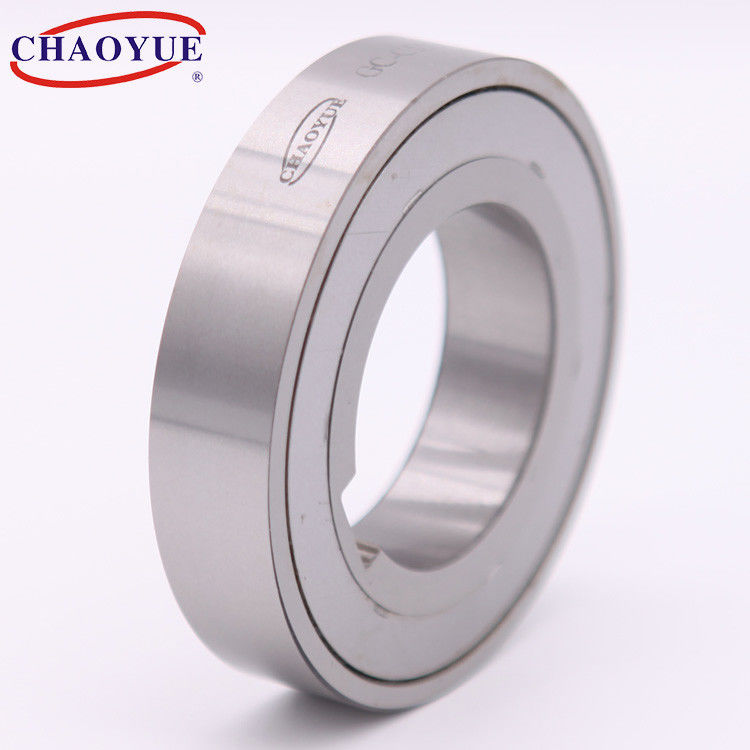

Lightweight 1750r/Min 9mm Length Roller Clutch Bearing , Roller Ramp Clutch 1

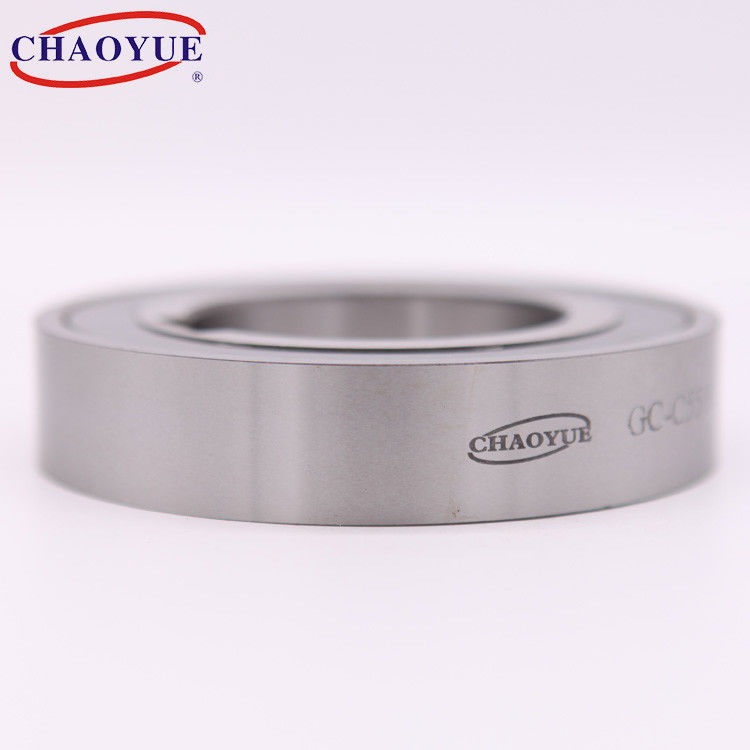

Lightweight 1750r/Min 9mm Length Roller Clutch Bearing , Roller Ramp Clutch 2

Type Nominal Torque [N.m] Overrunning Limiting Speed [r / min] Dimension in Coutour [mm] Weight
[kg]
Inner Race Outer Race D [n6] L d [H7] bn x tn
GC-C1030 4.6 1750 2600 30 9 10 3 x 1.4 0.03
GC-C1232 8.5 1600 2400 32 10 12 4 x 1.8 0.04
GC-C1535 9.3 1400 2150 35 11 15 3 x 1.4 0.05
GC-C1542 11 1200 1750 42 11 15 3 x 1.4 0.11
GC-C1545 27 1200 1750 45 15 15 3 x 1.4 0.12
GC-C2047 22 1100 1650 47 14 20 6 x 2.8 0.12
GC-C2547 20 1100 1650 47 25 25 6 x 2.8 0.12
GC-C2552 38 950 1450 52 15 25 8 x 3.3 0.14
GC-C2562 60 800 1200 62 17 25 8 x 3.3 0.17
GC-C3062 61 800 1200 62 16 30 8 x 3.3 0.22
GC-C3572 97 650 1000 72 17 35 10 x 3.3 0.31
GC-C4080 126 600 900 80 18 40 10 x 3.3 0.39
GC-C4585 148 500 800 85 19 45 8 x 2.8 0.44
GC-C5090 153 475 750 90 20 50 8 x 2.8 0.49
GC-C55100 209 400 650 100 21 55 16 x 4.3 0.66
GC-C60110 346 350 550 110 22 60 18 x 4.4 0.81
GC-C80140 722 300 450 140 26 80 22 x 5.4 1.41
