Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | DLD7 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | USD 25.00 - 220.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Product Name: | 44.3 - 93.5 Mm ELECTORMAGNETIC CLUTCH For Agricultural Machinery | Bore Size: | 12 - 60 Mm |
|---|---|---|---|
| Outer Diameter: | 68 - 266.5 Mm | Weight: | 0.79 - 21.2 Kg |
| Voltage: | DC - 24V | Power: | 15 - 85 W |
| Highlight: | 68mm OD Electromagnetic Clutch Brake,15W Electromagnetic Clutch Brake,15W agricultural machinery parts |
||
Product Description

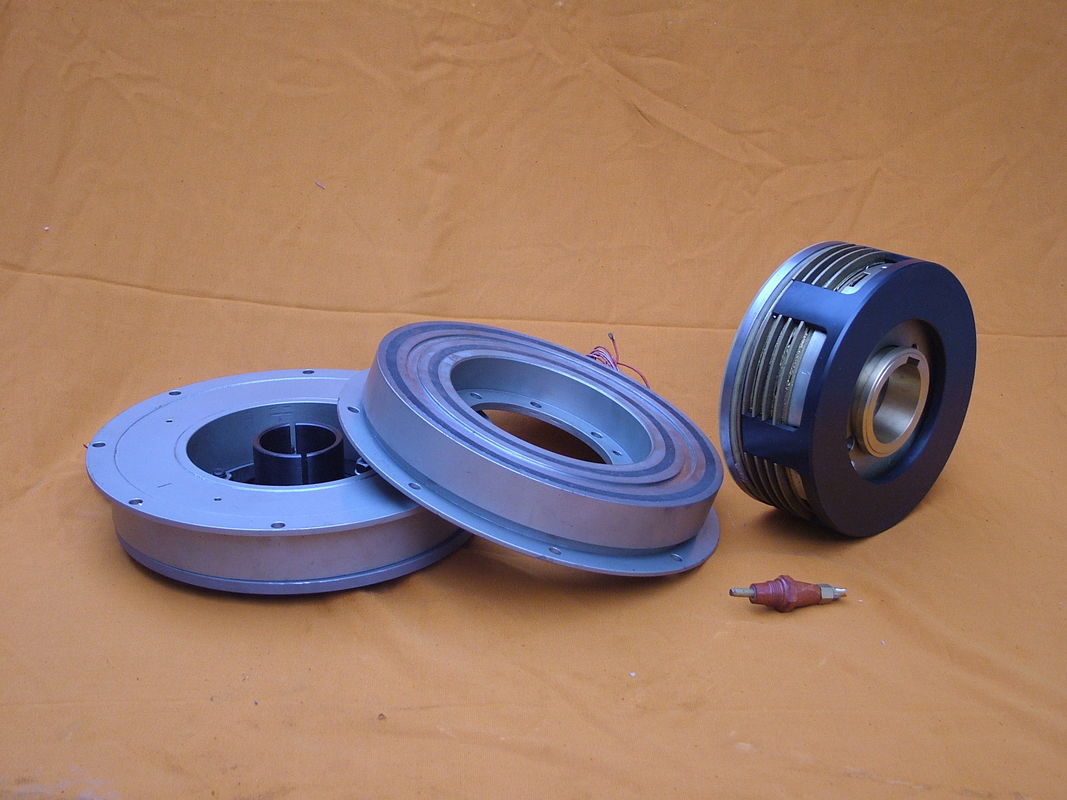

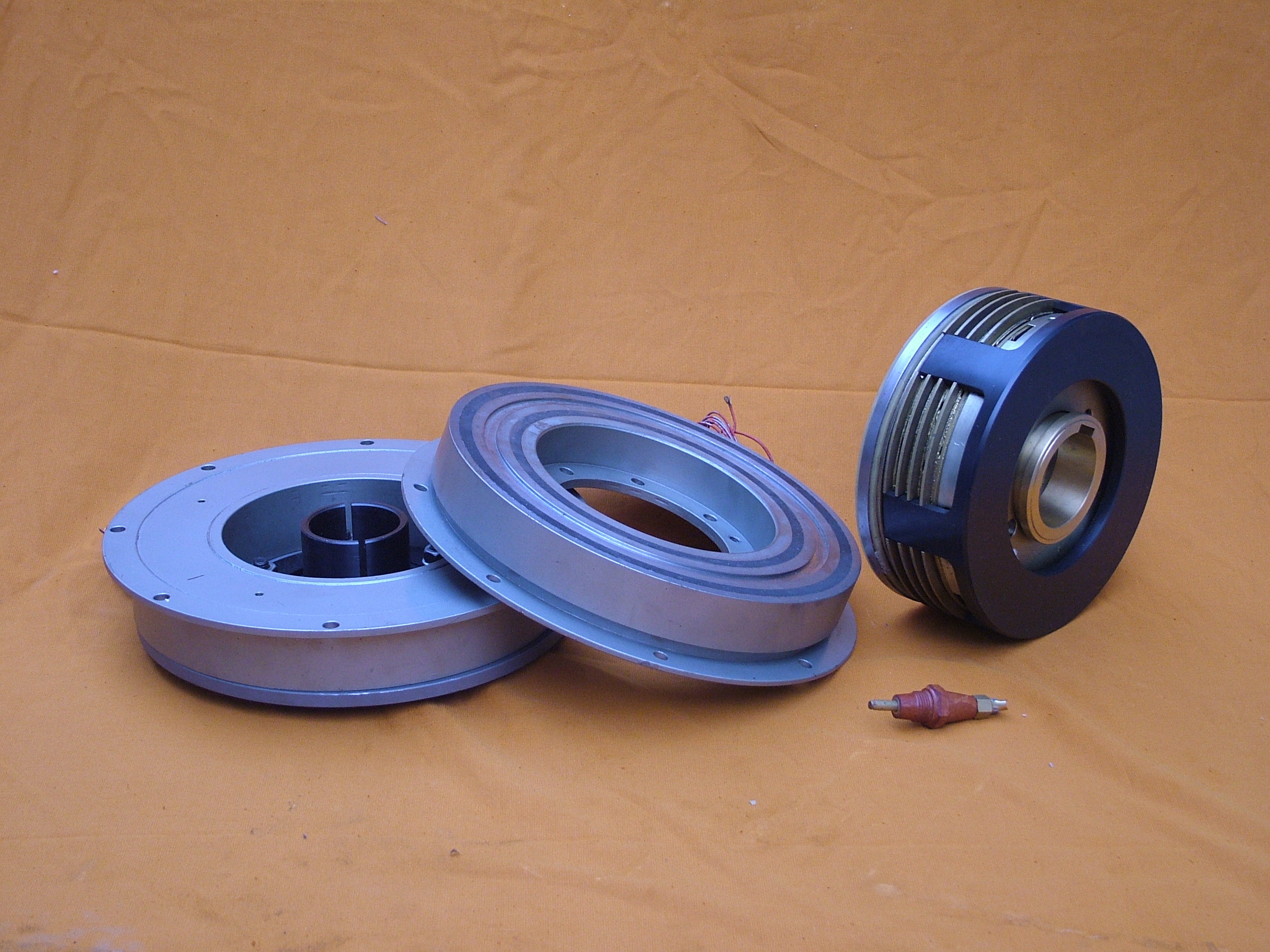

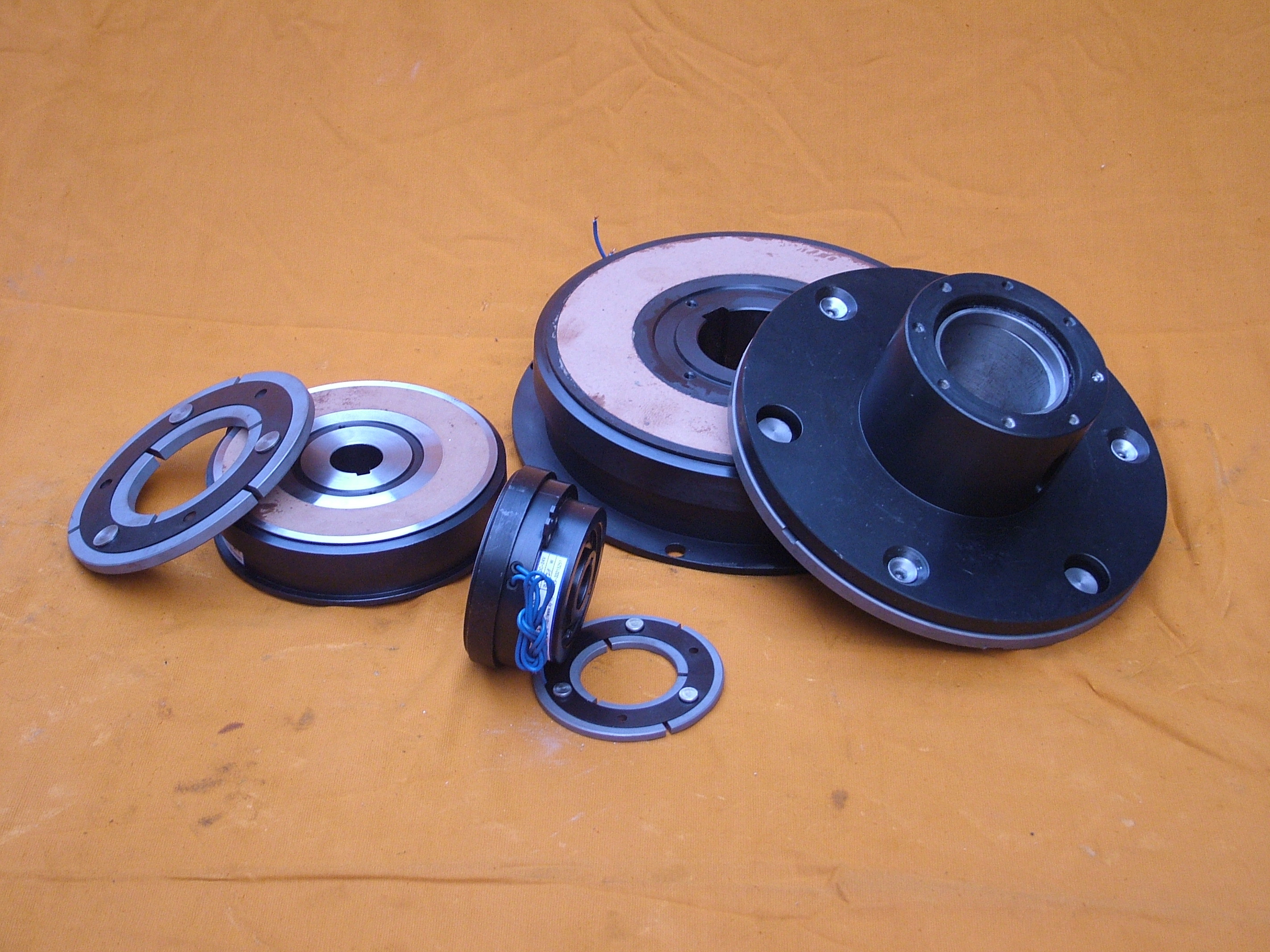

44.3 - 93.5 Mm ELECTORMAGNETIC CLUTCH For Agricultural Machinery
Featuresedit
1. High-speed response: Because it is a dry type, the torque transmission is very fast, and convenient actions can be achieved.
2, durability strong: good heat dissipation, and the use of advanced materials, even high-frequency, high-energy, but also very durable.
3, the assembly is easy to maintain: ball belonging built-stationary field coil shape, it is not necessary to remove the core do not use brushes, easy to use.
4, the action does: a plate-like shrapnel, although strong vibration will not produce loose, good durability.
Mounting example
| Model | DLD7 - 5 | DLD7 - 10 | DLD7 - 20 | DLD7 - 40 | DLD7 - 80 | DLD7 - 160 | DLD7 - 320 | ||||||||
| Friction Torque[N.m] | Dynamic | 5 | 10 | 20 | 40 | 80 | 160 | 320 | |||||||
| Static | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 | ||||||||
| Excitation Voltage [V] | DC - 24V | ||||||||||||||
| Power (20°C) [w] | 15 | 20 | 28 | 35 | 50 | 68 | 85 | ||||||||
| Max Rotating Speed [rpm] | 8000 | 6000 | 5000 | 4000 | 3000 | 3000 | 2000 | ||||||||
| Weight [kg] | 0.79 | 1.2 | 2.24 | 3.86 | 7 | 13.3 | 21.2 | ||||||||
|
Radial Size [mm] |
D1 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | |||||||
| D2 | 46 | 60 | 76 | 95 | 120 | 158 | 210 | ||||||||
| D3 | 34.5 | 41.7 | 51.5 | 61.5 | 79.5 | 99.5 | 124.5 | ||||||||
| B | 68 | 85.5 | 107 | 134.3 | 170 | 214 | 266.5 | ||||||||
| C | 57 | 68 | 85 | 100 | 127 | 152.4 | 152.4 | ||||||||
| G1 | 38 | 47 | 56 | 64.5 | 86.5 | 100 | 127 | ||||||||
| G2 | 46.5 | 55 | 64 | 72.5 | 101.5 | 115 | 142 | ||||||||
| V1 | 3 - 4.1 | 3 - 4.2 | 3 - 5.2 | 3 - 6.2 | 3 - 8.2 | 3 - 10.2 | 3 - 12.2 | ||||||||
| V2 | 3 - 6.3 | 3 - 9.5 | 3 - 11.5 | 3 - 13.5 | 3 - 17.5 | 3 - 21.5 | 3 - 26.5 | ||||||||
| V3 | 3 - 6.25 | 3 - 8.3 | 3 - 10.3 | 3 - 12.35 | 3 - 16.35 | 3 - 20.42 | 3 - 25 | ||||||||
| Y1 | 4.1 | 8.1 | |||||||||||||
| Y2 | 14 | 18 | 22 | 26 | |||||||||||
|
Axial Size [mm] |
H | 26.1 | 28.1 | 32.5 | 36.3 | 41.6 | 47.7 | 55.2 | |||||||
| L1 | 44.3 | 44.7 | 55 | 61.5 | 70.7 | 85 | 93.5 | ||||||||
| L2 | 39.8 | 43.2 | 49 | 54.5 | 61.5 | 73.5 | 81 | ||||||||
| P | 7.7 | 8.2 | 9.2 | 9.8 | 15.2 | 16.5 | 19.5 | ||||||||
| R | 3 | 4 | |||||||||||||
| X | 2.5 | 2.85 | 3.3 | 3.5 | 4.9 | 5.5 | |||||||||
| δ | 0.2 ± 0.05 | 0.3 ( +0.05 / -0.1) | 0.5 (0 / -0.2) | ||||||||||||
|
Bore Size [mm] |
D | 12 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | ||||||
| b | 4 | 5 | 6 | 8 | 12 | 14 | 18 | ||||||||
| t | 13.8 | 17.3 | 22.8 | 28.3 | 33.3 | 43.3 | 53.8 | 64.4 | |||||||
