Agriculture Use 5000rpm 35W Electric Clutch Brake With Protective Cover

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: DLD7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 25.00 - 220.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Product Name: DLD7 0.79 - 21.2 Kg ELECTORMAGNETIC CLUTCH For Agricultural Machinery Bore Size: 12 - 60 Mm
Outer Diameter: 68 - 266.5 Mm Thickness: 44.3 - 93.5 Mm
Voltage: DC - 24V Power: 15 - 85 W
High Light:

35W electric clutch brake

,

5000rpm electric clutch brake

,

5000rpm small electromagnetic clutch

Product Description

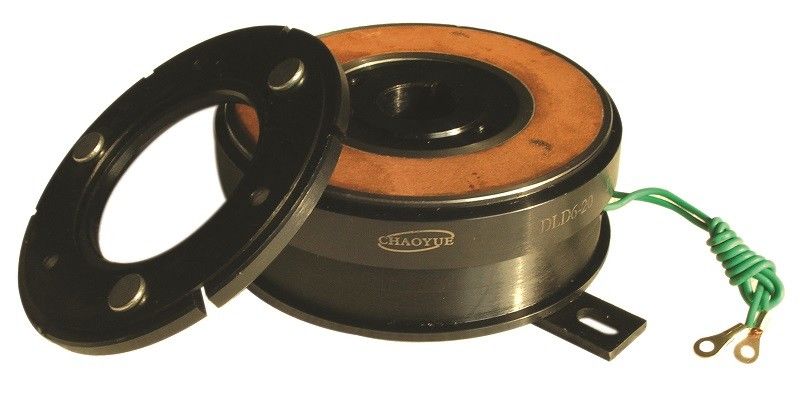

DLD7 0.79 - 21.2 Kg ELECTORMAGNETIC CLUTCH For Agricultural Machinery



Installation considerations editor
1, in the complete absence of moisture, under a dry oil components electromagnetic clutch state, if the friction parts thereof as water and oil stained
Mass, friction torque will be greatly reduced, the sensitivity is deteriorated clutch, in order to avoid the use of these circumstances, please add the cover provided.
2, when the dust a lot of places to use, use a protective cover.
3, the major axis dimension for a clutch, use size of JIS0401 H6 or JS6. Key for the shaft in JIS B1301-1959 using the specified one.
4, taking into account the thermal expansion and other factors, mounting shaft thrust Please select 0.2MM less.
5, please suction gap during installation on a mechanical adjustment is within plus or minus 20% of the value.
6, so please keep the lightweight bracket, do not use the clutch bearings under heavy pressure.
7, with respect to the screw assembly, use a spring metal sheet or the like and then be processed to prevent slack.
8, using the lead frame of the machine while maintaining the side, but also the use of a terminal plate or the like is indeed connected.

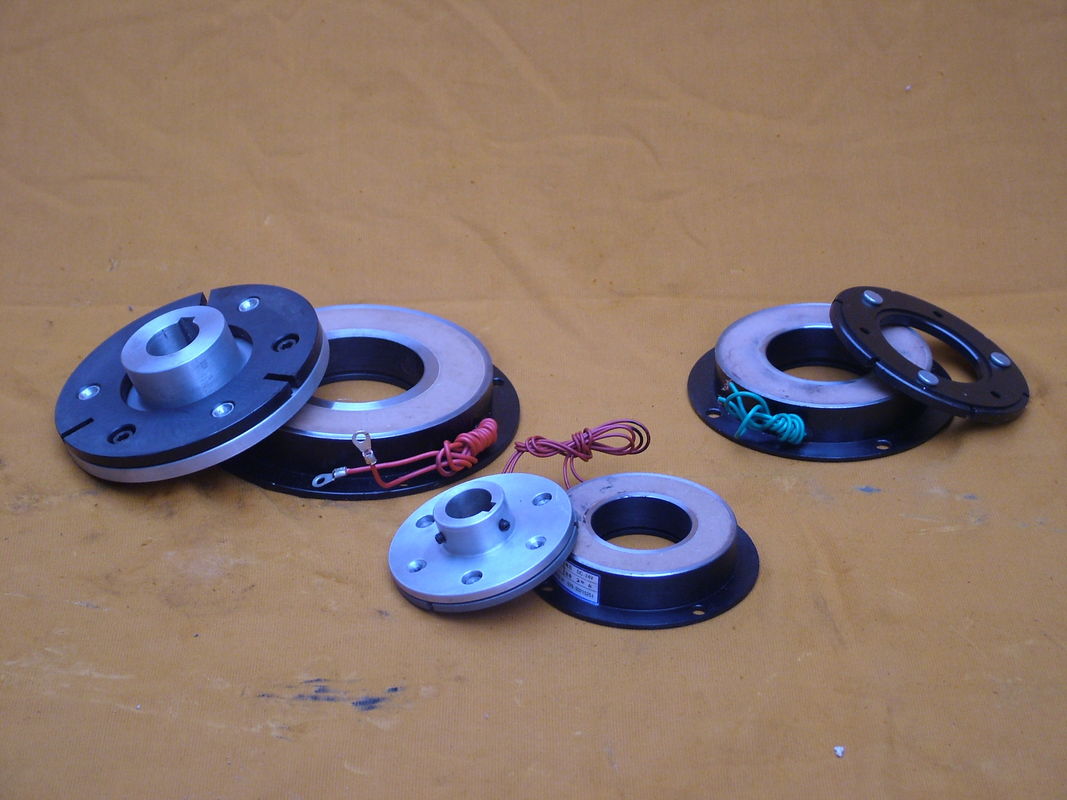

Mounting example

Agriculture Use 5000rpm 35W Electric Clutch Brake With Protective Cover 0



Model DLD7 - 5 DLD7 - 10 DLD7 - 20 DLD7 - 40 DLD7 - 80 DLD7 - 160 DLD7 - 320
Friction Torque[N.m] Dynamic 5 10 20 40 80 160 320
Static 5.5 11 22 45 90 175 350
Excitation Voltage [V] DC - 24V
Power (20°C) [w] 15 20 28 35 50 68 85
Max Rotating Speed [rpm] 8000 6000 5000 4000 3000 3000 2000
Weight [kg] 0.79 1.2 2.24 3.86 7 13.3 21.2

Radial Size

[mm]

D1 63 80 100 125 160 200 250
D2 46 60 76 95 120 158 210
D3 34.5 41.7 51.5 61.5 79.5 99.5 124.5
B 68 85.5 107 134.3 170 214 266.5
C 57 68 85 100 127 152.4 152.4
G1 38 47 56 64.5 86.5 100 127
G2 46.5 55 64 72.5 101.5 115 142
V1 3 - 4.1 3 - 4.2 3 - 5.2 3 - 6.2 3 - 8.2 3 - 10.2 3 - 12.2
V2 3 - 6.3 3 - 9.5 3 - 11.5 3 - 13.5 3 - 17.5 3 - 21.5 3 - 26.5
V3 3 - 6.25 3 - 8.3 3 - 10.3 3 - 12.35 3 - 16.35 3 - 20.42 3 - 25
Y1 4.1 8.1
Y2 14 18 22 26

Axial Size

[mm]

H 26.1 28.1 32.5 36.3 41.6 47.7 55.2
L1 44.3 44.7 55 61.5 70.7 85 93.5
L2 39.8 43.2 49 54.5 61.5 73.5 81
P 7.7 8.2 9.2 9.8 15.2 16.5 19.5
R 3 4
X 2.5 2.85 3.3 3.5 4.9 5.5
δ 0.2 ± 0.05 0.3 ( +0.05 / -0.1) 0.5 (0 / -0.2)

Bore Size

[mm]

D 12 15 20 25 30 40 50 60
b 4 5 6 8 12 14 18
t 13.8 17.3 22.8 28.3 33.3 43.3 53.8 64.4
