Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | DLD7 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | USD 25.00 - 220.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Product Name: | DLD7 Single Disc ELECTORMAGNETIC CLUTCH 0.79 - 21.2 Kg | Bore Size: | 12 - 60 Mm |
|---|---|---|---|
| Outer Diameter: | 68 - 266.5 Mm | Thickness: | 44.3 - 93.5 Mm |
| Voltage: | DC - 24V | Power: | 15 - 85 W |
| Highlight: | 11N.m electromagnetic clutch 24v,20W electromagnetic clutch 24v,6000rpm electric clutch brake |
||
Product Description

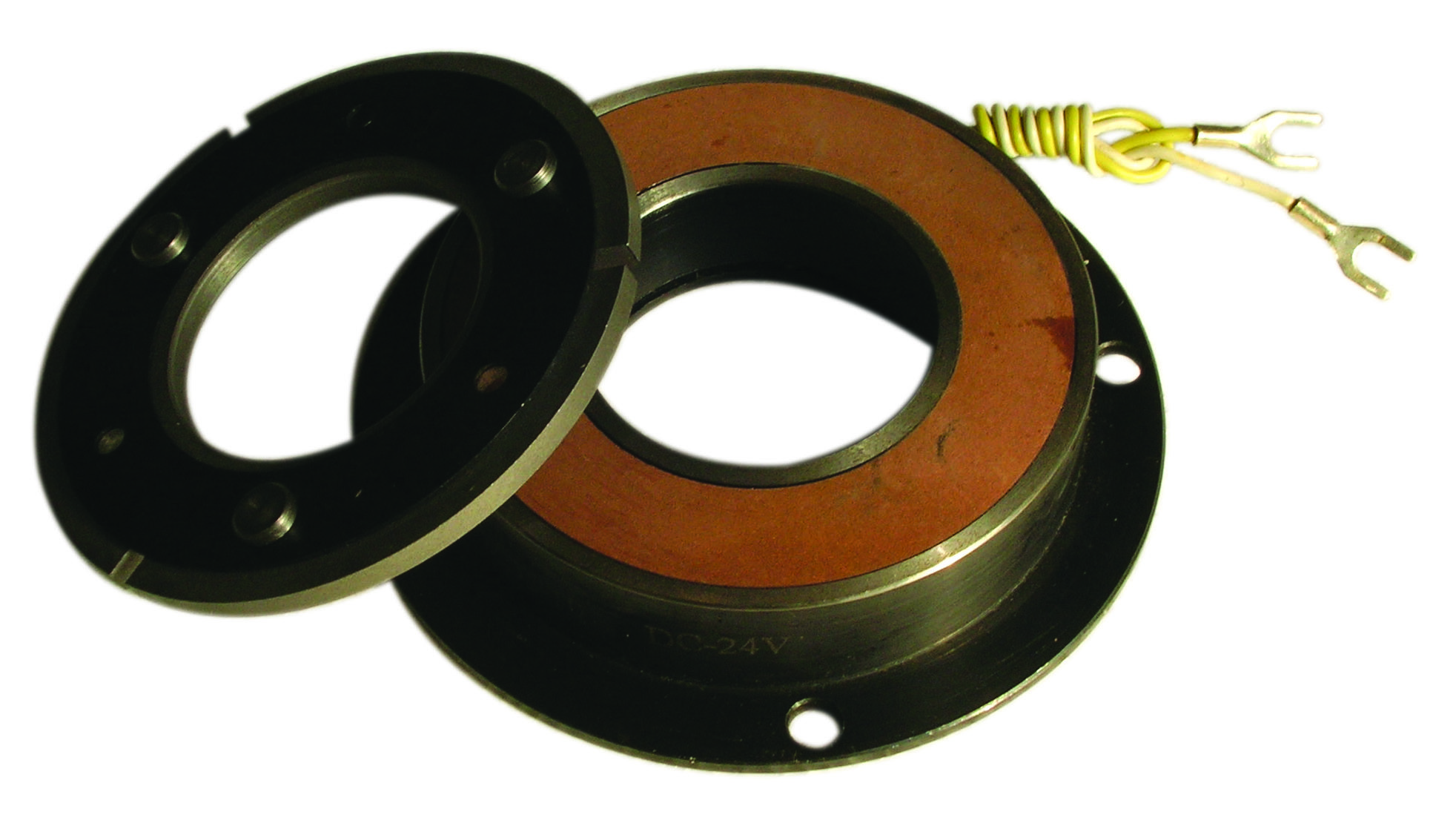

DLD7 Single Disc ELECTORMAGNETIC CLUTCH 0.79 - 21.2 Kg
Torque is transmitted by the engagement of the tooth surface, is an electromagnetic clutch jaw representative products.
Since the electromagnetic clutch having a dog (a small size, high accuracy transmission torque) characteristics, coupled with the company's unique design, performance optimization added. especially
It is important jaw tooth surface, the tooth portion after special processing, accurate torque transmission and extremely fast separation.
Further, due to the unique structure of the tooth surface, no one point does not engage (single positioning type) on the circumference, it can be extremely simple to achieve positioning connection and synchronous operation.
Mounting example
| Model | DLD7 - 5 | DLD7 - 10 | DLD7 - 20 | DLD7 - 40 | DLD7 - 80 | DLD7 - 160 | DLD7 - 320 | ||||||||
| Friction Torque[N.m] | Dynamic | 5 | 10 | 20 | 40 | 80 | 160 | 320 | |||||||
| Static | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 | ||||||||
| Excitation Voltage [V] | DC - 24V | ||||||||||||||
| Power (20°C) [w] | 15 | 20 | 28 | 35 | 50 | 68 | 85 | ||||||||
| Max Rotating Speed [rpm] | 8000 | 6000 | 5000 | 4000 | 3000 | 3000 | 2000 | ||||||||
| Weight [kg] | 0.79 | 1.2 | 2.24 | 3.86 | 7 | 13.3 | 21.2 | ||||||||
|
Radial Size [mm] |
D1 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | |||||||
| D2 | 46 | 60 | 76 | 95 | 120 | 158 | 210 | ||||||||
| D3 | 34.5 | 41.7 | 51.5 | 61.5 | 79.5 | 99.5 | 124.5 | ||||||||
| B | 68 | 85.5 | 107 | 134.3 | 170 | 214 | 266.5 | ||||||||
| C | 57 | 68 | 85 | 100 | 127 | 152.4 | 152.4 | ||||||||
| G1 | 38 | 47 | 56 | 64.5 | 86.5 | 100 | 127 | ||||||||
| G2 | 46.5 | 55 | 64 | 72.5 | 101.5 | 115 | 142 | ||||||||
| V1 | 3 - 4.1 | 3 - 4.2 | 3 - 5.2 | 3 - 6.2 | 3 - 8.2 | 3 - 10.2 | 3 - 12.2 | ||||||||
| V2 | 3 - 6.3 | 3 - 9.5 | 3 - 11.5 | 3 - 13.5 | 3 - 17.5 | 3 - 21.5 | 3 - 26.5 | ||||||||
| V3 | 3 - 6.25 | 3 - 8.3 | 3 - 10.3 | 3 - 12.35 | 3 - 16.35 | 3 - 20.42 | 3 - 25 | ||||||||
| Y1 | 4.1 | 8.1 | |||||||||||||
| Y2 | 14 | 18 | 22 | 26 | |||||||||||
|
Axial Size [mm] |
H | 26.1 | 28.1 | 32.5 | 36.3 | 41.6 | 47.7 | 55.2 | |||||||
| L1 | 44.3 | 44.7 | 55 | 61.5 | 70.7 | 85 | 93.5 | ||||||||
| L2 | 39.8 | 43.2 | 49 | 54.5 | 61.5 | 73.5 | 81 | ||||||||
| P | 7.7 | 8.2 | 9.2 | 9.8 | 15.2 | 16.5 | 19.5 | ||||||||
| R | 3 | 4 | |||||||||||||
| X | 2.5 | 2.85 | 3.3 | 3.5 | 4.9 | 5.5 | |||||||||
| δ | 0.2 ± 0.05 | 0.3 ( +0.05 / -0.1) | 0.5 (0 / -0.2) | ||||||||||||
|
Bore Size [mm] |
D | 12 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | ||||||
| b | 4 | 5 | 6 | 8 | 12 | 14 | 18 | ||||||||
| t | 13.8 | 17.3 | 22.8 | 28.3 | 33.3 | 43.3 | 53.8 | 64.4 | |||||||
