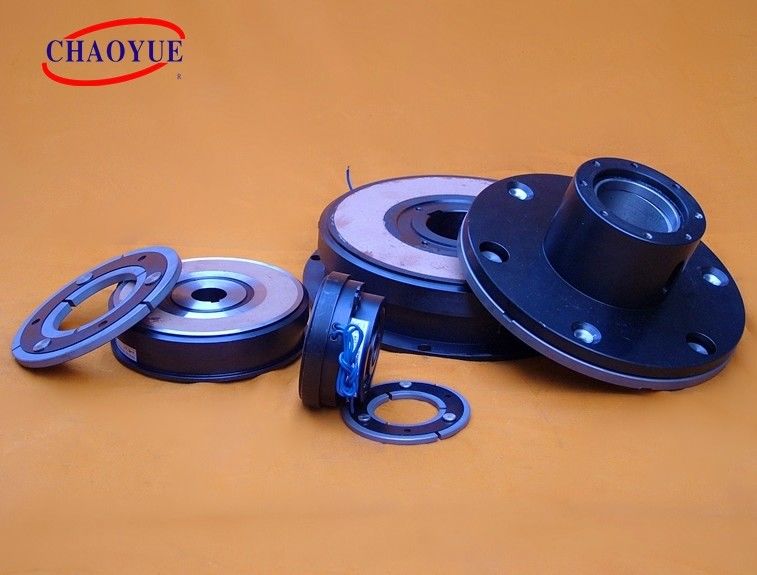

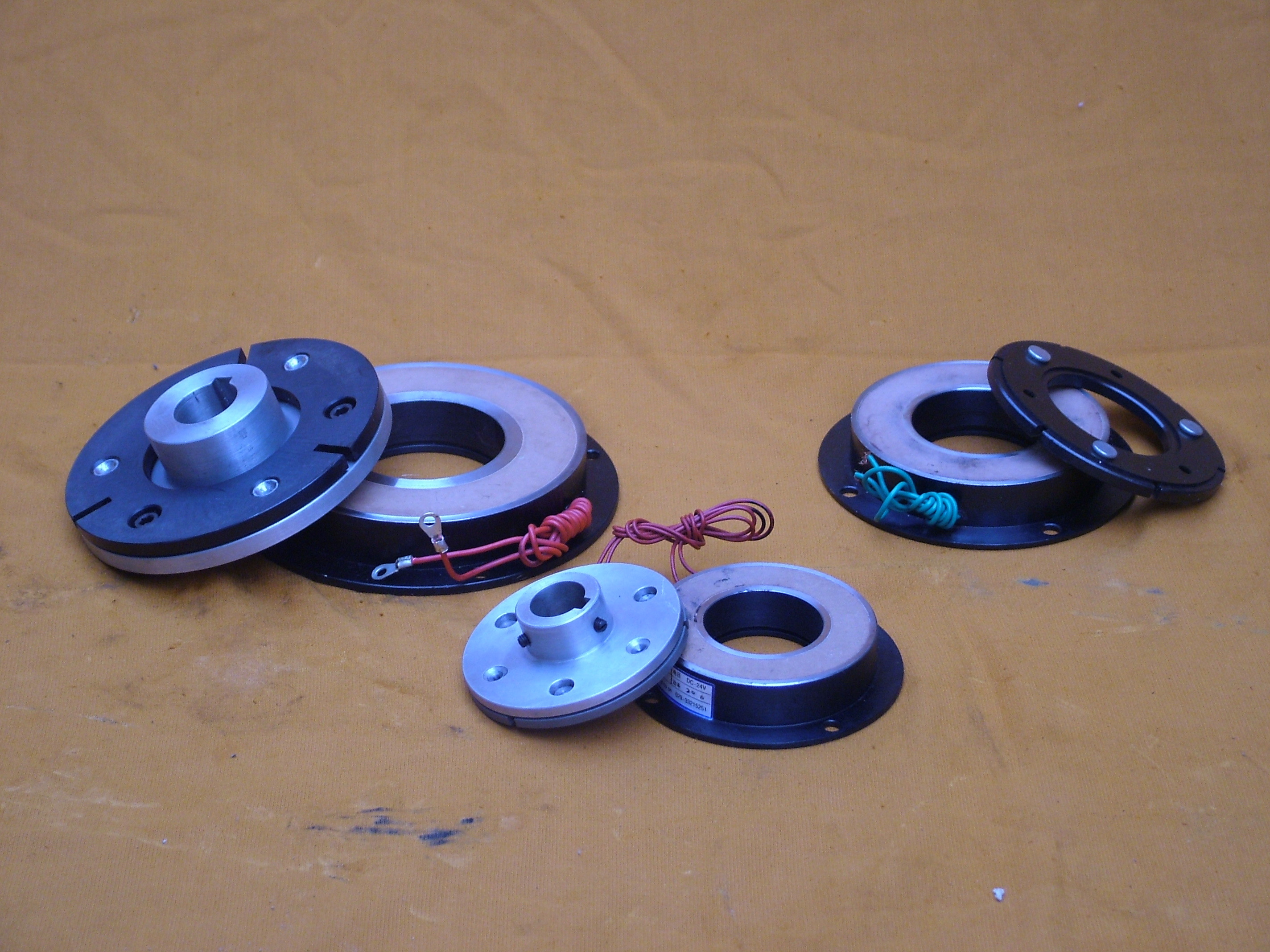

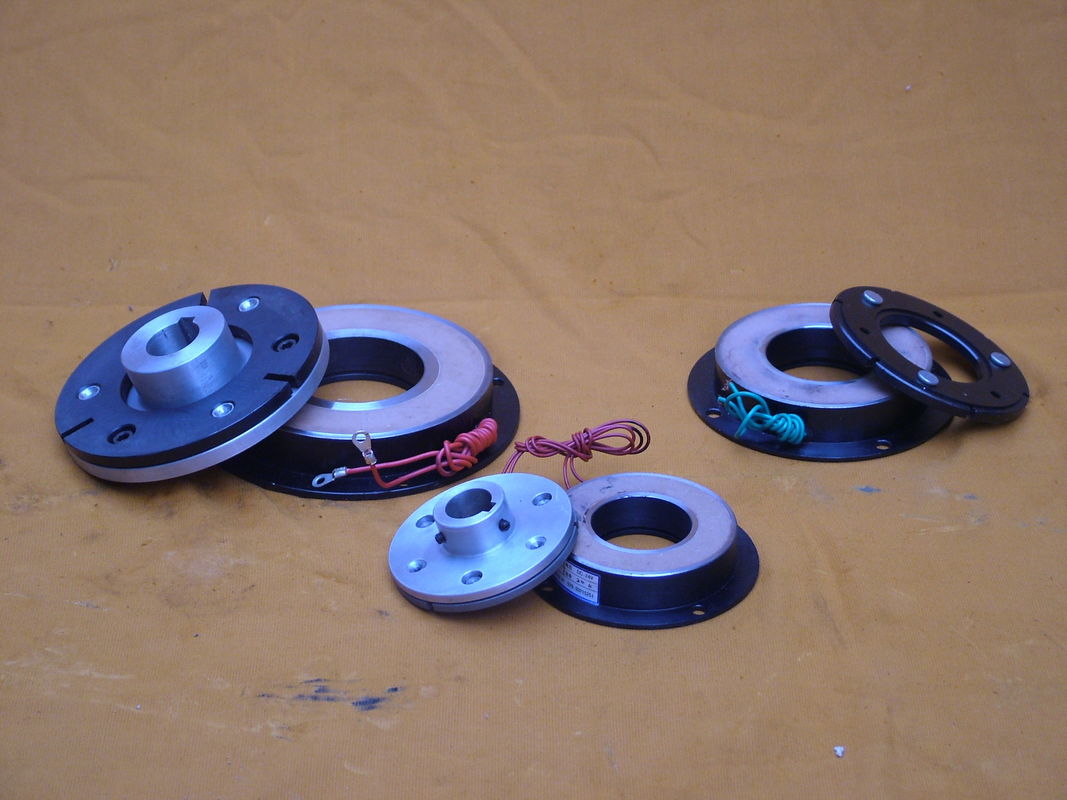

DC24V 40mm Bore Size Electromagnetic Clutch Brake , Small Electromagnetic Clutch

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: DLD7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 25.00 - 220.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Product Name: DLD7 Single Disc ELECTORMAGNETIC CLUTCH 12 - 60 Mm Outer Diameter: 68 - 266.5 Mm
Thickness: 44.3 - 93.5 Mm Weight: 0.79 - 21.2 Kg
Voltage: DC - 24V Power: 15 - 85 W
High Light:

DC24V Electromagnetic Clutch Brake

,

40mm Bore Electromagnetic Clutch Brake

,

DC24V small electromagnetic clutch

Product Description

DLD7 Single Disc ELECTORMAGNETIC CLUTCH 12 - 60 Mm​



Noteedit
1) Since the electromagnetic clutch is engaged and disengaged at a high speed, there will be many clutch marks on the surface of the iron absorption plate and the rotor. These traces will not cause harm to the work and are allowed.
2) Appropriate voltage should be applied to the electromagnetic coil. For a 12V voltage electromagnetic coil, if it is added to a 6V voltage system, it will not be able to generate enough magnetic field, which will cause the suction iron to slip, shorten the life of the clutch, and reduce the cooling capacity. Conversely, if a 6V coil is added to a 12V voltage system, the coil life will be shortened.
3) The gap between the coil and the rotor is very important. The coil and the rotor should be as close as possible to obtain a stronger magnetic field, but the gap should not be too small to prevent the rotor from dragging the coil (for fixed-coil clutches).
4) The gap between the rotor and the iron absorption is also very important. If this gap is too small, when the clutch is disengaged, the rotor will drag the suction iron. But if the gap is too large, there will be too little contact between them when the clutch is working. Both of these conditions can cause poor clutch performance. The reasonable gap between the two should be that when the clutch has no current, the two will not drag; when the clutch has current, it can ensure that no slipping occurs.






Mounting example

DC24V 40mm Bore Size Electromagnetic Clutch Brake , Small Electromagnetic Clutch 0



Model DLD7 - 5 DLD7 - 10 DLD7 - 20 DLD7 - 40 DLD7 - 80 DLD7 - 160 DLD7 - 320
Friction Torque[N.m] Dynamic 5 10 20 40 80 160 320
Static 5.5 11 22 45 90 175 350
Excitation Voltage [V] DC - 24V
Power (20°C) [w] 15 20 28 35 50 68 85
Max Rotating Speed [rpm] 8000 6000 5000 4000 3000 3000 2000
Weight [kg] 0.79 1.2 2.24 3.86 7 13.3 21.2

Radial Size

[mm]

D1 63 80 100 125 160 200 250
D2 46 60 76 95 120 158 210
D3 34.5 41.7 51.5 61.5 79.5 99.5 124.5
B 68 85.5 107 134.3 170 214 266.5
C 57 68 85 100 127 152.4 152.4
G1 38 47 56 64.5 86.5 100 127
G2 46.5 55 64 72.5 101.5 115 142
V1 3 - 4.1 3 - 4.2 3 - 5.2 3 - 6.2 3 - 8.2 3 - 10.2 3 - 12.2
V2 3 - 6.3 3 - 9.5 3 - 11.5 3 - 13.5 3 - 17.5 3 - 21.5 3 - 26.5
V3 3 - 6.25 3 - 8.3 3 - 10.3 3 - 12.35 3 - 16.35 3 - 20.42 3 - 25
Y1 4.1 8.1
Y2 14 18 22 26

Axial Size

[mm]

H 26.1 28.1 32.5 36.3 41.6 47.7 55.2
L1 44.3 44.7 55 61.5 70.7 85 93.5
L2 39.8 43.2 49 54.5 61.5 73.5 81
P 7.7 8.2 9.2 9.8 15.2 16.5 19.5
R 3 4
X 2.5 2.85 3.3 3.5 4.9 5.5
δ 0.2 ± 0.05 0.3 ( +0.05 / -0.1) 0.5 (0 / -0.2)

Bore Size

[mm]

D 12 15 20 25 30 40 50 60
b 4 5 6 8 12 14 18
t 13.8 17.3 22.8 28.3 33.3 43.3 53.8 64.4
