Product Details:
|
|
Place of Origin: | Shaanxi, China |
---|---|
Brand Name: | CHAOYUE |
Model Number: | DLD7 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | USD 25.00 - 220.00 / pc |
Packaging Details: | Carton box or wooden case depends on the size of products |
Delivery Time: | 1 - 3 weeks |
Payment Terms: | T/T |
Supply Ability: | 500 pcs per month |
Detail Information |
|||
Product Name: | DLD7 Single Disc ELECTORMAGNETIC CLUTCH 15 - 85 W | Bore Size: | 12 - 60 Mm |
---|---|---|---|
Outer Diameter: | 68 - 266.5 Mm | Thickness: | 44.3 - 93.5 Mm |
Weight: | 0.79 - 21.2 Kg | Voltage: | DC - 24V |
Highlight: | 60mm bore magnetic clutches,93.5mm thickness magnetic clutches,60mm bore micro electromagnetic clutch |
Product Description

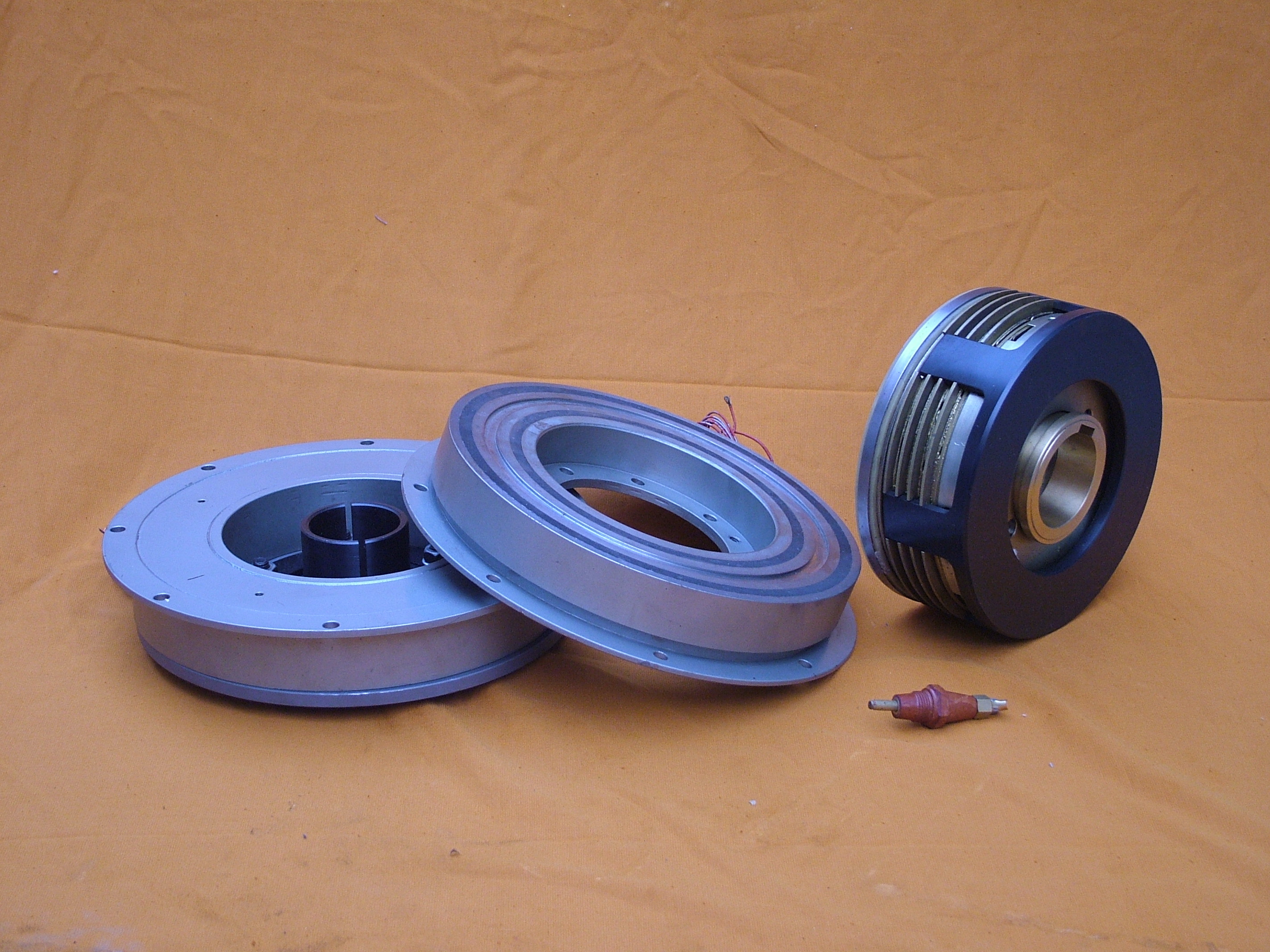

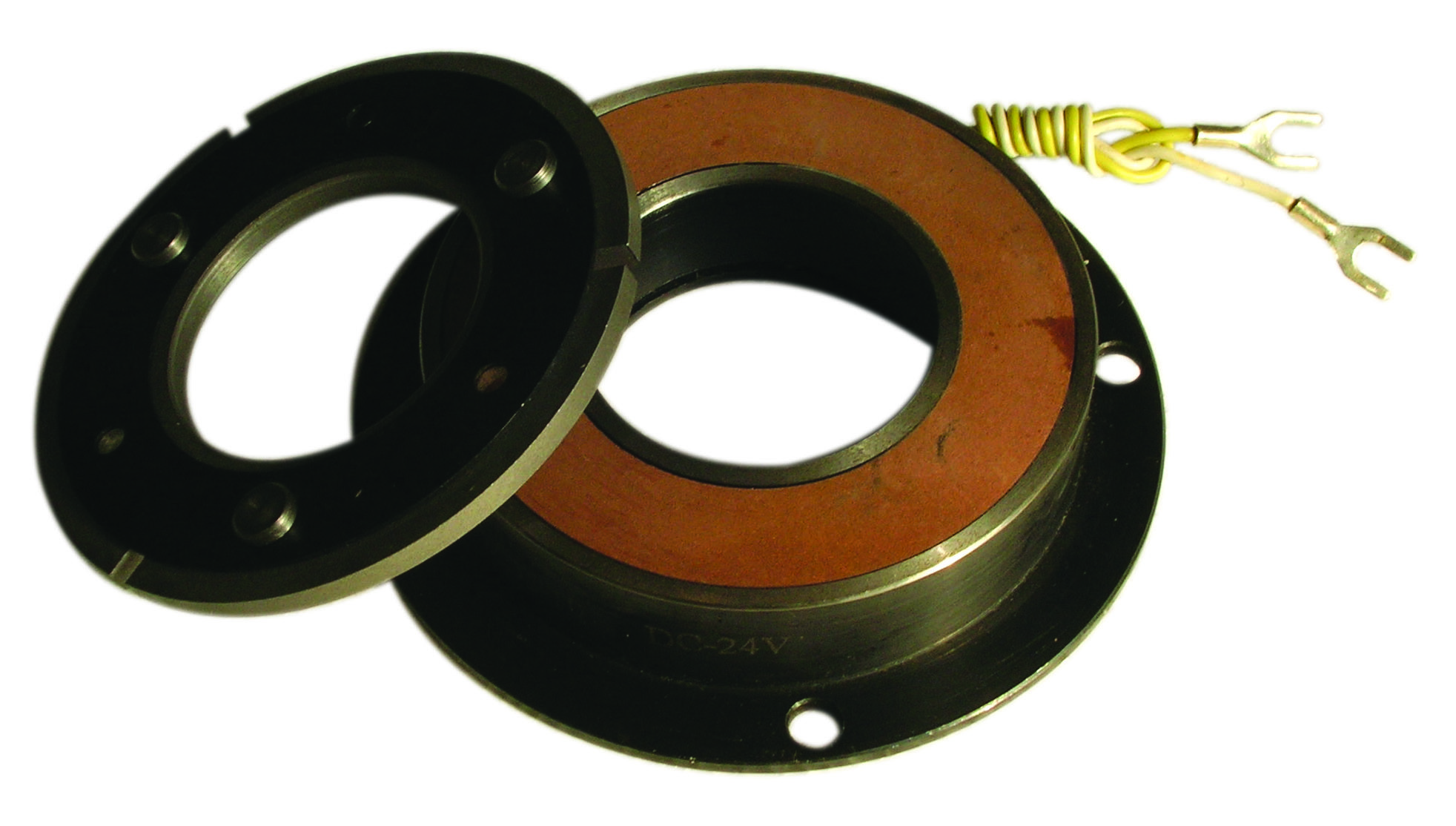

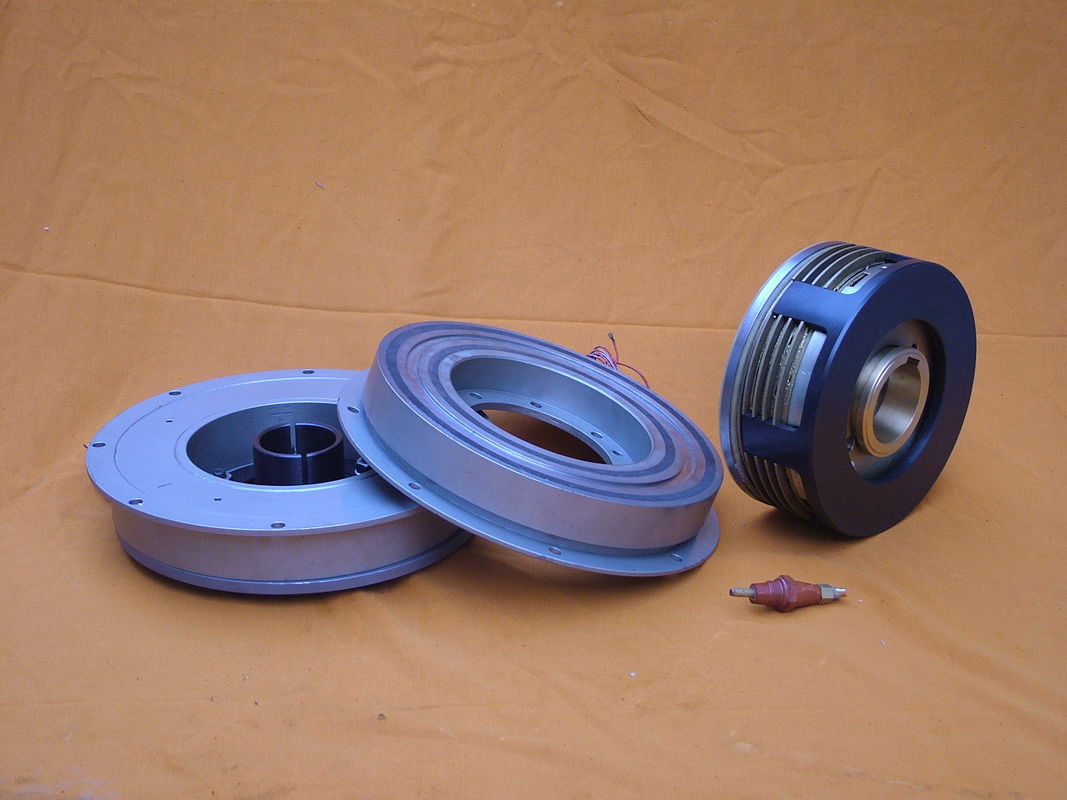

DLD7 Single Disc ELECTORMAGNETIC CLUTCH 15 - 85 W
In order to ensure uninterrupted operation of the electromagnetic clutch, it must always be maintenance and repair:
1, is often added to the lubricant in the movable part of the electromagnetic clutch.
2, regular inspection of the length of the armature stroke. Since during operation of the clutch, since the movable section of the wear surface, it will increase the length of the armature stroke. When the armature is less than the normal length of the stroke must be adjusted to restore the minimum clearance between the brake surface of the turntable. If the armature stroke length is increased to above normal, it is possible to significantly reduce suction.
3, if the replacement of the worn braking surface should be re-adjust the minimum clearance between the brake surface of the turntable.
4, always check the fastening bolts, in particular, to tighten a bolt electromagnet, the electromagnet and the bolt housing, bolt yoke, a bolt and a bolt connection solenoid coil.
5, regular inspection of mechanical wear of the movable member, and the electromagnet parts of the surface to remove dust, dirt and hair flowers.
Mounting example
Model | DLD7 - 5 | DLD7 - 10 | DLD7 - 20 | DLD7 - 40 | DLD7 - 80 | DLD7 - 160 | DLD7 - 320 | ||||||||
Friction Torque[N.m] | Dynamic | 5 | 10 | 20 | 40 | 80 | 160 | 320 | |||||||
Static | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 | ||||||||
Excitation Voltage [V] | DC - 24V | ||||||||||||||
Power (20°C) [w] | 15 | 20 | 28 | 35 | 50 | 68 | 85 | ||||||||
Max Rotating Speed [rpm] | 8000 | 6000 | 5000 | 4000 | 3000 | 3000 | 2000 | ||||||||
Weight [kg] | 0.79 | 1.2 | 2.24 | 3.86 | 7 | 13.3 | 21.2 | ||||||||
Radial Size [mm] |
D1 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | |||||||
D2 | 46 | 60 | 76 | 95 | 120 | 158 | 210 | ||||||||
D3 | 34.5 | 41.7 | 51.5 | 61.5 | 79.5 | 99.5 | 124.5 | ||||||||
B | 68 | 85.5 | 107 | 134.3 | 170 | 214 | 266.5 | ||||||||
C | 57 | 68 | 85 | 100 | 127 | 152.4 | 152.4 | ||||||||
G1 | 38 | 47 | 56 | 64.5 | 86.5 | 100 | 127 | ||||||||
G2 | 46.5 | 55 | 64 | 72.5 | 101.5 | 115 | 142 | ||||||||
V1 | 3 - 4.1 | 3 - 4.2 | 3 - 5.2 | 3 - 6.2 | 3 - 8.2 | 3 - 10.2 | 3 - 12.2 | ||||||||
V2 | 3 - 6.3 | 3 - 9.5 | 3 - 11.5 | 3 - 13.5 | 3 - 17.5 | 3 - 21.5 | 3 - 26.5 | ||||||||
V3 | 3 - 6.25 | 3 - 8.3 | 3 - 10.3 | 3 - 12.35 | 3 - 16.35 | 3 - 20.42 | 3 - 25 | ||||||||
Y1 | 4.1 | 8.1 | |||||||||||||
Y2 | 14 | 18 | 22 | 26 | |||||||||||
Axial Size [mm] |
H | 26.1 | 28.1 | 32.5 | 36.3 | 41.6 | 47.7 | 55.2 | |||||||
L1 | 44.3 | 44.7 | 55 | 61.5 | 70.7 | 85 | 93.5 | ||||||||
L2 | 39.8 | 43.2 | 49 | 54.5 | 61.5 | 73.5 | 81 | ||||||||
P | 7.7 | 8.2 | 9.2 | 9.8 | 15.2 | 16.5 | 19.5 | ||||||||
R | 3 | 4 | |||||||||||||
X | 2.5 | 2.85 | 3.3 | 3.5 | 4.9 | 5.5 | |||||||||
δ | 0.2 ± 0.05 | 0.3 ( +0.05 / -0.1) | 0.5 (0 / -0.2) | ||||||||||||
Bore Size [mm] |
D | 12 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | ||||||
b | 4 | 5 | 6 | 8 | 12 | 14 | 18 | ||||||||
t | 13.8 | 17.3 | 22.8 | 28.3 | 33.3 | 43.3 | 53.8 | 64.4 |
