| Product Name: | DLD7 Single Disc ELECTORMAGNETIC CLUTCH DC - 24V | Bore Size: | 12 - 60 Mm |
|---|---|---|---|
| Outer Diameter: | 68 - 266.5 Mm | Thickness: | 44.3 - 93.5 Mm |
| Weight: | 0.79 - 21.2 Kg | Power: | 15 - 85 W |
| Highlight: | 85W Electromagnetic Clutch Brake,266.5mm Outer Diameter Electromagnetic Clutch Brake,266.5mm Outer Diameter electric clutch brake |
||
Product Description

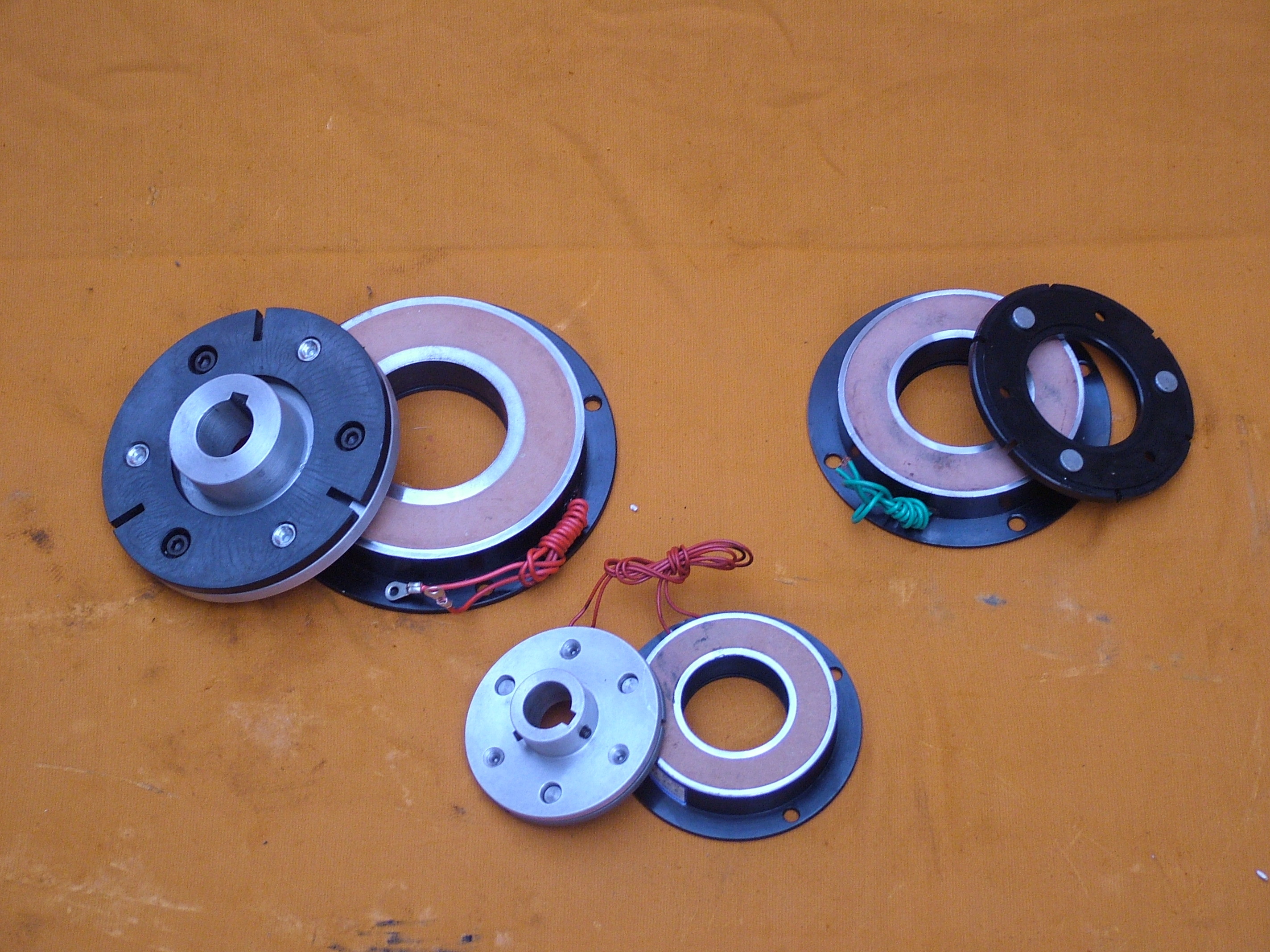

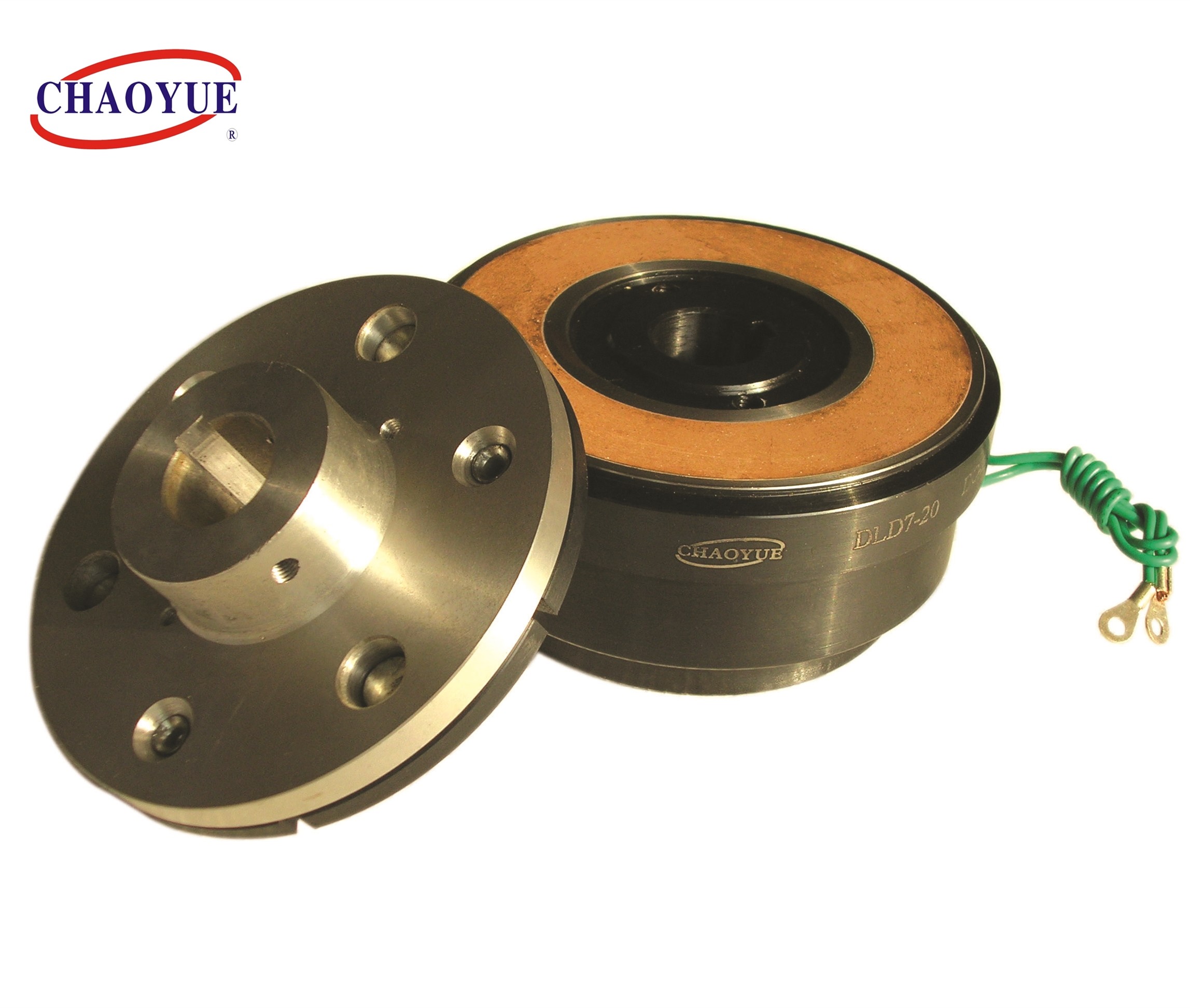

DLD7 Single Disc ELECTORMAGNETIC CLUTCH DC - 24V
1 is connected to cut off the acts of: mounting portion between the driving portion and the starter, the drive will not be stopped at the start of the connection will be cut off by the operation of the reaction is necessary.
2. shift: the case has a conversion rate when the job is on the way, a clutch case, can not be closed at the drive gear.
3. Reversible: Reversible load when the switching point, with use of the clutch outer is driven to swing forward as long.
4. The high frequency operation: intermittent operation in the fast cycle, repeated use of the motor ON, OFF limited frequency provided, and therefore the use of the clutch, so that rapid reaction, high-precision braking.
5. inching: mechanical actuation start position and engages, only the clutch can be instantaneous actuation.
Mounting example
| Model | DLD7 - 5 | DLD7 - 10 | DLD7 - 20 | DLD7 - 40 | DLD7 - 80 | DLD7 - 160 | DLD7 - 320 | ||||||||
| Friction Torque[N.m] | Dynamic | 5 | 10 | 20 | 40 | 80 | 160 | 320 | |||||||
| Static | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 | ||||||||
| Excitation Voltage [V] | DC - 24V | ||||||||||||||
| Power (20°C) [w] | 15 | 20 | 28 | 35 | 50 | 68 | 85 | ||||||||
| Max Rotating Speed [rpm] | 8000 | 6000 | 5000 | 4000 | 3000 | 3000 | 2000 | ||||||||
| Weight [kg] | 0.79 | 1.2 | 2.24 | 3.86 | 7 | 13.3 | 21.2 | ||||||||
|
Radial Size [mm] |
D1 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | |||||||
| D2 | 46 | 60 | 76 | 95 | 120 | 158 | 210 | ||||||||
| D3 | 34.5 | 41.7 | 51.5 | 61.5 | 79.5 | 99.5 | 124.5 | ||||||||
| B | 68 | 85.5 | 107 | 134.3 | 170 | 214 | 266.5 | ||||||||
| C | 57 | 68 | 85 | 100 | 127 | 152.4 | 152.4 | ||||||||
| G1 | 38 | 47 | 56 | 64.5 | 86.5 | 100 | 127 | ||||||||
| G2 | 46.5 | 55 | 64 | 72.5 | 101.5 | 115 | 142 | ||||||||
| V1 | 3 - 4.1 | 3 - 4.2 | 3 - 5.2 | 3 - 6.2 | 3 - 8.2 | 3 - 10.2 | 3 - 12.2 | ||||||||
| V2 | 3 - 6.3 | 3 - 9.5 | 3 - 11.5 | 3 - 13.5 | 3 - 17.5 | 3 - 21.5 | 3 - 26.5 | ||||||||
| V3 | 3 - 6.25 | 3 - 8.3 | 3 - 10.3 | 3 - 12.35 | 3 - 16.35 | 3 - 20.42 | 3 - 25 | ||||||||
| Y1 | 4.1 | 8.1 | |||||||||||||
| Y2 | 14 | 18 | 22 | 26 | |||||||||||
|
Axial Size [mm] |
H | 26.1 | 28.1 | 32.5 | 36.3 | 41.6 | 47.7 | 55.2 | |||||||
| L1 | 44.3 | 44.7 | 55 | 61.5 | 70.7 | 85 | 93.5 | ||||||||
| L2 | 39.8 | 43.2 | 49 | 54.5 | 61.5 | 73.5 | 81 | ||||||||
| P | 7.7 | 8.2 | 9.2 | 9.8 | 15.2 | 16.5 | 19.5 | ||||||||
| R | 3 | 4 | |||||||||||||
| X | 2.5 | 2.85 | 3.3 | 3.5 | 4.9 | 5.5 | |||||||||
| δ | 0.2 ± 0.05 | 0.3 ( +0.05 / -0.1) | 0.5 (0 / -0.2) | ||||||||||||
|
Bore Size [mm] |
D | 12 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | ||||||
| b | 4 | 5 | 6 | 8 | 12 | 14 | 18 | ||||||||
| t | 13.8 | 17.3 | 22.8 | 28.3 | 33.3 | 43.3 | 53.8 | 64.4 | |||||||
