Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | GC-B60130 / ASUN60 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5 pc |
| Price: | USD 70.00 - 100.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Inner Diameter: | 60 Mm | Outer Diameter: | 130 Mm |
|---|---|---|---|
| Thickness: | 46 Mm | Torque: | 1315 N.m |
| Weight: | 2.77 Kg | Overrunning Speed: | 525 Rpm |
| Highlight: | Package Machinery One Way Roller Clutch,Package Machinery Roller Clutch,GC-B60130 One Way Roller Clutch |
||
Product Description

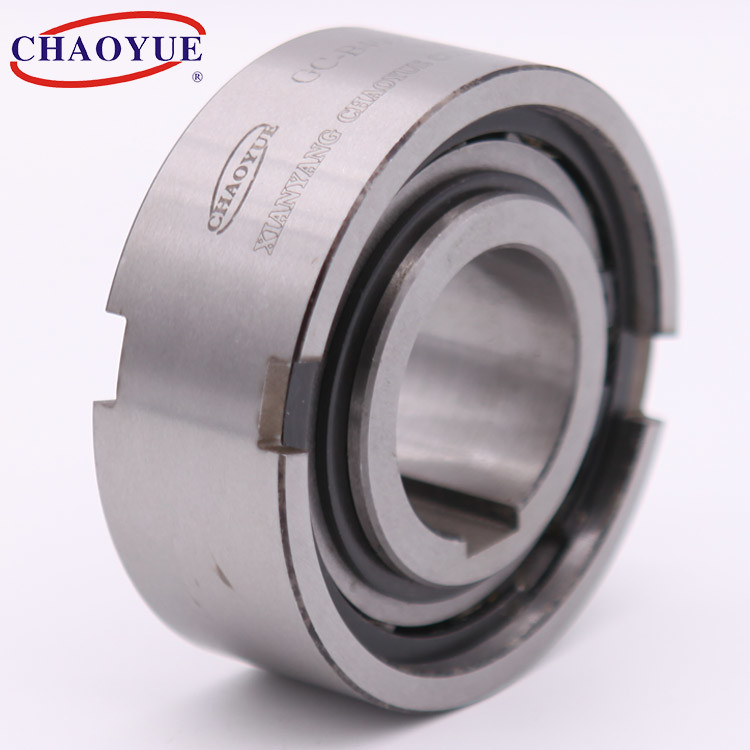

ASNU60 GC-B60130 one way roller clutch for package machinery
Type GC-B is a roller type freewheel non-bearing supported. Nominal outer diameter is the same as a series 63 ball bearings. Bearings are required to support axial and radial loads. Units are delivered grease lubricated.

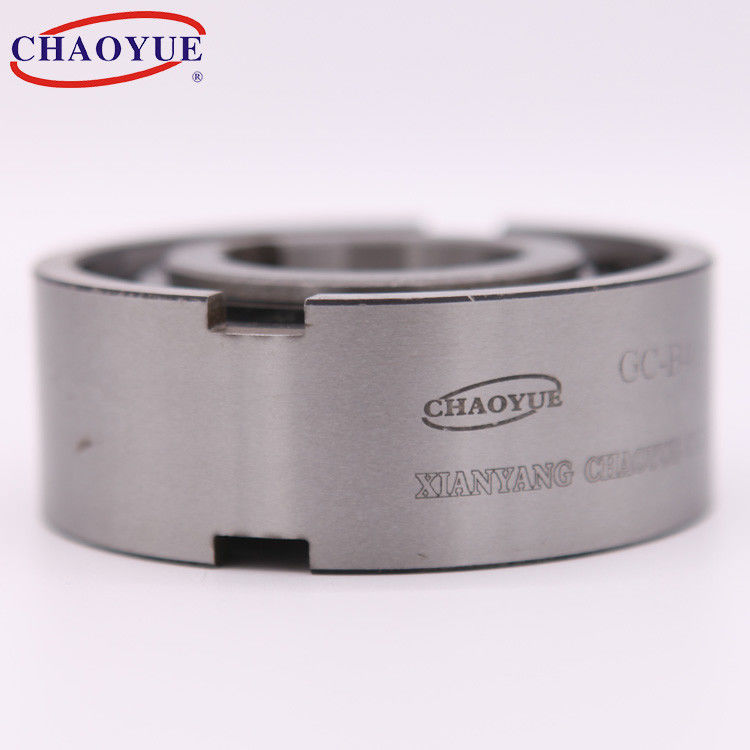

Standard arrangement is to install this type alongside a bearing with the same location tolerance. The inner race is keyed to the shaft. Additional side notches in the outer race provide for positive torque transmission.
The series extensive used in machinery system of conveyor, hosting, packaging, printing, papermaking, weaving, chemical, medical, food and so on.
Mounting Example
Drawing
| Type | Nominal Torque [N.m] | Overrunning Limiting Speed [r / min] | Dimension in Coutour [mm] | Weight | |||||
| Inner Race | Outer Race | d[h7] | D[h7] | L | bw x tw | bn x tn | |||
| GC-B60130 | 1315 | 375 | 525 | 60 | 130 | 46 | 18 x 5.6 | 20 x 4.9 | 2.77 |
