Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | CK-N30100T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5 pc |
| Price: | USD 50.00 - 100.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
|
Detail Information |
|||
| Inner Diameter: | 30 Mm | Outer Diameter: | 100 Mm |
|---|---|---|---|
| Torque: | 435 N.m | Thickness: | 48 Mm |
| Length: | 166 Mm | Keyway: | 10 Mm |
| Highlight: | Carbon steel Overrunning Clutch,Bucket Elevator Overrunning Clutch,CK-N30100T Overrunning Clutch |
||
Product Description

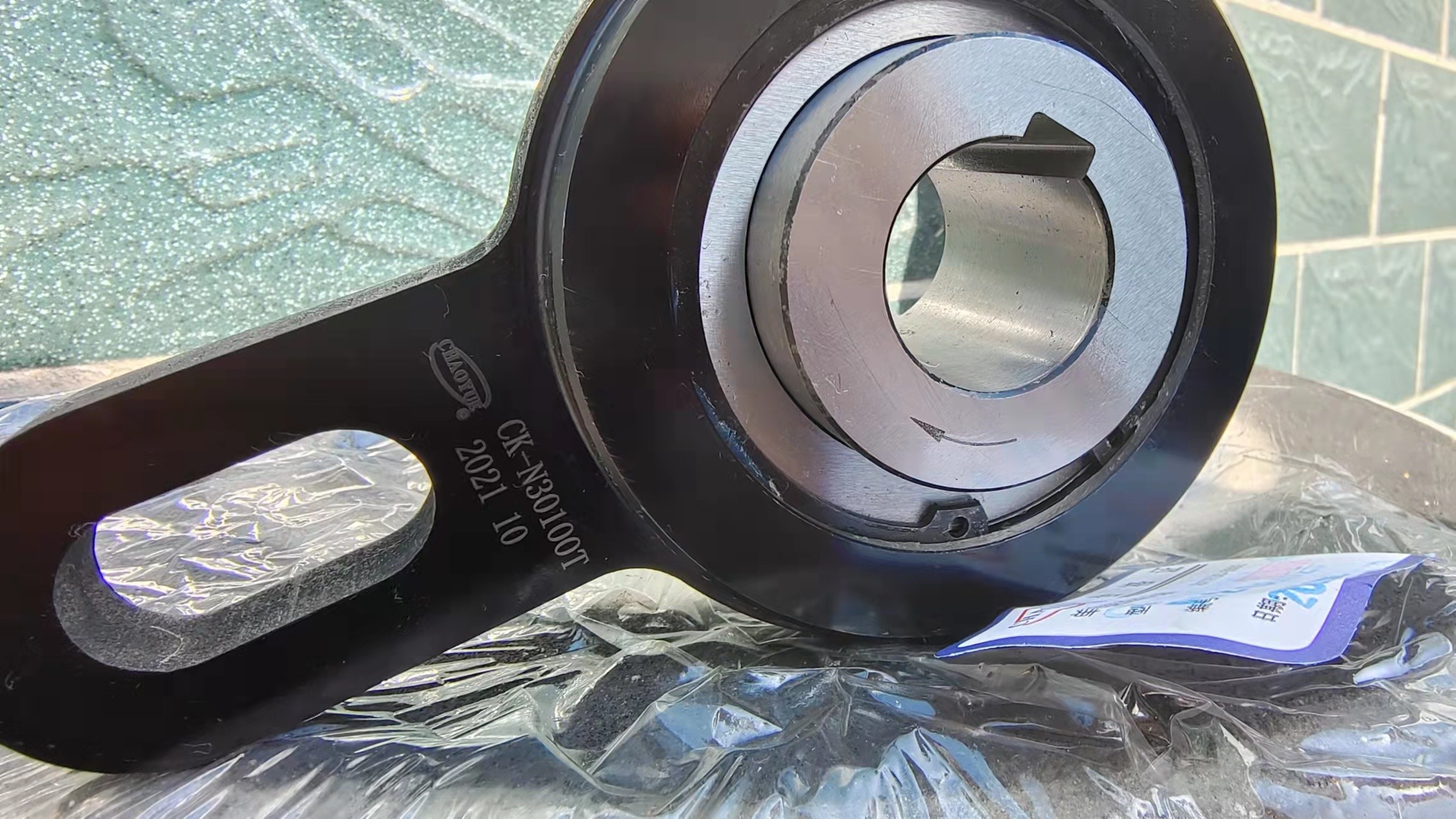

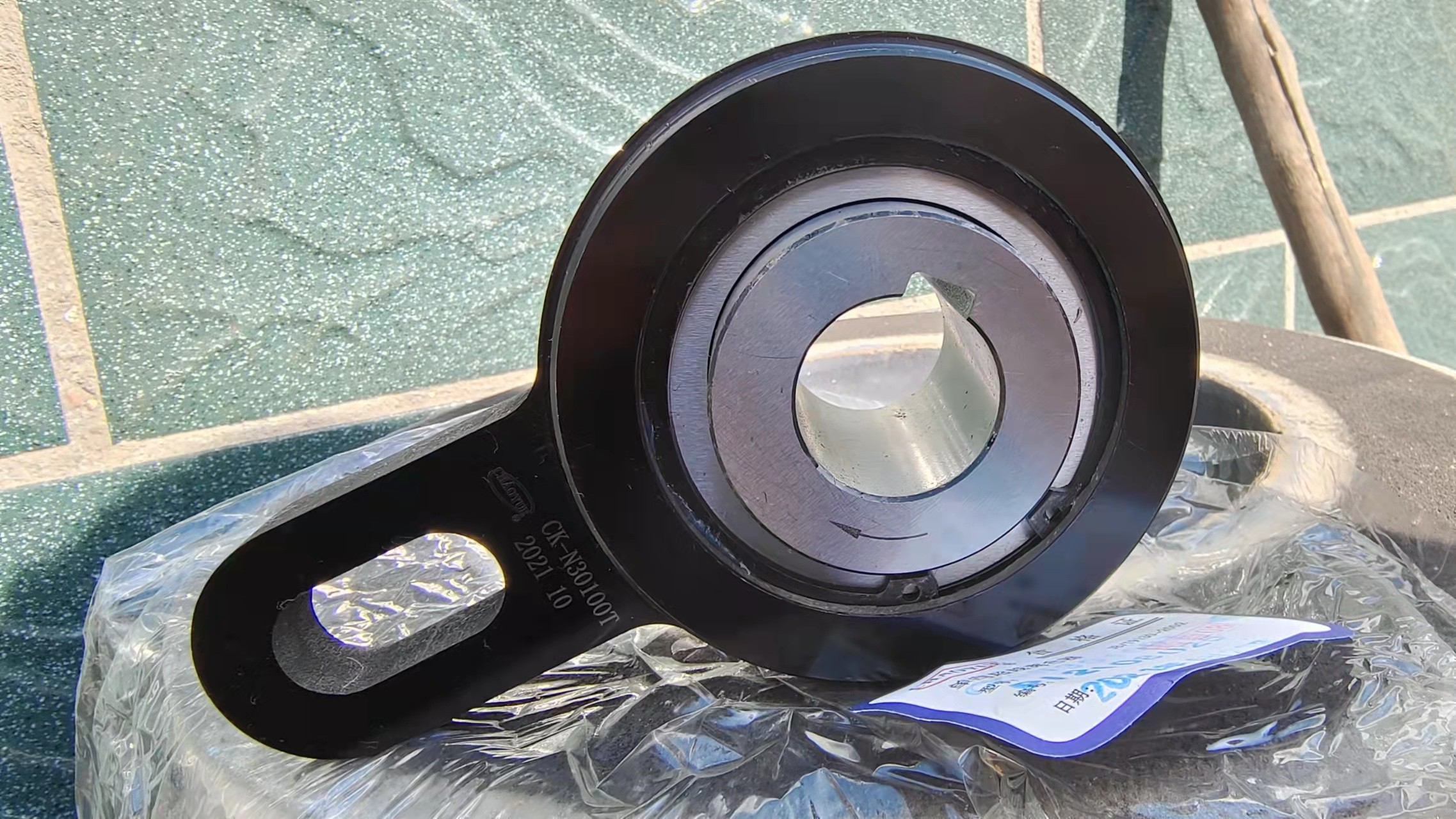

CK-N30100T Carbon Steel Overrunning Clutch For Bucket Elevator
CK-N30100T is a specific type of sprag overrunning clutch. This model without bearing supported and oil seal. The clutch with a torque arm, suitable to apply at low speed device.
Secured to a fixed part of the machine and passing through the slot in the torque arm while assembly. Provides the rotating stop. Radial clearance on the bolt should be equal to 1% of the solt with. Prestress is forbidden to apply on the torque arm and the bearing.
CK-N30100T mainly used as a backstop or indexing clutch for packaging and printing machinery. It could bring high torque load with a limited space requirement.
Mounting Example
Drawing
| Type | Nominal Torque [N.m] | Overrunning Limiting Speeds [r/min] | Dimension in Contour [mm] | Weight [KG] | ||||||||||
| d [H7] | D | D1 | C | L | L1 | L2 | L3 | H | H1 | H2 | ||||
| CK-N30100T | 435 N.m | 400 | 30 | 100 | 106 | 48 | 32 | 15 | 40 | 18 | 113 | 102.5 | 35 | 2.5 |
