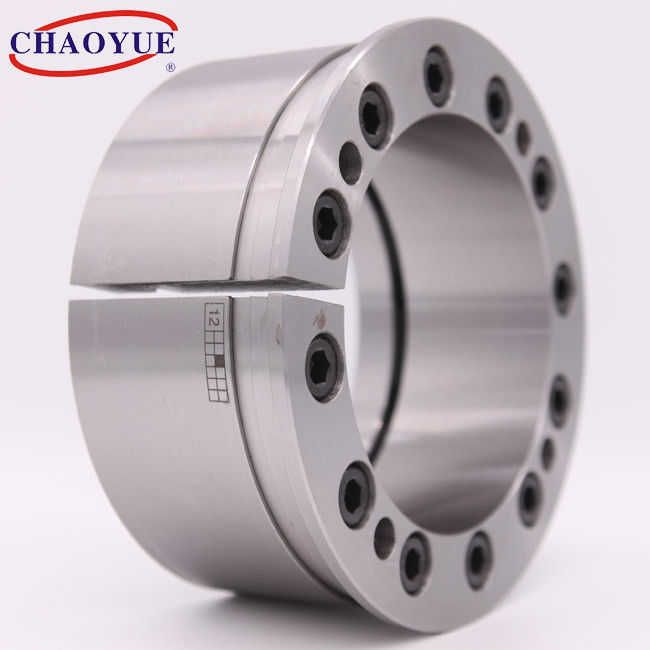

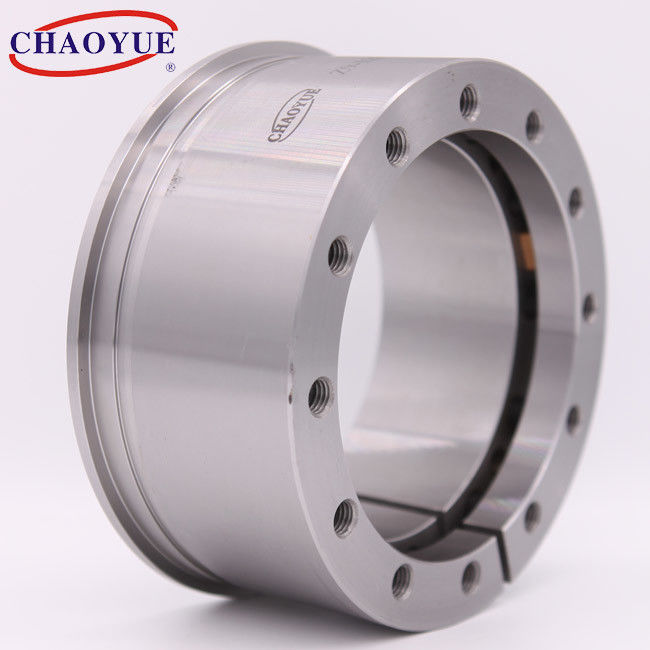

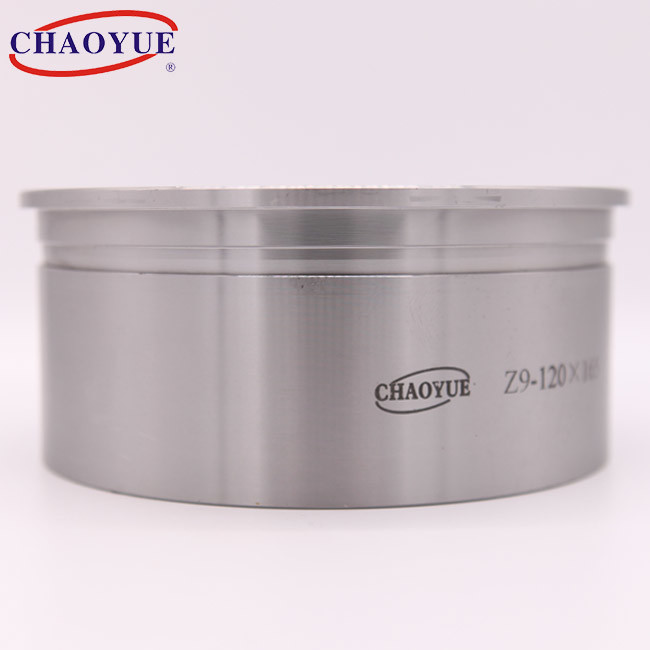

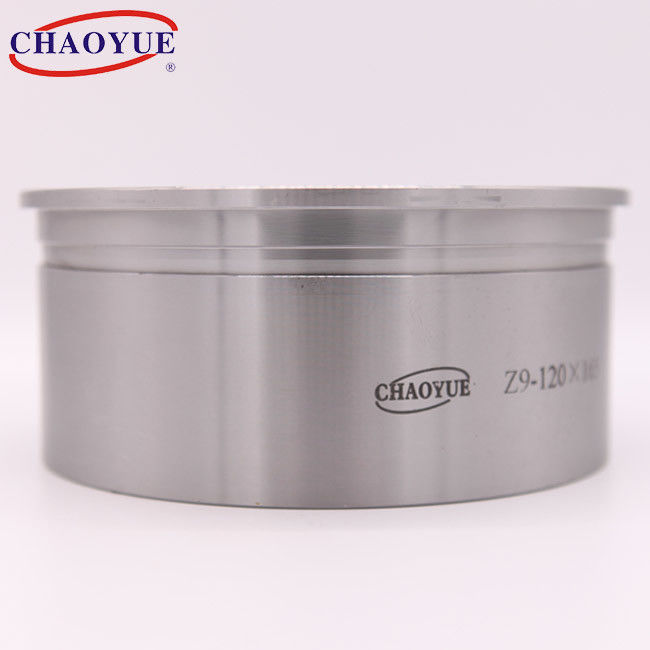

515mm OD 410kN.m Keyless Coupling Sleeve Type Expansion Joint
515mm OD 410kN.m Keyless Coupling Sleeve Type Expansion Joint 515mm OD 410kN.m Keyless Coupling Sleeve Type Expansion Joint 515mm OD 410kN.m Keyless Coupling Sleeve Type Expansion Joint

515mm OD 410kN.m Keyless Coupling Sleeve Type Expansion Joint

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z9A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 35.00 - 950.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 100 - 420 Mm Outer Diameter: 145 - 515 Mm
Thickness: 66 - 149 Mm Torque: 9.6 - 410 KN.m
Bolt: M10 - M22 Weight: 4.3 - 75.4 Kg
Highlight:

410kN.m keyless coupling

,

515mm OD keyless coupling

,

410kN.m sleeve type expansion joint

Product Description

Z9A Textile Machinery 45# Clamp Shaft Power Locker



515mm OD 410kN.m Keyless Coupling Sleeve Type Expansion Joint 0





515mm OD 410kN.m Keyless Coupling Sleeve Type Expansion Joint 1



Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
N/mm2		 Pressure on Hub
N/mm2		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 e B d1 n Axial Force
[kN]		 Toruqe
[kN.m]
100 145 66 45 5 65 M10 10 192 9.6 102 70 83 4.3
110 155 66 45 5 65 M10 12 197 10.5 93 66 83 4.7
120 165 66 45 5 65 M10 12 216 13 96 70 83 5
130 180 75 54 6 72 M12 12 287 17.8 100 78 145 6.9
140 190 75 54 6 72 M12 12 287 20.2 94 69 145 7.2
150 200 75 54 6 72 M12 12 287 21.6 88 66 145 7.8
160 210 75 54 6 72 M12 15 360 28.8 101 77 145 8.2
170 225 75 54 6 72 M12 16 383 32.6 101 76 145 9.6
180 235 75 54 6 72 M12 18 431 38.8 108 82 145 10.1
190 250 84 59 6 81 M14 15 493 46.8 106 80 230 14.3
200 260 84 59 6 81 M14 16 526 52.8 100 77 230 13.8
220 285 84 59 6 81 M16 14 640 70 119 92 355 16.3
240 305 102 76 7 98 M16 16 731 88 96 75 355 21.3
260 325 102 76 7 98 M16 18 822 107 103 82 355 22.8
280 355 110 84 8 106 M16 20 910 128 96 75 355 30.3
300 375 110 84 8 106 M16 22 1000 151 99 79 355 33
320 405 132 99 8 125 M20 18 1280 206 101 80 690 47.8
340 425 132 99 8 125 M20 20 1420 242 106 85 690 49.7
360 455 149 110 8 140 M22 20 1770 319 113 89 930 66.2
380 475 149 110 8 140 M22 20 1770 337 109 87 930 69.7
400 485 149 110 8 140 M22 20 1770 355 101 83 930 71.7
420 515 149 110 8 140 M22 22 1980 410 107 87 930 75.4
