Home ProductsShaft Clamping Elements470 kN.m 177mm Thickness Shaft Clamping Elements For Industry Machinery
470 kN.m 177mm Thickness Shaft Clamping Elements For Industry Machinery
470 kN.m 177mm Thickness Shaft Clamping Elements For Industry Machinery

470 kN.m 177mm Thickness Shaft Clamping Elements For Industry Machinery

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z18
Payment & Shipping Terms:
Minimum Order Quantity: 5 pc
Price: USD 22.00 - 450.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 45 - 320 Mm Outer Diameter: 75 - 405 Mm
Thickness: 64 - 177 Mm Torque: 3.9 - 470 KN.m
Bolt: M8 - M20 Weight: 1.5 - 71 Kg
Highlight:

470 kN.m Shaft Clamping Elements

,

177mm Thickness Shaft Clamping Elements

,

470 kN.m shaft hub connection

Product Description

75 - 405 Mm Z18 Industry Machinery Power Lock Connection Part

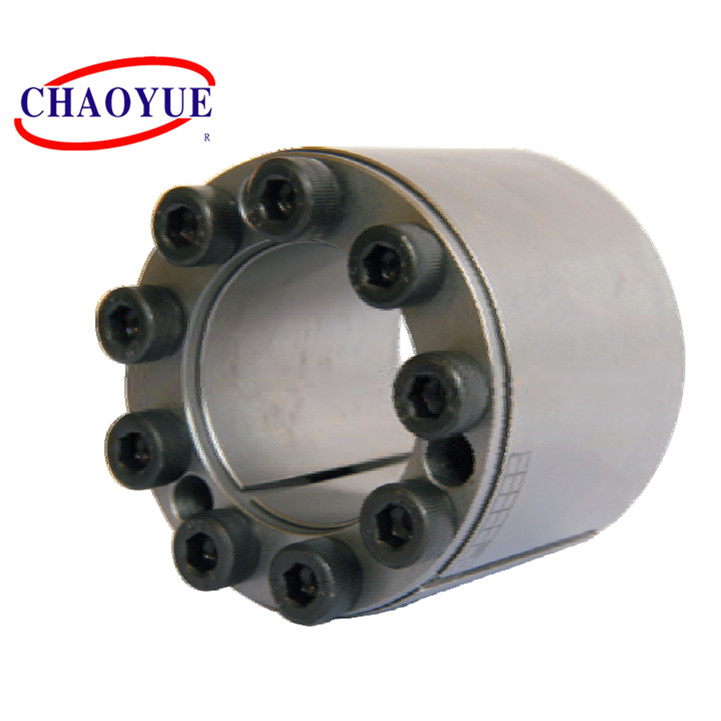

470 kN.m 177mm Thickness Shaft Clamping Elements For Industry Machinery 0



Mounting Example

470 kN.m 177mm Thickness Shaft Clamping Elements For Industry Machinery 1





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D I L d1 n Axial Force
[kN]		 Torque
[kN·m]
45 75 64 72 M8 9 174 3.9 185 110 41 1.5
48 80 64 72 M8 9 174 4.15 170 105 41 1.7
50 80 64 72 M8 9 174 4.3 165 105 41 1.6
55 85 64 72 M8 9 174 4.8 150 95 41 1.7
60 90 64 72 M8 11 213 6.4 170 110 41 1.8
65 95 64 72 M8 11 213 6.9 155 105 41 2
70 110 78 88 M10 11 338 11.8 185 115 83 3.6
75 115 78 88 M10 11 338 12.7 170 110 83 3.8
80 120 78 88 M10 12 369 14.7 175 115 83 4
85 125 78 88 M10 12 369 15.7 165 110 83 4.3
90 130 78 88 M10 13 400 18 170 115 83 4.5
95 135 78 88 M10 13 400 19 160 110 83 4.7
100 145 100 112 M12 12 538 26.9 160 110 145 7.2
110 155 100 112 M12 13 583 32 155 110 145 7.7
120 165 100 112 M12 15 673 40.3 165 120 145 8.3
130 180 116 130 M14 13 800 52 155 115 230 11.7
140 190 116 130 M14 15 923 64.6 170 125 230 12.5
150 200 116 130 M14 16 985 73.8 165 125 230 13.2
160 210 116 130 M14 17 1045 83.7 165 125 230 14
170 225 146 162 M16 15 1283 109 150 115 355 20.6
180 235 146 162 M16 16 1369 123.2 150 115 355 21.6
190 250 146 162 M16 17 1454 138 150 115 355 25
200 260 146 162 M16 17 1454 145.4 145 110 355 26.2
220 285 146 162 M16 20 1710 188 155 120 355 31.1
240 305 146 162 M16 22 1880 225 155 120 355 33.6
260 325 146 162 M16 22 1880 244 145 115 355 36.1
280 355 177 197 M20 20 2670 373 155 120 690 54.9
300 375 177 197 M20 22 2930 440 155 125 690 58.3
320 405 177 197 M20 22 2930 470 145 115 690 71
