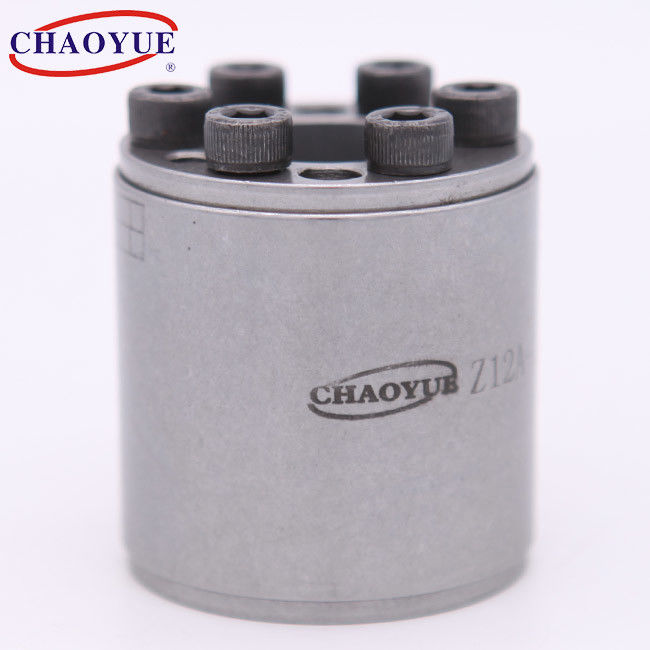

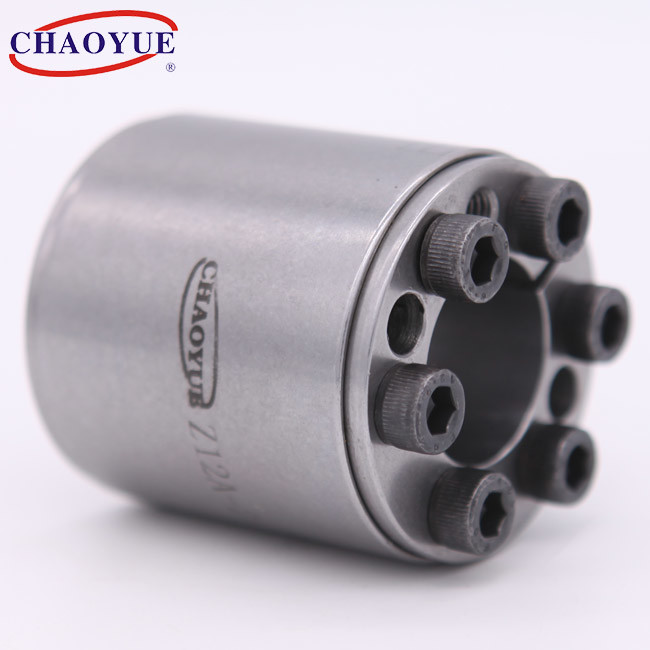

Z12A Shaft Power Lock Keyless Locking Assembly



Various Size 104kN.M 162mm Length Climax Keyless Bushing Shaft Lock 0





Mounting Example



Various Size 104kN.M 162mm Length Climax Keyless Bushing Shaft Lock 1

Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 d1 n Axial Force
[kN]		 Torque
[kN·m]
25 55 46 40 32 M6 6 67 0.84 297 101 17 0.47
28 55 46 40 32 M6 6 67 0.94 265 101 17 0.44
30 55 46 40 32 M6 6 67 1 248 101 17 0.42
35 60 60 54 44 M6 7 74 1.3 165 87 17 1
40 65 62 54 44 M6 8 86 1.6 176 96 17 1.1
45 75 62 54 44 M8 7 145 3.26 251 116 41 1.2
50 80 72 64 56 M8 8 165 4.15 200 98 41 1.4
55 85 72 64 56 M8 9 186 5.15 205 104 41 1.6
60 90 72 64 56 M8 10 207 6.2 202 106 41 1.7
65 95 72 64 56 M8 10 207 6.75 187 100 41 1.9
70 110 88 78 70 M10 10 329 11.5 223 114 83 3.1
80 120 88 78 70 M10 11 362 14.5 215 115 83 3.5
90 130 88 78 70 M10 12 390 17.8 208 115 83 3.8
100 145 112 100 90 M12 14 527 26.3 200 107 145 6.1
110 155 112 100 90 M12 17 575 31.8 198 110 145 6.6
120 165 112 100 90 M12 18 670 40.4 212 120 145 7.2
130 180 130 116 104 M14 16 759 49 180 112 230 11.1
140 190 130 116 104 M14 18 842.8 59 186 124 230 11.8
150 200 130 116 104 M14 19 896.6 67 185 127 230 12.6
160 210 130 116 104 M14 20 950 76 183 128 230 13.4
170 225 162 146 134 M16 19 1223.5 104 172 113 355 19.6
180 235 162 146 134 M16 20 1288.8 116 172 115 355 20.6
190 250 134 146 162 M16 21 1363 129.5 12 116 355 23.8
200 260 134 146 162 M16 22 1437.5 143.7 172 112 355 24.9
220 285 134 146 162 M16 24 1581.8 174 172 115 355 29.6
240 305 134 146 162 M16 26 1725 207 172 119 355 31.9
260 325 134 146 162 M16 28 1846 240 170 117 355 34.3
280 355 165 177 197 M20 24 2428.5 340 168 117 690 52
300 375 165 177 197 M20 25 2540 381 161 123 690 55.3
320 405 165 177 197 M20 28 2881 461 175 119 690 67.3
340 425 165 177 197 M20 29 2994 509 171 119 690 71
360 455 190 202 224 M22 28 3588.8 646 169 115 930 96.5
380 475 190 202 224 M22 30 3821 726 170 115 930 101.2
400 495 190 202 224 M22 31 3960 792 168 120 930 106
420 515 190 202 224 M22 32 4100 861 165 116 963 110.7
440 535 190 202 224 M22 24 4260 937 165 112 930 110
460 555 190 202 224 M22 24 4260 980 158 107 930 113
480 575 190 202 224 M22 28 5000 1200 176 121 930 118
500 595 190 202 224 M22 28 5000 1240 169 117 930 122
520 615 190 202 224 M22 30 5330 1390 174 121 930 126
540 635 190 202 224 M22 30 5330 1440 168 117 930 131
560 655 190 202 224 M22 32 5680 1590 172 121 930 135
580 675 190 202 224 M22 33 5860 1705 172 121 930 140
600 695 190 202 224 M22 33 5860 1760 166 118 930 144
