Product Description

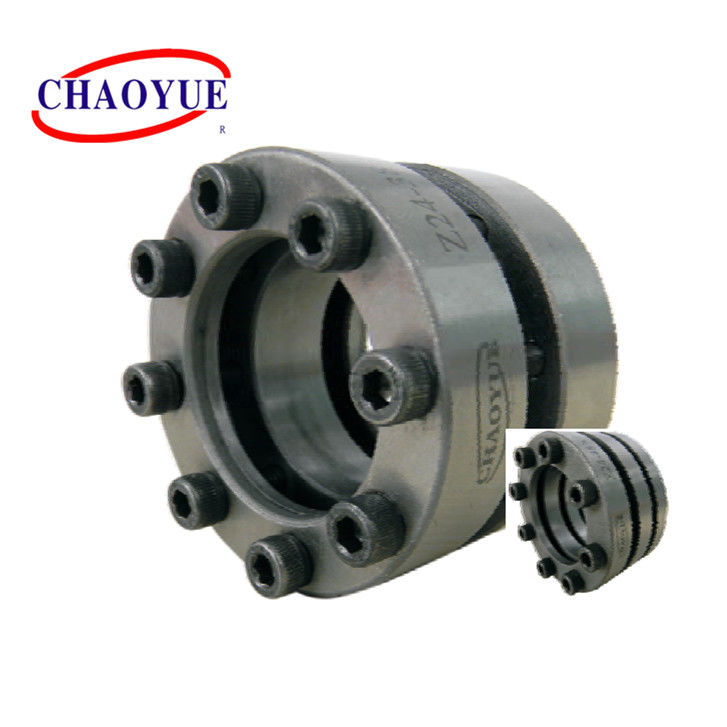

Z24 Compact Structure Keyless Shaft Locking Assembly

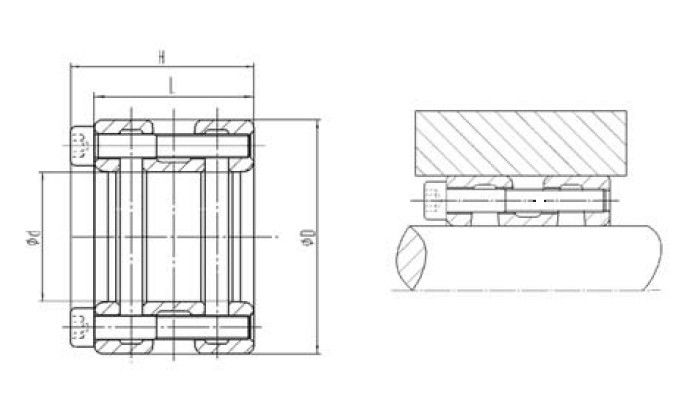

Mounting Example
| Fundamental Dimension [mm] | Bolt | Rated Load | Torque of Tighten Bolt [N.m] |
Weight [kg] |
|||||
| d | D | L | H | d1 | n | Axial Force [N] |
Torque [N·m] |
||
| 22 | 35 | 26 | 29 | M3 | 6 | 3450 | 38 | 2 | 0.08 |
| 25 | 38 | 26 | 29 | M3 | 6 | 6800 | 85 | 2 | 0.08 |
| 28 | 45 | 26 | 30 | M4 | 6 | 7500 | 105 | 4 | 0.13 |
| 30 | 47 | 26 | 30 | M4 | 6 | 12600 | 190 | 4 | 0.25 |
| 38 | 60 | 36 | 41 | M5 | 8 | 16680 | 317 | 7 | 0.3 |
| 40 | 62 | 36 | 41 | M5 | 8 | 27000 | 540 | 7 | 0.33 |
| 42 | 65 | 36 | 41 | M5 | 8 | 30500 | 640 | 7 | 0.36 |
| 45 | 70 | 41 | 46 | M5 | 8 | 38200 | 860 | 7 | 0.4 |
| 48 | 75 | 41 | 46 | M5 | 8 | 39600 | 950 | 7 | 0.5 |
| 50 | 75 | 41 | 46 | M6 | 8 | 41600 | 1040 | 12 | 0.52 |
| 55 | 80 | 41 | 47 | M6 | 8 | 48000 | 1320 | 12 | 0.55 |
| 60 | 85 | 41 | 47 | M6 | 8 | 54600 | 1640 | 12 | 0.61 |
| 65 | 95 | 77 | 85 | M8 | 8 | 69000 | 2240 | 40 | 1.52 |
| 70 | 100 | 77 | 85 | M8 | 8 | 74300 | 2600 | 40 | 1.6 |
| 75 | 105 | 77 | 85 | M8 | 8 | 77300 | 2900 | 40 | 1.71 |
| 80 | 110 | 77 | 85 | M8 | 8 | 80250 | 3210 | 40 | 1.8 |
| 85 | 120 | 92 | 100 | M8 | 8 | 83700 | 3560 | 40 | 2.71 |
