Product Description

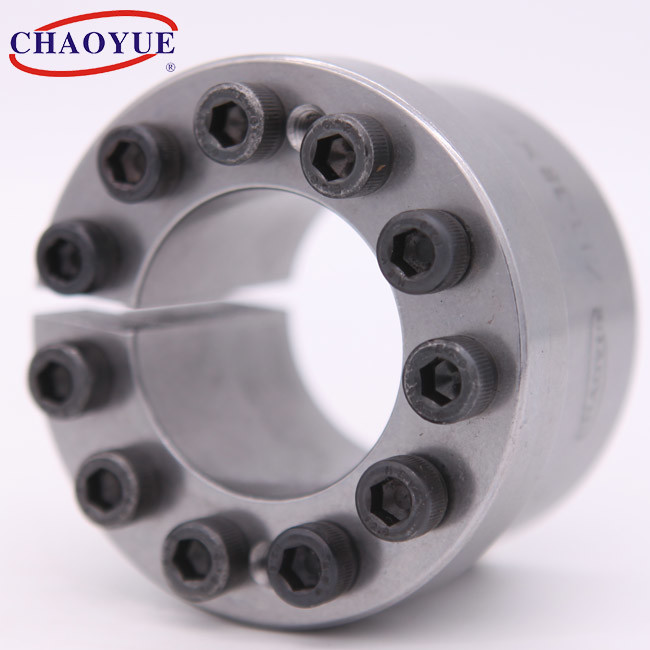

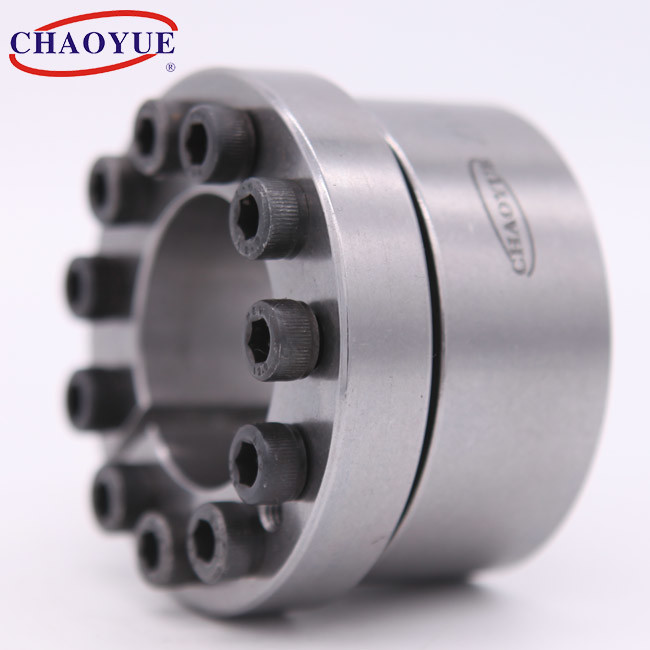

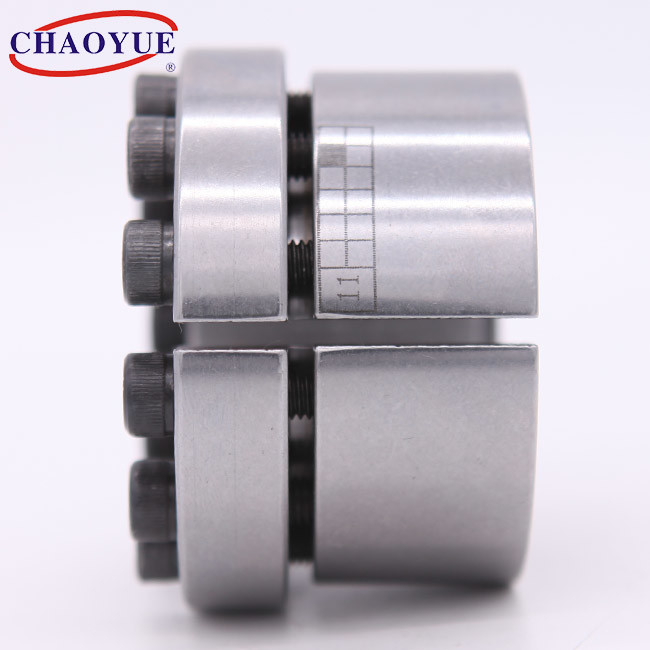

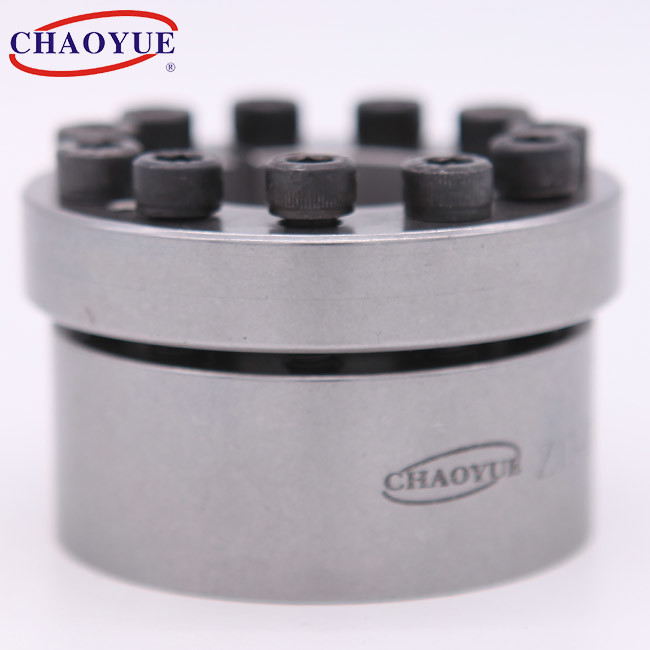

Z13 Power Transmission Shaft Keyless Locking Device



M14 Bolt 180mm ID Keyless Locking Assembly Power Transmission 0





Mounting Example



M14 Bolt 180mm ID Keyless Locking Assembly Power Transmission 1





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 L3 D1 d1 n Torque
[kN·m]		 Axial Force
[kN]
20 47 48 42 29 26 53 M6 7 0.54 54 276 117 14 0.51
22 47 48 42 29 26 53 M6 7 0.6 54 253 118 14 0.53
24 50 48 42 29 26 56 M6 7 0.65 54 230 110 14 0.55
25 50 48 42 29 26 56 M6 7 0.68 54 222 111 14 0.65
28 55 48 42 29 26 61 M6 7 0.76 54 198 100 14 0.62
30 55 48 42 29 26 61 M6 7 0.82 54 186 101 14 0.8
32 60 48 42 29 26 66 M6 11 1.31 82 261 139 14 0.7
35 60 48 42 29 26 66 M6 11 1.44 82 240 140 14 0.81
38 65 48 42 29 26 71 M6 11 1.56 82 220 129 14 0.77
40 65 48 42 29 26 71 M6 11 1.64 82 209 129 14 1.33
42 75 59 51 34.4 30 81 M8 6 2.13 101 213 119 41 1.24
45 75 59 51 34.4 30 81 M8 6 2.28 101 199 119 41 1.44
48 80 59 51 34.4 30 86 M8 6 2.43 101 186 112 41 1.41
50 80 59 51 34.4 30 86 M8 6 2.53 101 179 112 41 1.35
55 85 59 51 34.4 30 91 M8 9 4.18 152 244 158 41 1.45
60 90 59 51 34.4 30 96 MM8 9 4.56 152 224 149 41 1.55
65 95 59 51 34.4 30 102 M8 9 4.94 152 206 141 41 1.67
70 110 66 56 45 40 117 M10 7 6.5 186 176 112 83 2.61
75 115 66 56 45 40 122 M10 7 7 186 165 107 83 2.75
80 120 66 56 45 40 127 M10 7 7.4 186 153 102 83 2.89
85 125 66 56 45 40 132 M10 8 9 213 165 112 83 3.04
90 130 66 56 45 40 137 M10 8 9.6 213 157 109 83 3.18
95 135 66 56 45 40 142 M10 10 12.6 267 185 130 93 3.33
100 145 77 65 52 46 153 M12 7 13.3 270 153 105 145 4.62
110 155 77 65 52 46 163 M12 7 14.7 270 140 99 145 5
120 165 77 65 52 46 173 M12 8 18.4 309 147 107 145 5.37
130 180 77 65 52 46 188 M12 10 25.1 388 171 124 145 6.46
140 190 87.5 73.5 58.5 51 199 M14 11 40.15 586 213 157 230 7.73
150 200 87.5 73.5 58.5 51 209 M14 12 47 639 217 163 230 8.21
160 210 87.5 73.5 58.5 51 219 M14 13 54.3 692 220 167 230 8.64
170 225 87.5 73.5 58.5 51 234 M14 14 63 746 226 171 230 10.14
180 235 87.5 73.5 58.5 51 244 M14 14 66 746 212 162 230 10.66
