1130 kN.m 710mm OD Keyless Locking Assembly Hub Shaft Connection

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z15
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 10.00 - 1000.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 20 - 600 Mm Outer Diameter: 47 - 710 Mm
Thickness: 23 - 113 Mm Torque: 0.34 - 1130 KN.m
Bolt: M6 - M24 Weight: 0.25 - 100.3 Kg
High Light:

1130 kN.m Keyless Locking Assembly

,

710mm OD Keyless Locking Assembly

,

1130 kN.m hub shaft connection

Product Description

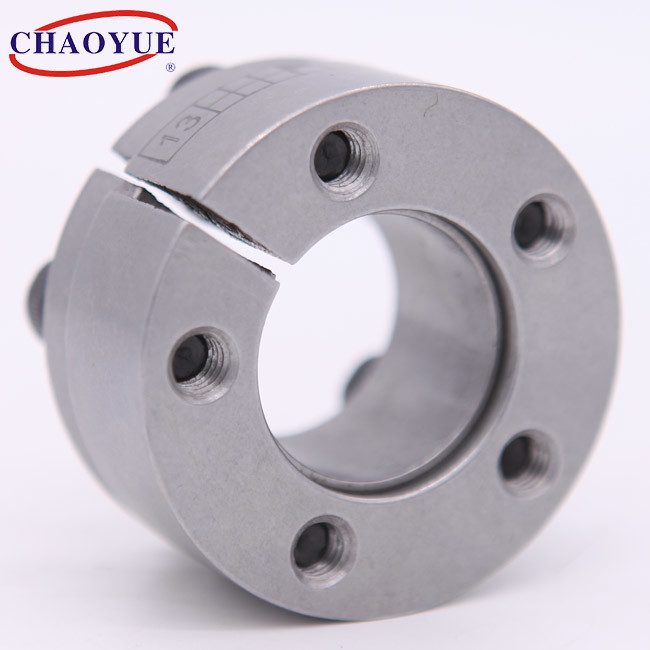

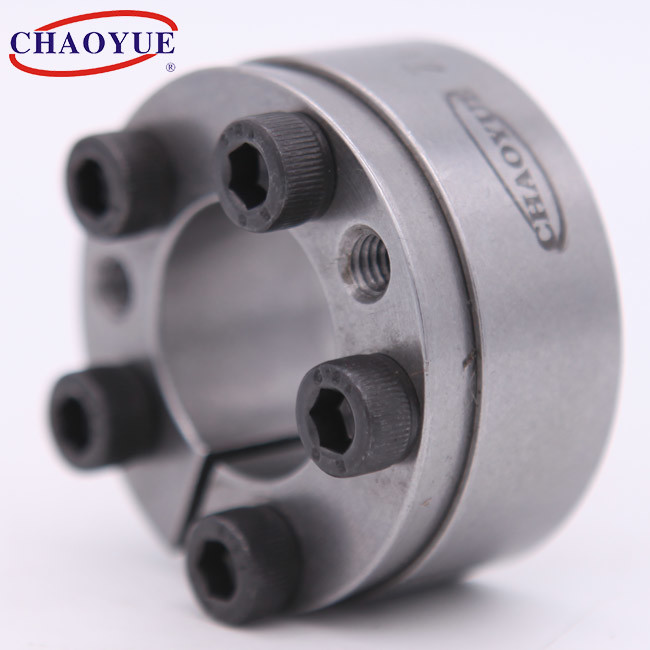

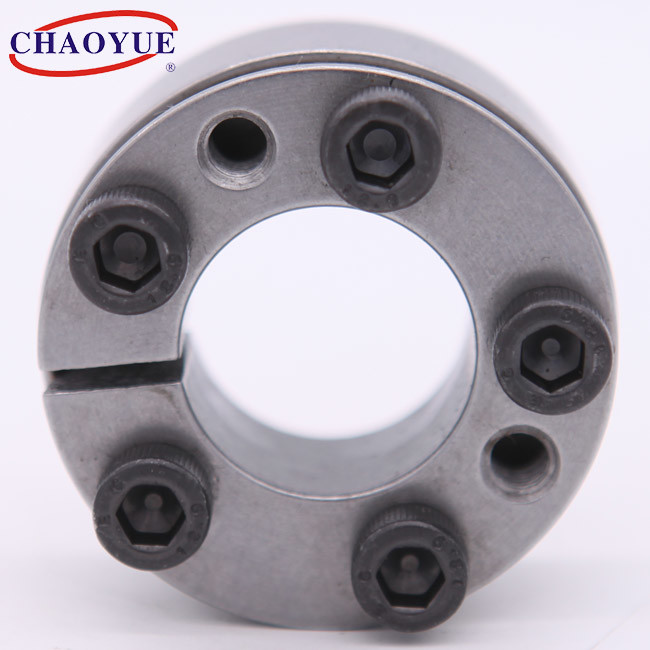

Z15 Power Transmission Parts Mechanical Locking Device



1130 kN.m 710mm OD Keyless Locking Assembly Hub Shaft Connection 0






Mounting Example



1130 kN.m 710mm OD Keyless Locking Assembly Hub Shaft Connection 1

Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]
Pressure on Hub
[N / mm2]
Torque of Tighten Bolt
[N.m]
Weight
[kg]
d D L L1 L2 L3 d1 n Torque
[kN·m]
Axial Force
[kN]
20 47 29 23 17 20 M6 5 0.34 34 242 121 17 0.25
22 47 29 23 17 20 M6 5 0.38 34 220 121 17 0.24
24 50 29 23 17 20 M6 5 0.41 34 202 114 17 0.27
25 50 29 23 17 20 M6 5 0.43 34 194 114 17 0.29
28 55 29 23 17 20 M6 6 0.6 42 207 124 17 0.31
30 55 29 23 17 20 M6 6 0.64 42 194 124 17 0.3
35 60 29 23 17 20 M6 7 0.9 51 194 133 17 0.33
40 65 29 23 17 20 M6 8 1.03 51 194 140 17 0.37
45 75 36 28 20 24 M8 6 1.8 80 200 144 41 0.62
50 80 36 28 20 24 M8 7 2.3 80 210 156 41 0.67
55 85 36 28 20 24 M8 8 2.9 107 218 169 41 0.72
60 90 36 28 20 24 M8 8 3.2 107 200 160 41 0.77
65 95 36 28 20 24 M8 9 3.8 120 208 171 41 0.82
70 110 44 34 24 29 M10 8 6 170 225 173 83 1.5
75 115 44 34 24 29 M10 8 6.4 170 210 166 83 1.59
80 120 44 34 24 29 M10 8 6.8 170 197 159 83 1.67
85 125 44 34 24 29 M10 9 8.1 190 209 171 83 1.76
90 130 44 34 24 29 M10 10 9.6 210 219 183 83 1.84
95 135 44 34 24 29 M10 10 10.1 210 207 176 83 1.9
100 145 50 38 28 33 M12 8 11 220 190 154 145 2.58
110 155 50 38 28 33 M12 9 14 250 194 162 145 2.79
120 165 50 38 28 33 M12 10 17 280 198 170 145 3
130 180 55 43 33 38 M12 12 23 350 190 158 145 4.1
140 190 55 43 33 38 M12 12 24 345 177 150 145 4.37
150 200 55 43 33 38 M12 14 30 400 192 166 145 4.63
160 210 55 43 33 38 M12 15 35 440 193 170 145 4.9
170 225 63 49 38 43 M14 12 41 480 176 151 230 6.56
180 235 63 49 38 43 M14 14 51 56 194 168 230 6.9
190 250 71 57 46 51 M14 16 61 640 177 150 230 9.27
200 260 71 57 46 51 M14 18 72 700 190 162 230 9.7
220 285 77 61 50 55 M16 16 99 900 198 168 355 12.3
240 305 77 61 50 55 M16 16 108 900 181 157 355 13.3
260 325 77 61 50 55 M16 18 130 1000 188 165 355 14.3
280 355 91 73 60 65 M18 18 170 1200 178 152 485 21.4
300 375 91 73 60 65 M18 20 200 1350 184 160 485 22.7
320 405 105 85 72 77 M20 20 275 1700 189 160 690 32.2
340 425 105 85 72 77 M20 20 290 1700 178 152 690 34
360 455 121 99 84 89 M22 20 385 2000 181 152 930 47.2
380 475 121 99 84 89 M22 21 430 2200 180 153 930 49.5
400 495 121 99 84 89 M22 21 450 2200 171 147 930 51.8
420 515 121 99 84 89 M22 24 545 2500 186 161 930 54.2
440 545 137 113 96 101 M24 24 660 3000 181 154 1200 72
460 565 137 113 96 101 M24 24 690 3000 173 148 1200 74.9
480 585 137 113 96 101 M24 24 720 3000 166 143 1200 77.9
500 605 137 113 96 101 M24 28 880 3400 186 162 1200 80.8
520 630 137 113 96 101 M24 28 915 3400 179 155 1200 88.1
540 650 137 113 96 101 M24 28 950 3400 172 150 1200 91.1
560 670 137 113 96 101 M24 30 1060 3700 178 156 1200 94.2
580 690 137 113 96 101 M24 30 1100 3700 172 152 1200 97.3
600 710 137 113 96 101 M24 30 1130 3700 166 148 1200 100.3
