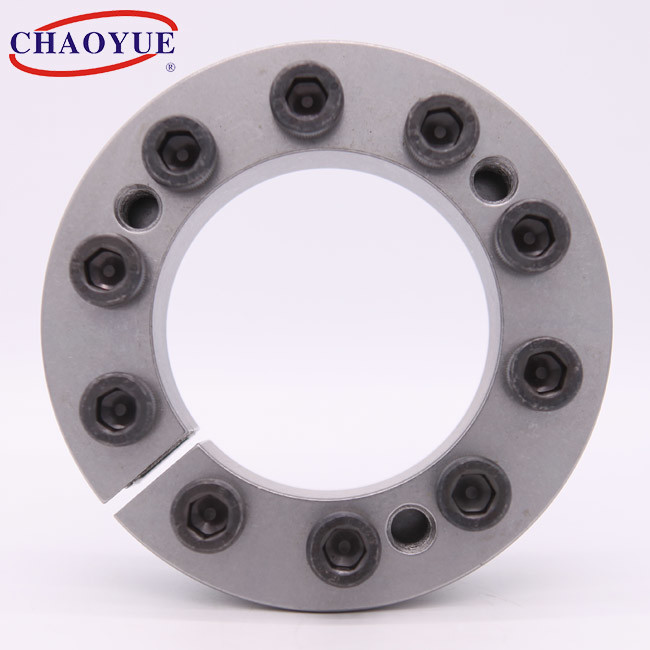

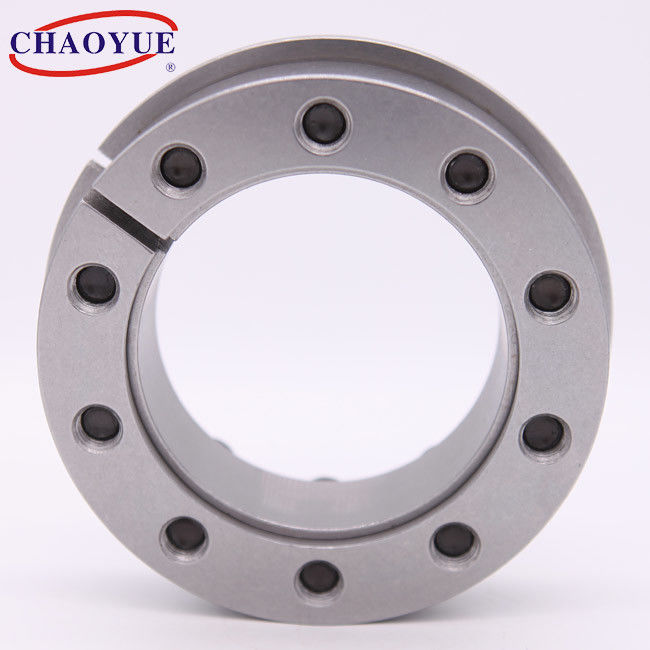

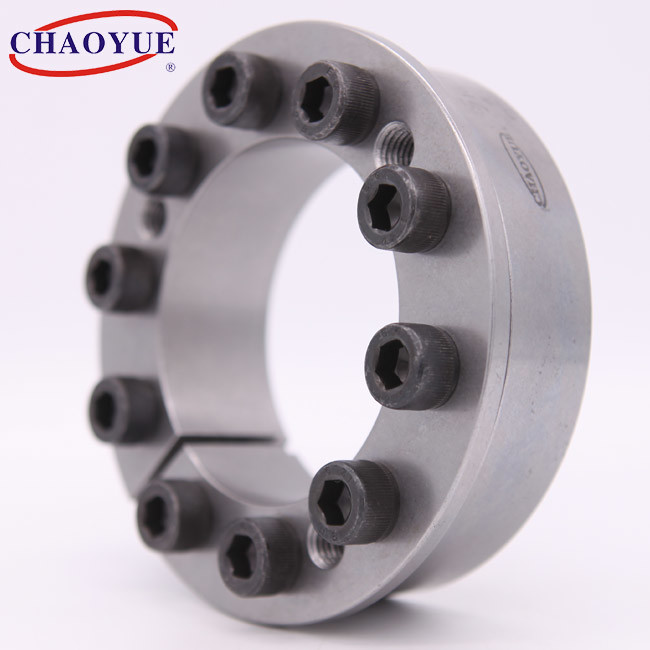

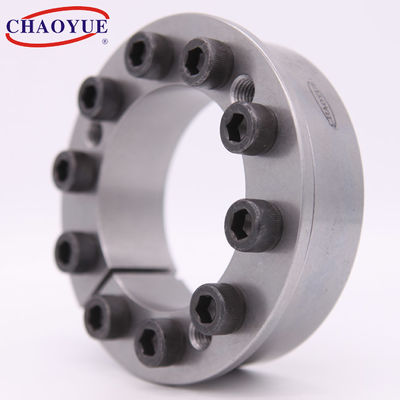

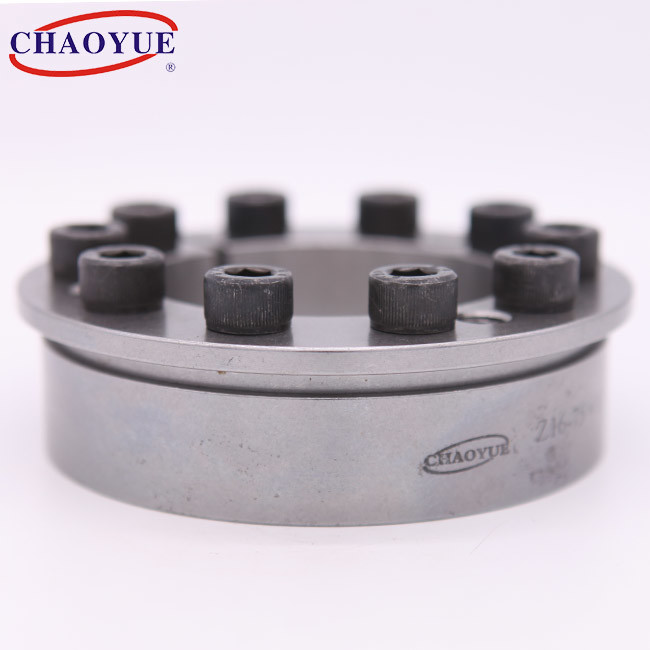

Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock
Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock

Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z16
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 10.00 - 1200.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 20 - 600 Mm Outer Diameter: 47 - 710 Mm
Thickness: 23 - 113 Mm Torque: 0.28 - 964 KN.m
Bolt: M6 - M24 Weight: 0.26 - 104 Kg
Highlight:

Z16 Standard sleeve type expansion joint

,

Thickness 113mm sleeve type expansion joint

,

Thickness 113mm collar shaft clamp

Product Description

Z16 Standard Steel Keyless Power Lock Device



Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock 0





Mounting Example



Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock 1





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 L3 L4 d1 n Torque
[kN·m]		 Axial Force
[kN]
20 47 29 23 17 20 3 M6 6 0.28 28 185 92 17 0.26
22 47 29 23 17 20 3 M6 6 0.31 28 168 92 17 0.25
24 50 29 23 17 20 3 M6 6 0.34 28 154 87 17 0.28
25 50 29 23 17 20 3 M6 6 0.35 28 148 87 17 0.3
28 55 29 23 17 20 3 M6 8 0.52 37 176 105 17 0.32
30 55 29 23 17 20 3 M6 8 0.56 37 164 105 17 0.31
35 60 29 23 17 20 3 M6 9 0.74 42 158 109 17 0.34
40 65 29 23 17 20 3 M6 10 0.93 46 154 111 17 0.38
45 75 36 28 20 24 4 M8 8 1.56 69 170 122 41 0.64
50 80 36 28 20 24 4 M8 9 2 78 172 129 41 0.69
55 85 36 28 20 24 4 M8 10 2.4 86 173 135 41 0.75
60 90 36 28 20 24 4 M8 10 2.6 86 159 127 41 0.8
65 95 36 28 20 24 4 M8 12 3.4 104 176 145 41 0.85
70 110 44 34 24 29 5 M10 10 4.8 137 179 138 83 1.56
75 115 44 34 24 29 5 M10 10 5.15 137 167 132 83 1.65
80 120 44 34 24 29 5 M10 11 6.05 151 172 139 83 1.73
85 125 44 34 24 29 5 M10 12 7 164 177 145 83 1.83
90 130 44 34 24 29 5 M10 12 7.4 164 167 140 83 1.91
95 135 44 34 24 29 5 M10 12 7.8 164 158 135 83 1.99
100 145 50 38 28 33 5 M12 11 10.3 207 166 135 145 2.68
110 155 50 38 28 33 5 M12 11 11.4 207 151 126 145 2.9
120 165 50 38 28 33 5 M12 14 15.8 263 176 151 145 3.1
130 180 55 43 33 38 5 M12 16 19.5 301 161 134 145 4.25
140 190 55 43 33 38 5 M12 16 21 301 150 127 145 4.5
150 200 55 43 33 38 5 M12 18 25.4 338 157 136 145 4.8
160 210 55 43 33 38 5 M12 20 30 376 164 144 145 5
170 225 63 49 38 43 5 M14 16 35 412 150 128 230 6.8
180 235 63 49 38 43 5 M14 18 41.8 464 159 138 230 7.1
190 250 71 57 46 51 5 M14 21 51.4 541 148 125 230 9.6
200 260 71 57 46 51 5 M14 24 62 619 161 137 230 10
220 285 77 61 50 55 5 M16 20 78 714 156 133 355 12.7
240 305 77 61 50 55 5 M16 21 92 770 154 137 355 13.8
260 325 77 61 50 55 5 M16 24 112 860 159 140 355 14.8
280 355 91 72 60 65 5 M18 24 145 1034 151 129 485 22.2
300 375 91 72 60 65 5 M18 27 175 1164 158 137 485 23.6
320 405 105 85 72 77 5 M20 27 242 1510 162 137 690 33.4
340 425 105 85 72 77 5 M20 27 257 1510 153 131 690 35.3
360 455 121 99 84 89 5 M22 24 338 1880 156 131 930 49
380 475 121 99 84 89 5 M22 24 360 1890 148 126 930 51.5
400 495 121 99 84 89 5 M22 28 439 2193 163 140 930 53.8
420 515 121 99 84 89 5 M22 30 494 2350 167 145 930 56.3
440 545 137 113 96 101 5 M24 32 566 2572 153 130 1200 74.8
460 565 137 113 96 101 5 M24 32 592 2572 147 126 1200 77.8
480 585 137 113 96 101 5 M24 32 617 2572 141 121 1200 81
500 605 137 113 96 101 5 M24 36 723 2893 152 132 1200 84
520 630 137 113 96 101 5 M24 36 752 2893 146 128 1200 91.6
540 650 137 113 96 101 5 M24 36 781 2893 141 131 1200 94.6
560 670 137 113 96 101 5 M24 40 900 3215 151 133 1200 97.9
580 690 137 113 96 101 5 M24 40 932 3215 145 129 1200 101
600 710 137 113 96 101 5 M24 40 964 3215 141 125 1200 104
