Keyless 36mm ID 38kN Axial Force Sleeve Expansion Joint Steel
Keyless 36mm ID 38kN Axial Force Sleeve Expansion Joint Steel Keyless 36mm ID 38kN Axial Force Sleeve Expansion Joint Steel Keyless 36mm ID 38kN Axial Force Sleeve Expansion Joint Steel Keyless 36mm ID 38kN Axial Force Sleeve Expansion Joint Steel

Keyless 36mm ID 38kN Axial Force Sleeve Expansion Joint Steel

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z22
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 8.00 - 40.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Diameter: 18 - 90 Mm Outer Diameter: 40 - 125 Mm
Thickness: 18 - 35 Mm Torque: 0.2 - 6.9 KN.m
Bolt: M6 - M10 Weight: 0.16 - 1.25 Kg
Highlight:

36mm ID sleeve expansion joint

,

38kN Axial Force sleeve expansion joint

,

38kN Axial Force threaded clamp collar

Product Description

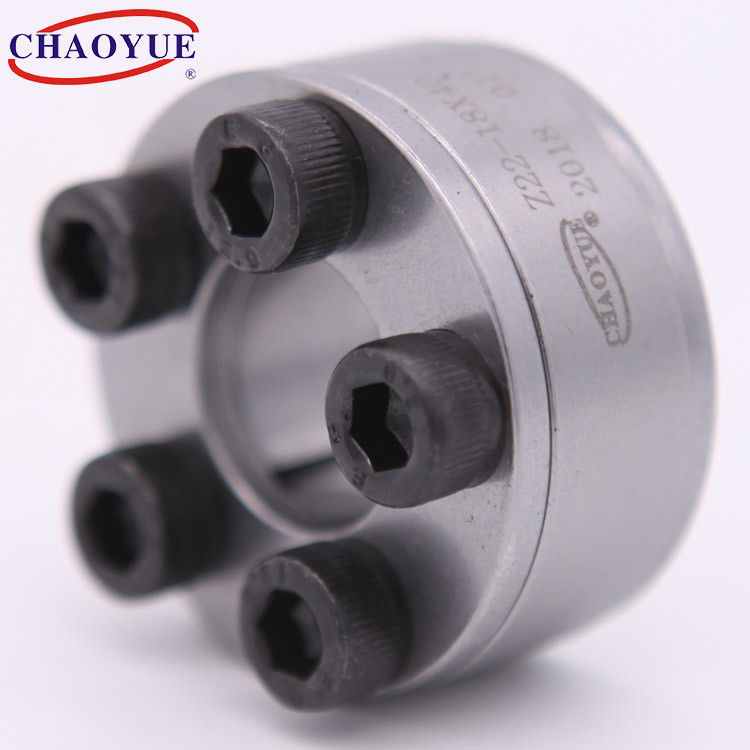

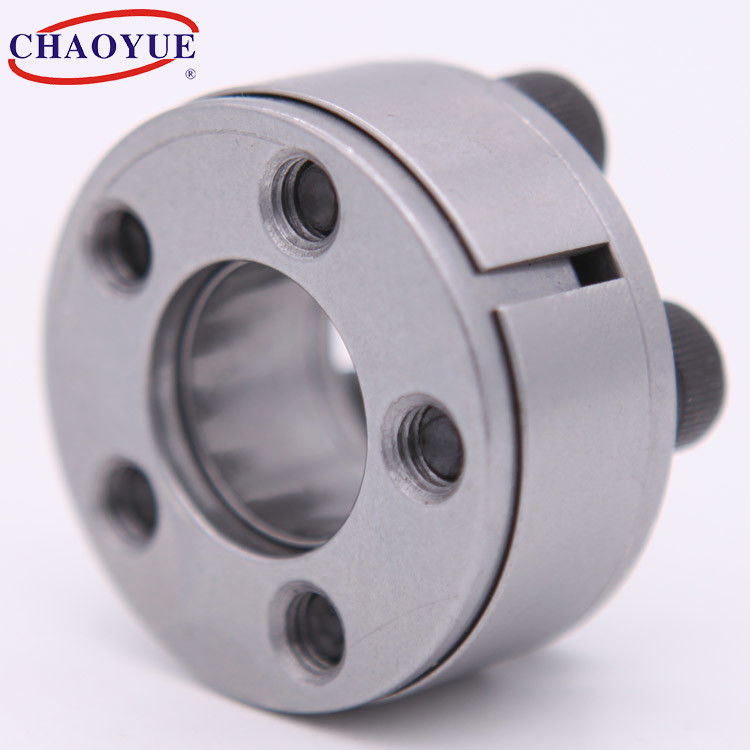

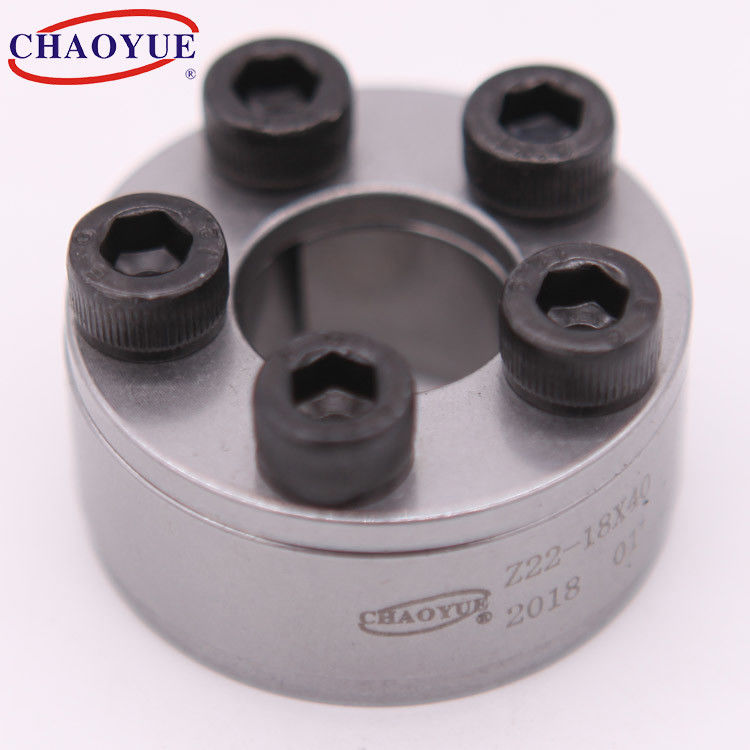

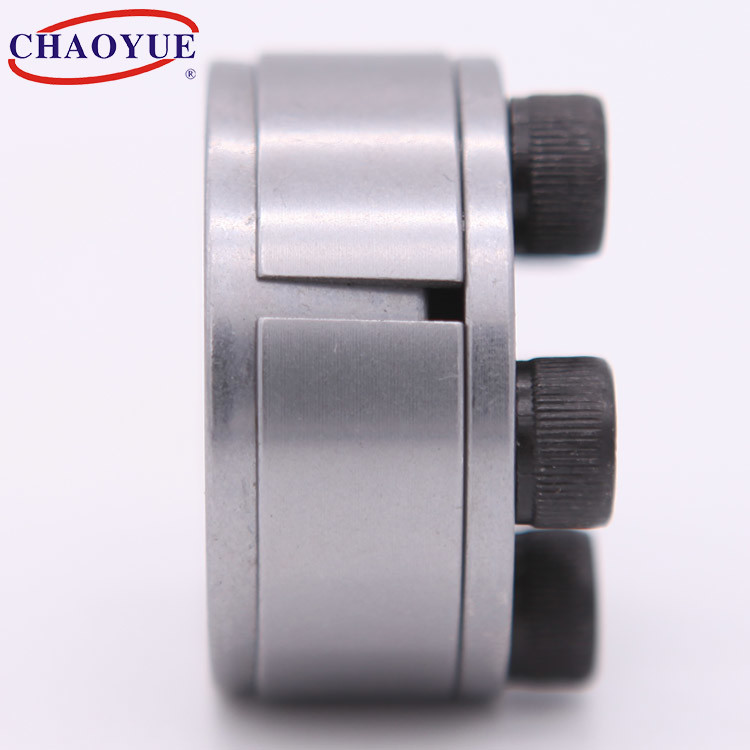

Z22 Keyless Shaft Wheel Connect Locking Assembly



Keyless 36mm ID 38kN Axial Force Sleeve Expansion Joint Steel 0





Mounting Example



Keyless 36mm ID 38kN Axial Force Sleeve Expansion Joint Steel 1





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 d1 n Axial Force
[kN]		 Torque
[kN·m]
18 40 24 18 15 M6 5 22 0.2 260 14 0.16
19 41 24 18 15 M6 5 22 0.21 255 14 0.18
20 42 24 18 15 M6 6 26 0.26 280 14 0.19
22 44 24 18 15 M6 6 26 0.29 260 14 0.19
24 46 24 18 15 M6 6 26 0.31 230 14 0.2
25 47 24 18 15 M6 6 26 0.33 270 14 0.2
28 50 24 18 15 M6 8 35 0.49 250 14 0.24
30 52 24 18 15 M6 8 35 0.52 230 14 0.24
32 54 24 18 15 M6 8 35 0.56 200 14 0.25
35 57 28 22 18 M6 9 38 0.68 190 14 0.26
36 59 28 22 18 M6 9 38 0.7 200 14 0.26
38 60 28 22 18 M6 10 43 0.83 190 14 0.27
40 62 28 22 18 M6 10 43 0.87 225 14 0.27
42 70 36 28 24 M8 8 64 1.36 210 35 0.38
45 73 36 28 24 M8 8 64 1.45 195 35 0.45
48 76 36 28 24 M8 8 64 1.55 190 35 0.46
50 78 36 28 24 M8 8 64 1.61 195 35 0.48
55 83 36 28 24 M8 9 72 2 190 35 0.49
56 84 36 28 24 M8 9 72 2.03 195 35 0.5
60 88 36 28 24 M8 10 80 2.42 190 35 0.55
63 91 36 28 24 M8 10 80 2.54 190 35 0.56
65 93 36 28 24 M8 10 80 2.62 180 35 0.58
70 105 45 35 31 M10 9 114 4 200 70 1.01
75 110 45 35 31 M10 10 128 4.8 205 70 1.06
80 115 45 35 31 M10 10 128 5.1 190 70 1.12
85 120 45 35 31 M10 10 128 5.45 180 70 1.19
90 125 45 35 31 M10 10 153 6.9 205 70 1.25
