Home ProductsKeyless Locking AssemblySpring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve
Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve
Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve

Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z14
Payment & Shipping Terms:
Minimum Order Quantity: 30 PCs
Price: USD 3.00 - 20.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 5000 pcs per month
Contact Now

Detail Information
Inner Diameter: 14 - 65 Mm Outer Diameter: 25 - 72 Mm
Thickness: 26 - 35 Mm Torque: 64 - 1265 N.m
Bolt: M4 - M8 Weight: 0.091 - 0.46
Highlight:

72mm OD expansion joint sleeve

,

1265N.m Torque expansion joint sleeve

,

72mm OD shaft hub connection

Product Description

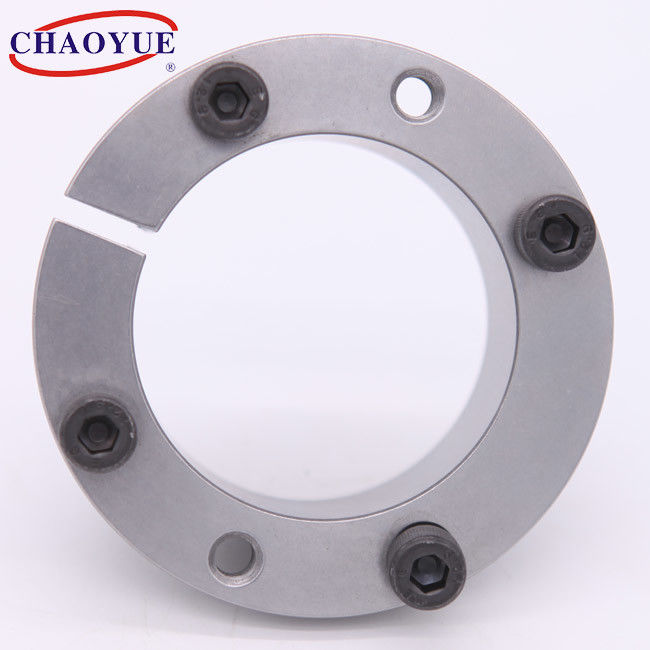

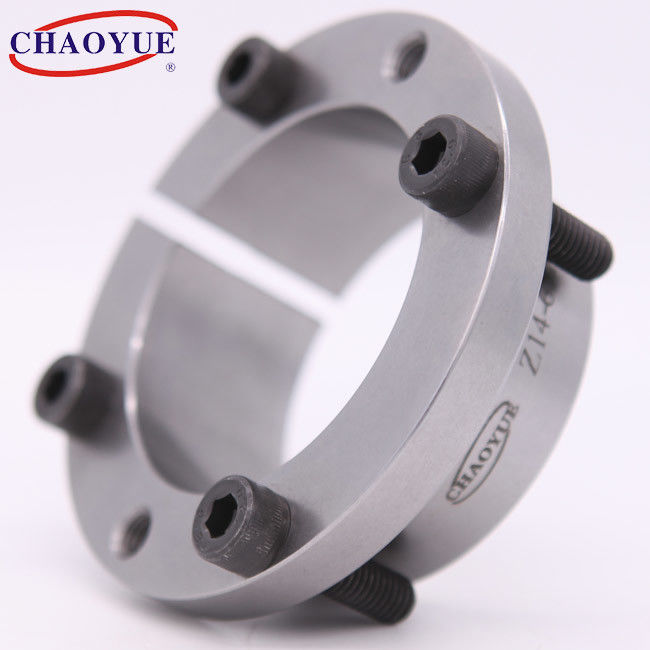

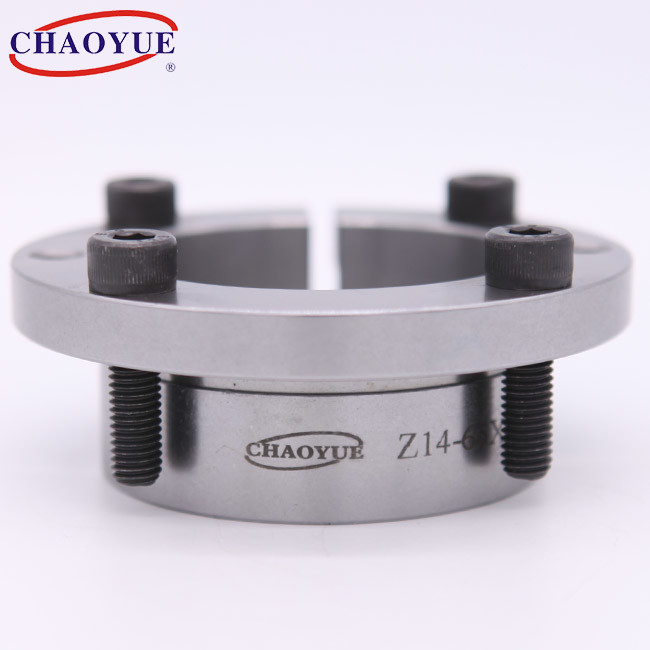

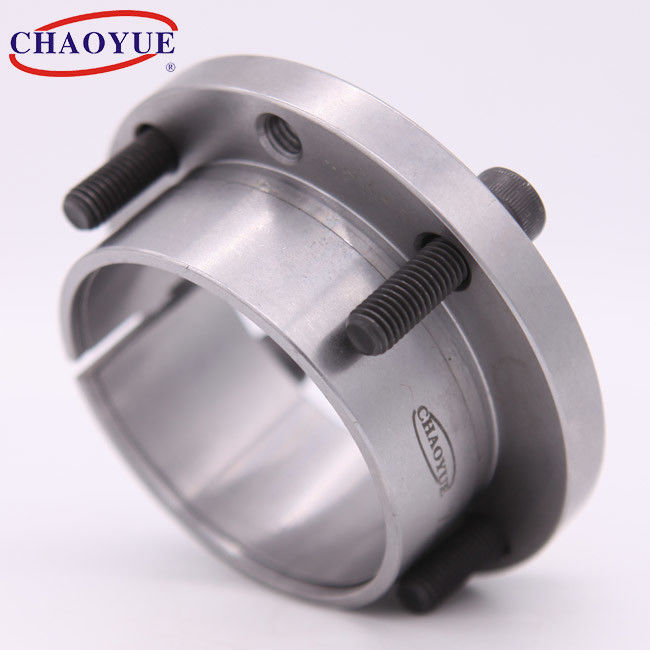

Z14 Spring Loaded Clamp Mechanism Keyless Locking Ring



Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve 0





Mounting Example



Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve 1





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D D1 D2 L L1 L2 L3 d1 n Torque
[N·m]		 Axial Force
[kN]
14 25 42 33 30 26 20 16 M4 4 64 9.2 109 61 2.9 0.091
16 25 42 33 30 26 20 16 M4 4 74 9.2 95 61 2.9 0.082
18 25 42 33 30 26 20 16 M4 4 82 9.2 85 61 2.9 0.072
19 25 42 33 30 26 20 16 M4 4 87 9.2 80 61 2.9 0.068
20 30 50 39 31 26 20 16 M5 4 150 15 124 82 6 0.113
22 30 50 39 31 26 20 16 M5 4 165 15 113 82 6 0.11
24 30 50 39 31 26 20 16 M5 4 180 15 104 82 6 0.088
25 36 55 45 31 26 20 16 M5 4 187 15 100 69 6 0.144
28 36 55 45 31 26 20 16 M5 4 210 15 89 69 6 0.121
30 36 55 45 31 26 20 16 M5 4 225 15 83 69 6 0.105
32 42 62 51 33 28 20 16 M5 4 240 15 77 59 6 0.2
35 42 62 51 33 28 20 16 M5 4 260 15 71 59 6 0.173
36 42 62 51 33 28 20 16 M5 4 270 15 69 59 6 0.162
38 44 66 54 34 28 20 16 M6 4 400 21.2 93 80 10 0.182
40 48 70 58 34 28 20 16 M6 4 425 21.2 88 73 10 0.223
42 48 70 58 34 28 20 16 M6 4 446 21.2 83 73 10 0.191
45 55 82 67 43 35 25 20 M8 4 875 38.9 115 94 25 0.4
48 55 82 67 43 35 25 20 M8 4 935 38.9 107 94 25 0.35
50 62 89 74 43 35 25 20 M8 4 974 38.9 103 83 25 0.5
55 62 89 74 43 35 25 20 M8 4 1070 38.9 94 83 25 0.41
60 72 99 84 43 35 25 20 M8 4 1165 38.9 86 71 25 0.58
65 72 99 84 43 35 25 20 M8 4 1265 38.9 79 71 25 0.46





Tag:

65mm Outer diameter Keyless Locking Assembly

28mm OD shaft collar clamp

690N.M Keyless Locking Assembly
