Home ProductsKeyless Locking AssemblyBloated Tight Set m2.5 bolt Keyless Locking Assembly 10mm Shaft Clamp

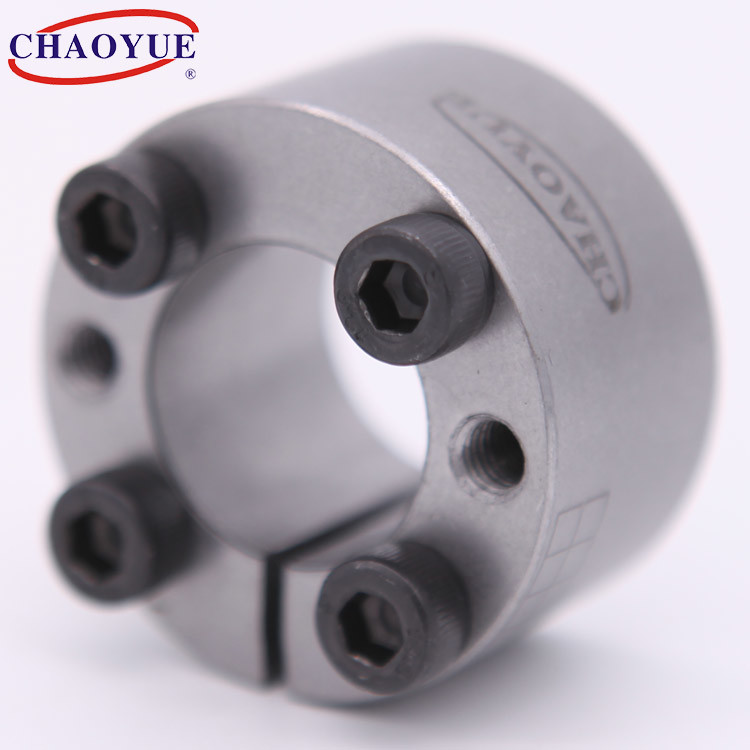

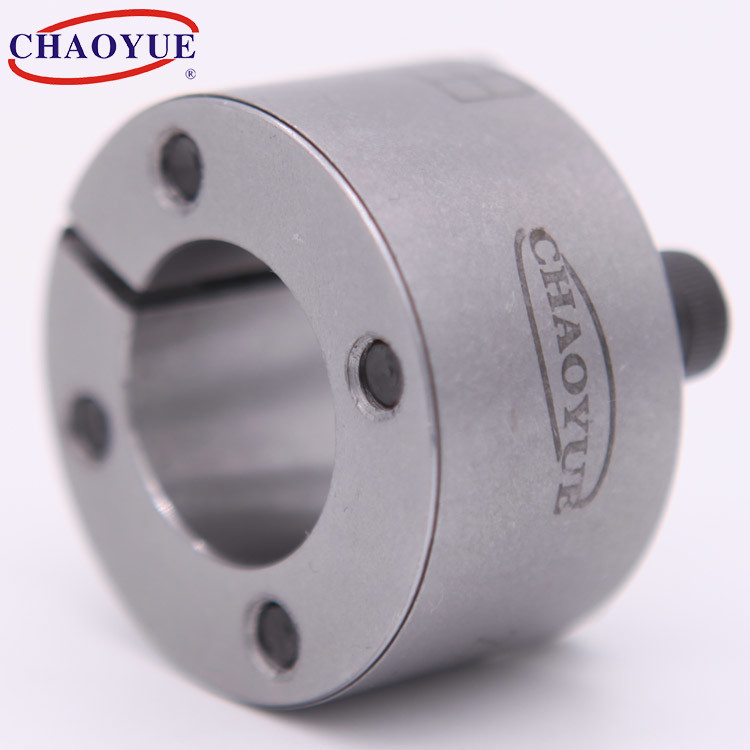

Bloated Tight Set m2.5 bolt Keyless Locking Assembly 10mm Shaft Clamp
Bloated Tight Set m2.5 bolt Keyless Locking Assembly 10mm Shaft Clamp Bloated Tight Set m2.5 bolt Keyless Locking Assembly 10mm Shaft Clamp Bloated Tight Set m2.5 bolt Keyless Locking Assembly 10mm Shaft Clamp

Bloated Tight Set m2.5 bolt Keyless Locking Assembly 10mm Shaft Clamp

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z21
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 4.00 - 15.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Diameter: 10 - 50 Mm Outer Diameter: 20 - 80 Mm
Thickness: 13 - 36 Mm Torque: 14.1 - 1610 N.m
Bolt: M2.5 - M8 Weight: 0.019 - 0.73 Kg
Highlight:

m2.5 bolt Keyless Locking Assembly

,

10mm Keyless Locking Assembly

,

m2.5 bolt 10mm shaft clamp

Product Description

Z21 Expansion Coupling Sleeve Bloated Tight Set



Bloated Tight Set m2.5 bolt Keyless Locking Assembly 10mm Shaft Clamp 0

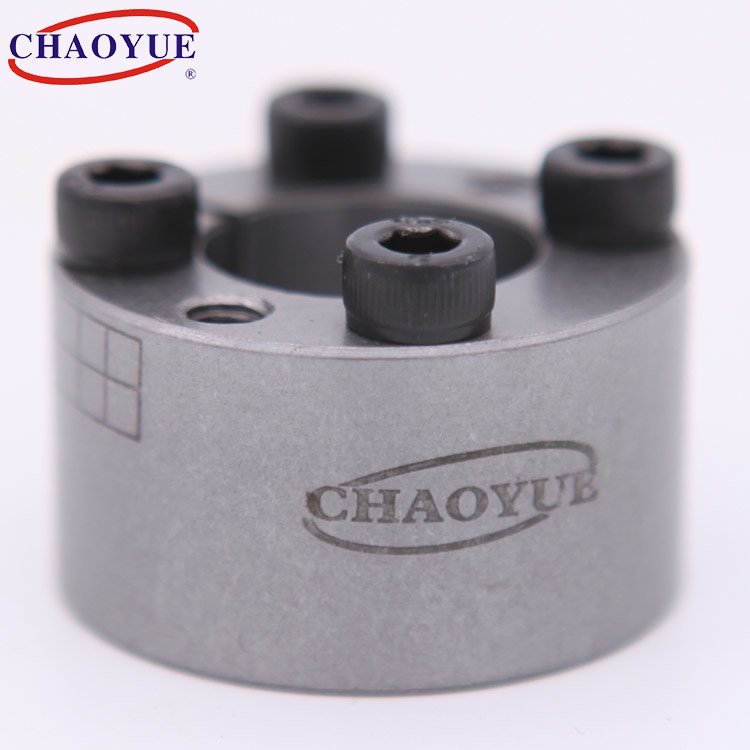

Mounting Example

Bloated Tight Set m2.5 bolt Keyless Locking Assembly 10mm Shaft Clamp 1

Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 d1 n Torque
[N·m]		 Axial Force
[N]
10 20 15.5 13 M2.5 4 14.1 2900 0.85 0.019
11 22 15.5 13 M2.5 4 15.3 2900 0.85 0.022
12 22 15.5 13 M2.5 4 17.1 2900 0.85 0.024
14 26 20 17 M3 4 31 4380 1.68 0.039
15 28 20 17 M3 4 32.5 4380 1.68 0.044
16 32 21 17 M4 4 61 7700 3.5 0.068
17 35 25 21 M4 4 63 7700 3.5 0.09
18 35 25 21 M4 4 68 7700 3.5 0.093
19 35 25 21 M4 4 72 7700 3.5 0.098
20 38 26 21 M5 4 126 12600 6.6 0.12
22 40 26 21 M5 4 135 12600 6.6 0.13
24 47 32 26 M6 4 207 17900 11.8 0.2
25 47 32 26 M6 4 216 17900 11.8 0.22
28 50 32 26 M6 6 365 26120 11.8 0.24
30 55 32 26 M6 6 387 26120 11.8 0.26
32 55 32 26 M6 6 421 26120 11.8 0.27
35 60 37 31 M6 8 633 34990 11.8 0.37
38 65 37 31 M6 8 667 34990 11.8 0.41
40 65 37 31 M6 8 696 34990 11.8 0.42
42 75 44 36 M8 6 1011 48000 28.6 0.63
45 75 44 36 M8 6 1095 48000 28.6 0.7
48 80 44 36 M8 8 1560 64270 28.6 0.71
50 80 44 36 M8 8 1610 64270 28.6 0.73
