40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings

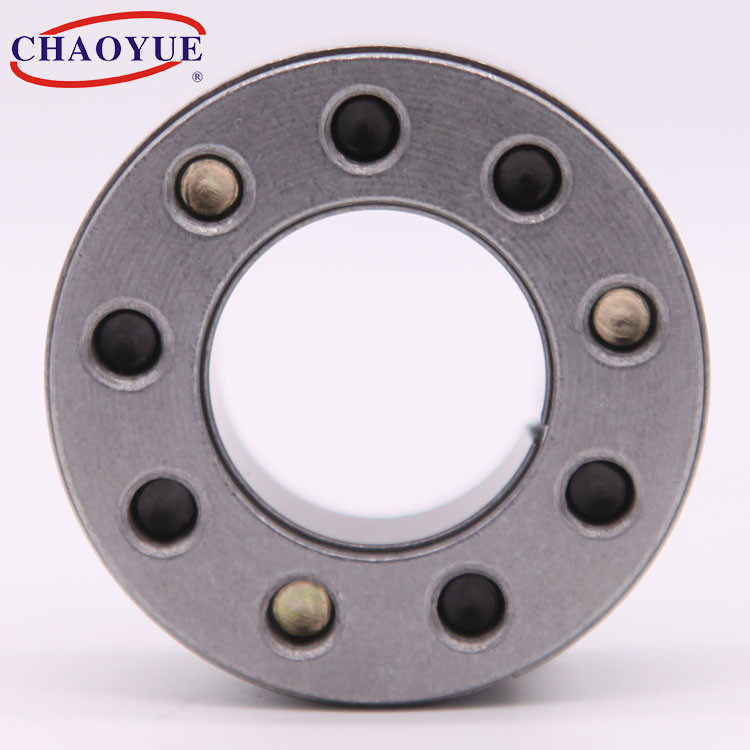

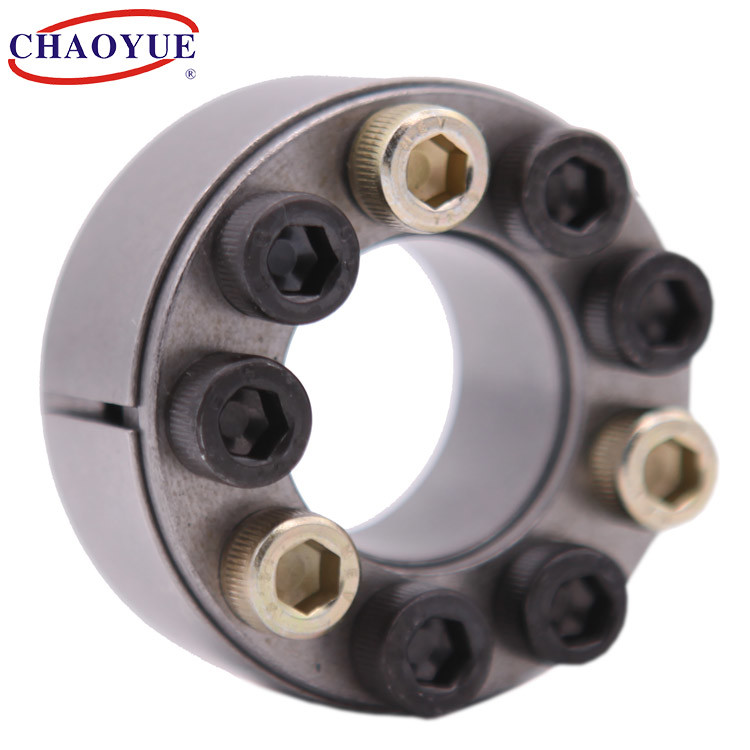

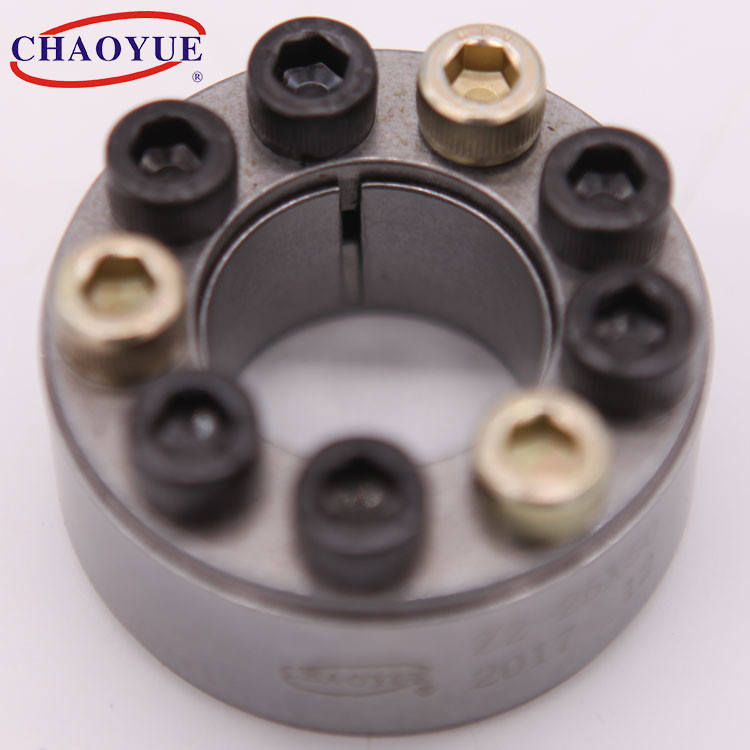

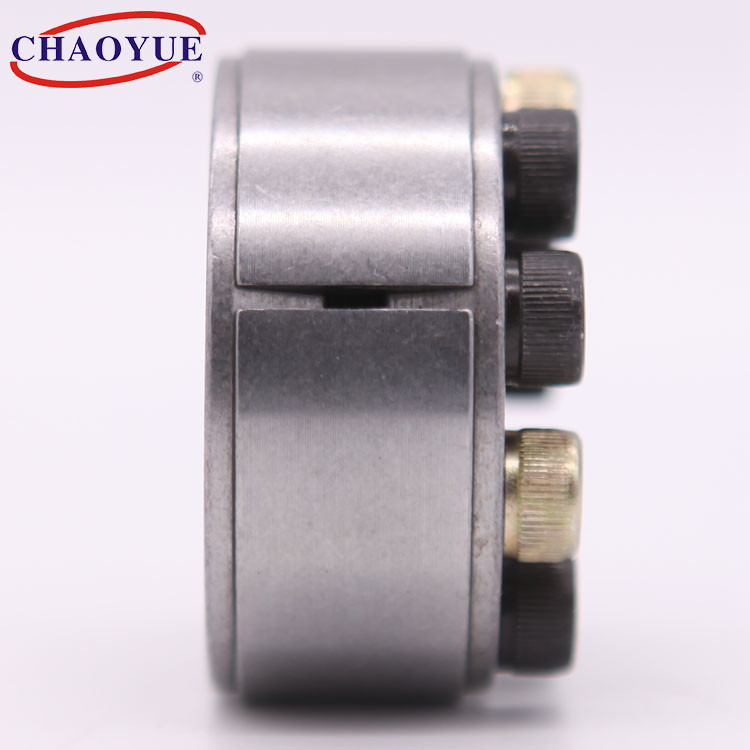

40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings 40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings 40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings 40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings

40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z2
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 5.00 - 3300.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 20 - 1000 Mm Outer Diameter: 47 - 1110 Mm
Thickness: 20 - 102 Mm Torque: 0.27 - 2000 KN.m
Bolt: M6 - M24 Weight: 0.24 - 146 Kg
Highlight:

40kN axial force keyless taper lock bushings

,

26mm thickness keyless taper lock bushings

,

26mm thickness keyless shaft locking devices

Product Description

Z2 Standard Keyless Locking Assembly Power Lock Device



40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings 0





Mounting Example



40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings 1

Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 d1 n Axial Force
[kN]		 Toruqe
[kN.m]
20 47 26 20 17 M6 8 27 0.27 210 90 14 0.24
22 47 26 20 17 M6 8 27 0.3 195 90 14 0.23
25 50 26 20 17 M6 9 30 0.38 190 95 14 0.25
28 55 26 20 17 M6 10 33 0.47 185 95 14 0.3
30 55 26 20 17 M6 10 33 0.5 175 95 14 0.29
35 60 26 20 17 M6 12 40 0.7 180 105 14 0.32
38 63 26 20 17 M6 14 46 0.88 185 105 14 0.33
40 65 26 20 17 M6 14 46 0.92 180 110 14 0.34
42 72 32 24 20 M8 12 65 1.36 200 117 35 0.48
45 75 32 24 20 M8 12 72 1.62 210 125 35 0.57
50 80 32 24 20 M8 12 71 1.77 190 115 35 0.6
55 85 32 24 20 M8 14 83 2.27 200 130 35 0.63
60 90 32 24 20 M8 14 83 2.47 180 120 35 0.69
65 95 32 24 20 M8 16 93 3.04 190 130 35 0.73
70 110 38 28 24 M10 14 132 4.6 210 130 70 1.26
75 115 38 28 24 M10 14 131 4.9 195 125 70 1.33
80 120 38 28 24 M10 14 131 5.2 180 120 70 1.4
85 125 38 28 24 M10 16 148 6.3 195 130 70 1.49
90 130 38 28 24 M10 16 147 6.6 180 125 70 1.53
95 135 38 28 24 M10 18 167 7.9 195 135 70 1.62
100 145 45 33 29 M12 14 192 9.6 195 135 125 2.01
105 150 45 33 29 M12 14 190 9.98 185 130 125 2.1
110 155 45 33 29 M12 14 191 10.5 180 125 125 2.15
120 165 45 33 29 M12 16 218 13.1 185 135 125 2.35
125 170 45 33 29 M12 18 220 13.78 180 130 125 2.95
130 180 50 38 34 M12 20 272 17.6 165 120 125 3.51
140 190 50 38 34 M12 22 298 20.9 165 125 125 3.85
150 200 50 38 34 M12 24 324 24.2 170 125 125 4.07
160 210 50 38 34 M12 26 350 28 170 130 125 4.3
170 225 58 44 38 M14 22 386 32.8 160 120 190 5.78
180 235 58 44 38 M14 24 420 37.8 165 125 190 6.05
190 250 66 52 46 M14 28 490 46.5 150 115 190 8.25
200 260 66 52 46 M14 30 525 52.5 150 115 190 8.65
210 275 72 56 50 M16 24 599 62.89 151 115 295 10.1
220 285 72 56 50 M16 26 620 68 150 115 295 11.22
240 305 72 56 50 M16 30 715 85.5 160 125 295 12.2
250 315 72 56 50 M16 32 768 96 162 125 295 12.7
260 325 72 56 50 M16 34 800 104 165 130 295 13.2
280 355 84 66 60 M18 32 915 128 145 115 405 19.2
300 375 84 66 60 M18 36 1020 153 150 120 405 20.5
320 405 98 78 72 M20 36 1310 210 150 120 580 29.6
340 425 98 78 72 M20 36 1310 224 145 115 580 31.1
360 455 114 90 84 M22 34 1630 294 145 115 780 42.2
380 475 114 90 84 M22 36 1620 308 135 110 780 44
400 495 114 90 84 M22 36 1610 322 130 105 780 46
420 515 114 90 84 M22 40 1780 374 135 110 780 50
450 555 126 102 96 M24 40 2050 461.25 124 100 1000 65
480 585 126 102 96 M24 42 2160 518.4 124 100 1000 71
500 605 126 102 96 M24 44 2240 560 123 100 1000 72.6
530 640 126 102 96 M24 45 2330 617 121 100 1000 83.6
560 670 126 102 96 M24 48 2440 680 120 100 1000 85
600 710 126 102 96 M24 50 2580 775 118 100 1000 91
630 740 126 102 96 M24 52 2680 844 117 105 1000 94
670 780 126 102 96 M24 56 2820 944 116 100 1000 101
710 820 126 102 96 M24 60 2970 1054 115 100 1000 106
750 860 126 102 96 M24 62 3130 1173 115 100 1000 112
800 910 126 102 96 M24 66 3260 1300 112 100 1000 118
850 960 126 102 96 M24 70 3500 1487 113 100 1000 125
900 1010 126 102 96 M24 75 3680 1650 112 100 1000 132
950 1060 126 102 96 M24 80 3870 1838 112 100 1000 139
1000 1110 126 102 96 M24 82 4000 2000 110 100 1000 146
