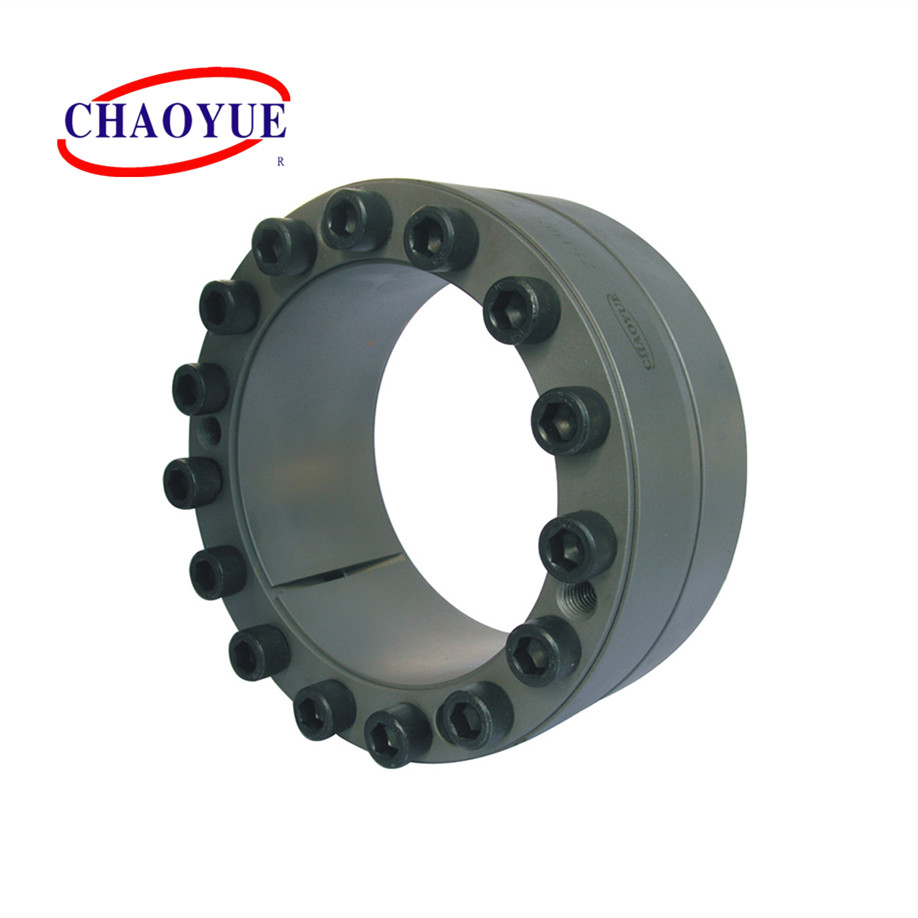

Z5 Heavy Load Standard Shaft Keyless Power Locking Assembly Device

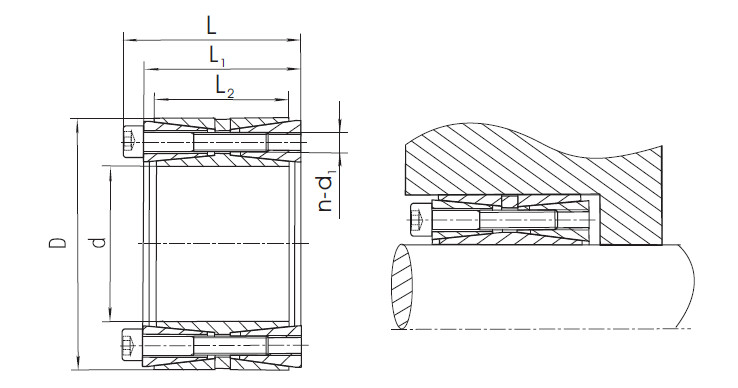

Mounting Example



Heavy Load 222kN.M 120mm Thickness Shaft Locking Devices Keyless Coupling 0





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 d1 n Axial Force
[kN]		 Toruqe
[kN.m]
100 145 77 65 60 M12 10 288 14.4 192 132 145 4.1
110 155 77 65 60 M12 10 288 15.8 175 123 145 4.4
120 165 77 65 60 M12 12 346 20.8 192 139 145 4.8
130 180 86 74 68 M12 15 433 28.1 193 139 145 6.5
140 190 86 74 68 M12 18 519 36.3 214 157 145 7
150 200 86 74 68 M12 18 519 39 200 150 145 7.4
160 210 86 74 68 M12 21 606 48.5 219 167 145 7.8
170 225 95 81 75 M14 18 712 60.6 215 162 230 10
180 235 95 81 75 M14 18 712 64.1 203 155 230 10.6
190 250 108 94 88 M14 20 792 75.2 178 135 230 14.3
200 260 108 94 88 M14 24 950 95 203 156 230 15
210 275 120 104 98 M16 18 970 102 187 142 355 17.5
220 285 120 104 98 M16 18 990 109 183 141 355 19.8
240 305 120 104 98 M16 24 1318 158 222 176 355 21.4
250 315 120 104 98 M16 24 1340 167.5 215 170 355 22
260 325 120 104 98 M16 25 1370 173 215 172 355 23
280 355 144 126 120 M18 24 1590 222.5 188 149 485 35.2
300 375 144 126 120 M18 25 1650 248 183 146 485 37.4
320 405 162 142 135 M20 25 2140 344 192 152 690 51.3
340 425 162 142 135 M20 25 2140 365 181 144 690 54.1
360 455 187 165 158 M22 25 2670 480 176 139 930 75.4
380 475 187 165 158 M22 25 2670 508 166 133 930 79
400 495 187 165 158 M22 25 2670 535 158 128 930 82.8
420 515 187 165 158 M22 30 3200 673 181 147 930 86.5
450 555 204 180 172 M24 30 3700 832.5 175 142 1200 112
480 585 204 180 172 M24 32 3950 948 175 143 1200 119
500 605 204 180 172 M24 32 3950 988 168 139 1200 123
530 640 227 200 190 M27 30 4320 1145 157 130 1600 151
560 670 227 200 190 M27 30 4320 1210 148 124 1600 160
600 710 227 200 190 M27 32 4610 1380 147 124 1600 170
