Home ProductsKeyless Locking AssemblyLight Load 690N.M 65mm Outer diameter Keyless Locking Assembly

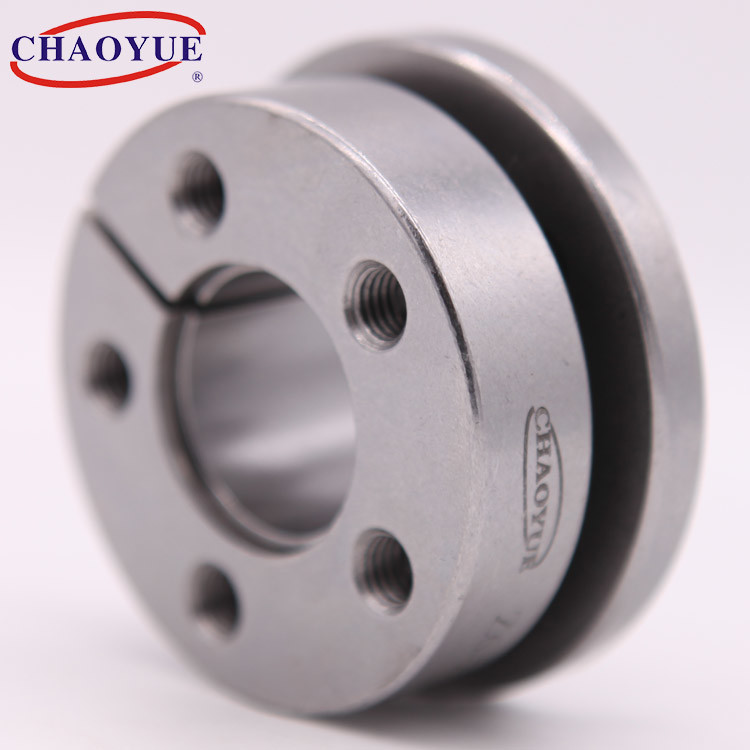

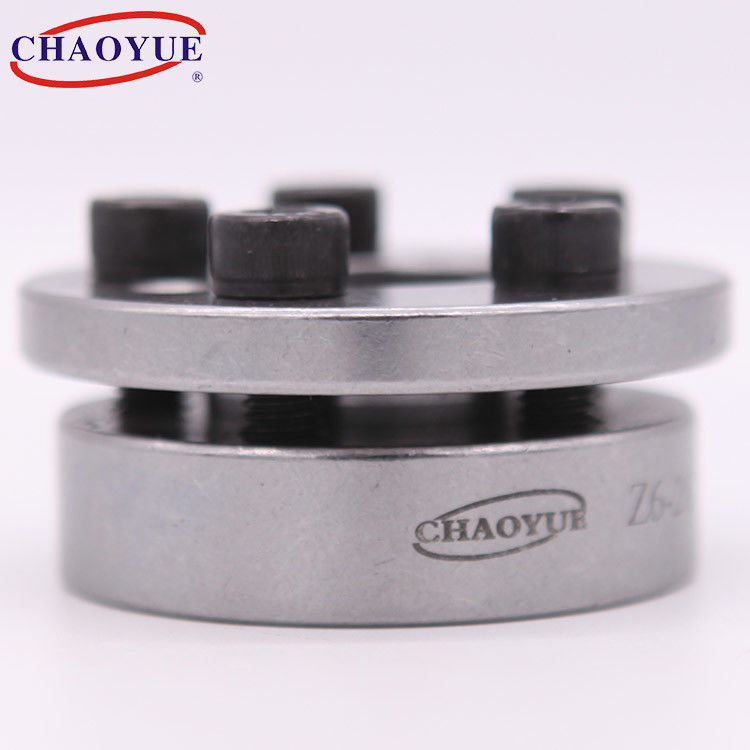

Light Load 690N.M 65mm Outer diameter Keyless Locking Assembly
Light Load 690N.M 65mm Outer diameter Keyless Locking Assembly Light Load 690N.M 65mm Outer diameter Keyless Locking Assembly Light Load 690N.M 65mm Outer diameter Keyless Locking Assembly Light Load 690N.M 65mm Outer diameter Keyless Locking Assembly

Light Load 690N.M 65mm Outer diameter Keyless Locking Assembly

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z6
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 5.00 - 15.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 5000 pcs per month
Contact Now

Detail Information
Inner Diameter: 14 - 50 Mm Outer Diameter: 55 - 80 Mm
Thickness: 30 - 33 Mm Torque: 127 -1830 N.m
Bolt: M8 Weight: 0.48 - 0.73 Kg
Highlight:

65mm Outer diameter Keyless Locking Assembly

,

690N.M Keyless Locking Assembly

,

690N.M axle collar clamp

Product Description

Z6 Light Load Power Lock Customer Design Locking Device

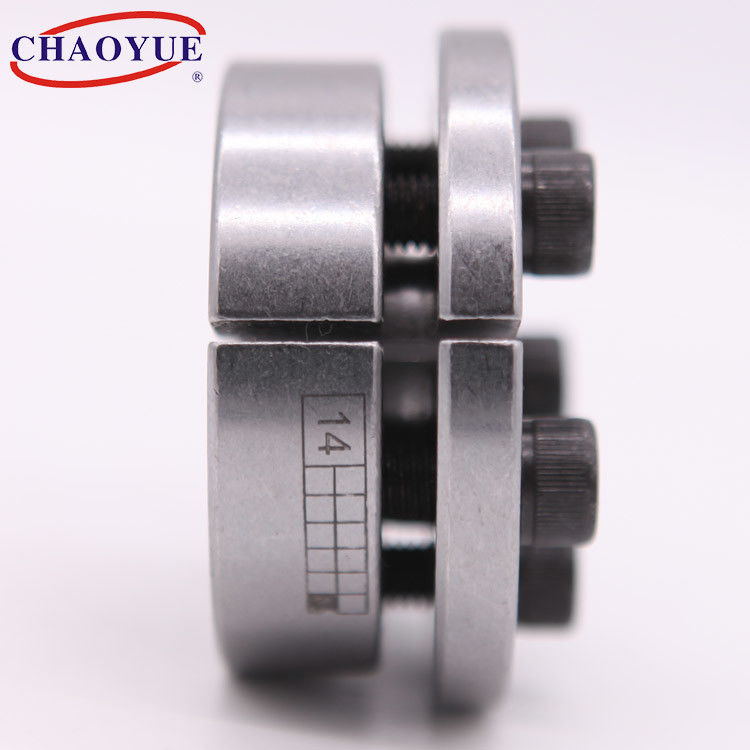

Light Load 690N.M 65mm Outer diameter Keyless Locking Assembly 0





Mounting Example

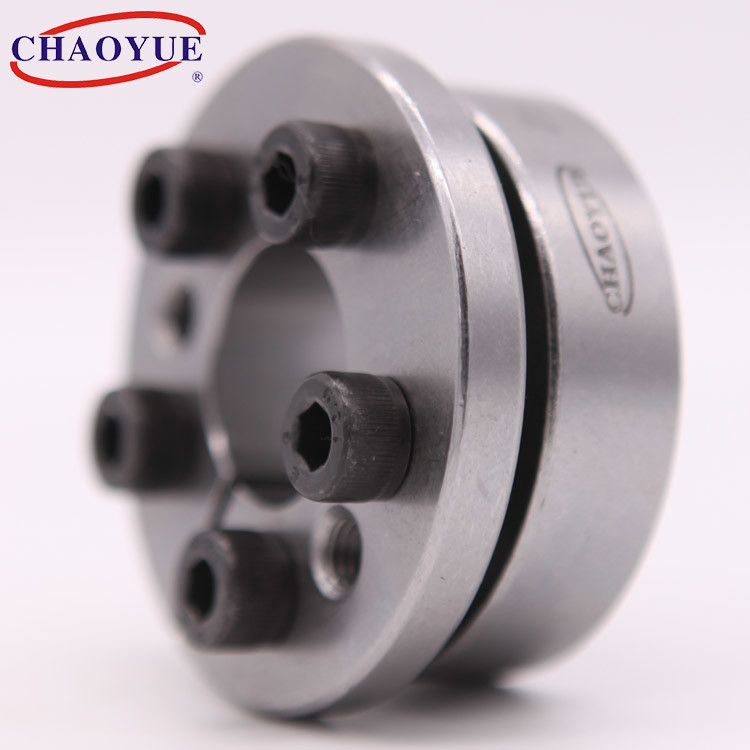

Light Load 690N.M 65mm Outer diameter Keyless Locking Assembly 1

Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D D1 L L1 L2 L3 d1 n Axial Force
[kN]		 Toruqe
[N.m]
14 55 62 38 30 22 17 M8 3 18 127 208 52.5 25 0.48
16 55 62 38 30 22 17 M8 3 18 142 181 52.5 25 0.47
18 55 62 38 30 22 17 M8 3 18 157 161 52.5 25 0.46
19 55 62 38 30 22 17 M8 3 18 165 152 52.5 25 0.46
20 55 62 38 30 22 17 M8 3 18 172 145 52.5 25 0.45
22 55 62 38 30 22 17 M8 3 25.5 285 186 75 35 0.44
24 55 62 38 30 22 17 M8 3 25.5 307 170 75 35 0.42
25 55 62 38 30 22 17 M8 3 25.5 315 163 75 35 0.41
28 55 62 38 30 22 17 M8 3 31.5 435 175 89 41 0.39
30 55 62 38 30 22 17 M8 3 31.5 472 163 89 41 0.37
24 65 72 38 30 22 17 M8 5 37.4 440 244 90 30 0.62
25 65 72 38 30 22 17 M8 5 37.4 460 234 90 30 0.61
28 65 72 38 30 22 17 M8 5 43.6 600 243 105 35 0.58
30 65 72 38 30 22 17 M8 5 43.6 640 227 105 35 0.56
32 65 72 38 30 22 17 M8 5 43.6 690 213 105 35 0.55
35 65 72 38 30 22 17 M8 5 52.5 910 234 126 41 0.51
38 65 72 38 30 22 17 M8 5 52.5 990 216 126 41 0.48
40 65 72 38 30 22 17 M8 5 52.5 1050 205 125 41 0.46
30 80 87 41 33 25 20 M8 7 52.4 780 232 87 30 1.01
32 80 87 41 33 25 20 M8 7 52.4 830 217.5 87 30 0.99
35 80 87 41 33 25 20 M8 7 61 1060 232 102 35 0.96
38 80 87 41 33 25 20 M8 7 61 1150 214 102 35 0.92
40 80 87 41 33 25 20 M8 7 61 1220 203 102 35 0.89
42 80 87 41 33 25 20 M8 7 73.5 1540 233 122 41 0.86
45 80 87 41 33 25 20 M8 7 73.5 1650 217 122 41 0.82
48 80 87 41 33 25 20 M8 7 73.5 1760 203 122 41 0.76
50 80 87 41 33 25 20 M8 7 73.5 1830 195 122 41 0.73
