Home ProductsKeyless Locking AssemblySteel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission
Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission
Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission

Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 40.00 - 470.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 70 - 300 Mm Outer Diameter: 120 - 390 Mm
Thickness: 62 - 136 Mm Torque: 6.85 - 245 KN.m
Bolt: M12 - M20 Weight: 3.3 - 49 Kg
Highlight:

M20 bolt Keyless Locking Assembly

,

1650kN Keyless Locking Assembly

,

1650kN threaded clamp collar

Product Description

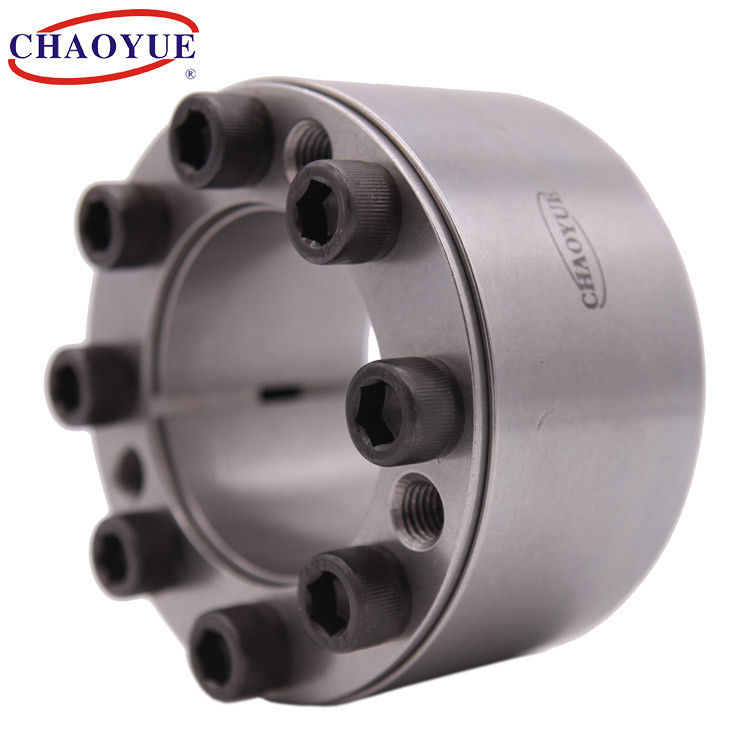

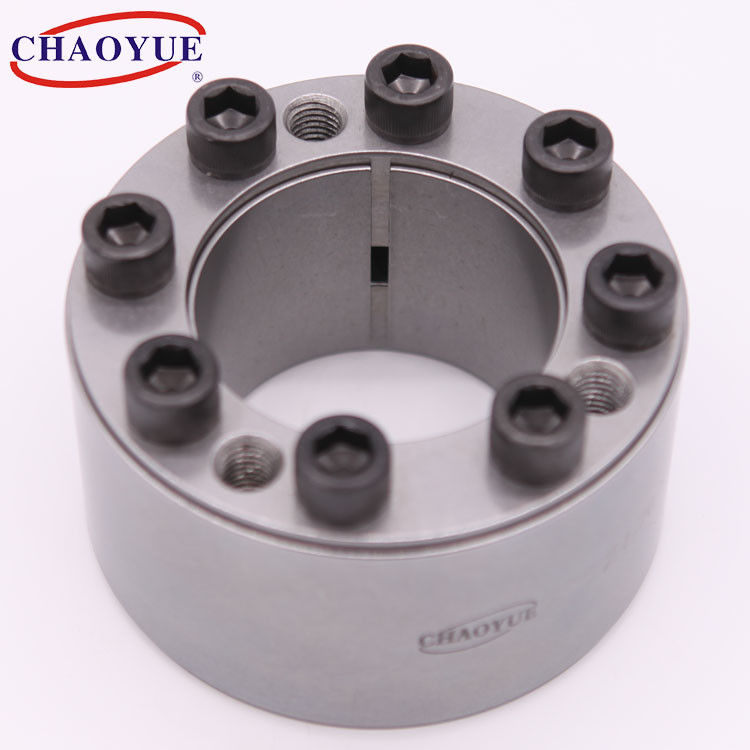

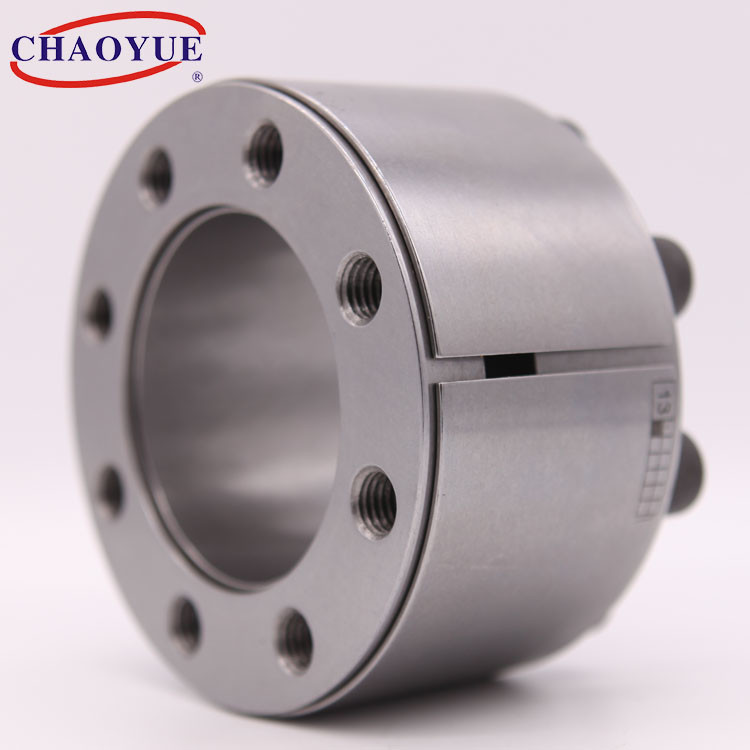

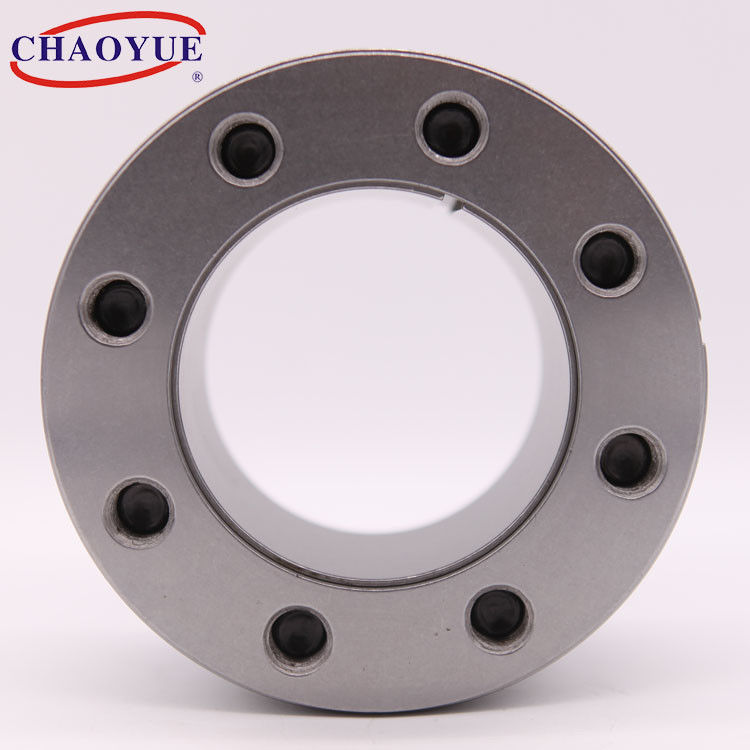

Z4 Steel Bushing Keyless Locking Assembly For Machinery



Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission 0





Mounting Example



Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission 1





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 d1 n Axial Force
[kN]		 Toruqe
[kN.m]
70 120 74 62 56 M12 8 197 6.85 201 117 145 3.3
80 130 74 62 56 M12 12 291 11.65 263 162 145 3.7
90 140 74 62 56 M12 12 290 13 234 150 145 4
100 160 94 80 74 M14 15 389 19.7 213 133 230 7.2
110 170 94 80 74 M14 15 483 22.6 242 157 230 7.7
120 180 94 80 74 M14 15 482 28.9 222 148 230 8.3
125 185 94 80 74 M14 15 430 30 212 143 230 8.5
130 190 94 80 74 M14 15 430 31.2 205 140 230 8.8
140 200 94 80 74 M14 18 574 40.2 227 159 230 9.3
150 210 94 80 74 M14 18 572 42.9 212 152 230 10
160 230 110 94 88 M16 18 800 64 227 158 355 14.9
170 240 110 94 88 M16 18 795 67.8 214 152 355 15.7
180 250 110 94 88 M16 21 923 83 235 170 355 16.4
190 260 110 94 88 M16 21 921 88 223 163 355 17.2
200 270 110 94 88 M16 24 1050 105 242 179 355 18.8
210 290 134 116 110 M18 20 1118 117.3 197 143 485 23
220 300 134 116 110 M18 21 1120 123 189 138 485 27.7
240 320 134 116 110 M18 24 1280 153 198 148 485 29.8
250 330 134 116 110 M18 27 1282 160.2 205 157 485 31
260 340 134 116 110 M18 27 1430 186 205 157 485 32
280 370 156 136 130 M20 24 1650 230 192 145 690 46
300 390 156 136 130 M20 24 1650 245 179 138 690 49
